X-ray Safety Inspection EquipmentFDT-SE5030A
Applicable to
scenic spots, court sent to appear in court, procuratorate, detention center, hospital, sports/concert/conference/promotion activities such as short-term rental, small memorial/art/art gallery, bars and other public places of product safety inspection.
General Specifications
Dimensions: 1690mm (L) × 790mm (W) × 1210mm (H)
Tunnel size: 505mm (W) × 305mm (H)
Conveyor speed: 0.20±0.02m/s
Conveyor height: 752mm
Conveyor belt uniform weight: 80kg
Weight: 225Kg
Storage temperature / humidity:-40℃ ± 3℃ ~ +60℃ ± 2℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:0℃ ± 3℃ ~ + 40℃ ± 2℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.4kVA
Basic Specifications
Penetration: 10mm steel
Wire resolution: 40AWG
Penetration resolution: 24AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm
Pass rate: > 720 PCS /h
Single test dose: ≤1.0μGy
Leakage radiation dose rate: < 0.3μGy/h
System noise: 55dB (A)
X-ray Generator
Generation direction: From Bottom to Top
Tube voltage: 80kV
Tube current: 0.6mA
Cooling mode / duty cycle: sealed oil / 100%
Generation angle: 60 °
Image processing system
X-ray sensor: L-shaped photodiode detector
Monitor :22 "Philips HD LCD monitor
Feature

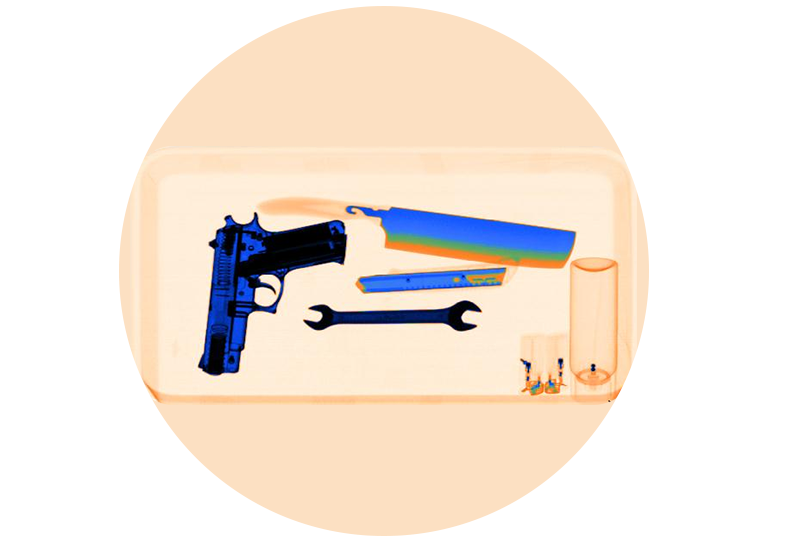

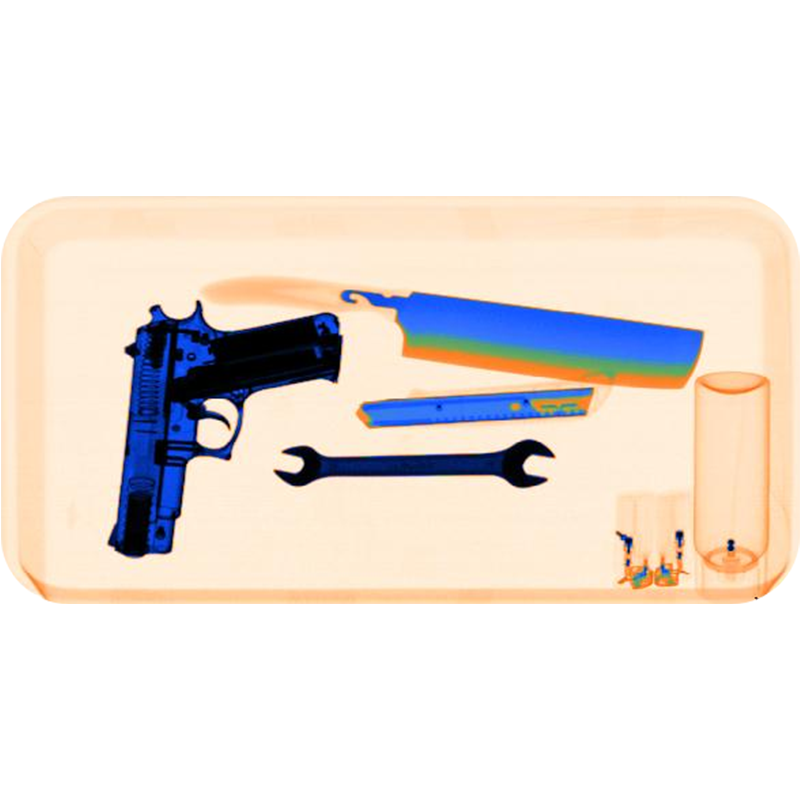

Image processing functions:
False color/black and white, super enhancement, edge enhancement, local enhancement, gray scanning, image recovery, reverse display, continuous magnification, local magnification, image pullback, image saving (greater than 2000 images), etc.
Auxiliary functions:
One-key switch, penetration alarm, power-on self-test, hardware maintenance diagnostic tips, etc.
Quality
● International brand electrical components
● Industrial PLC circuit control, electromagnetic compatibility special requirements
● Capacitor integral analog-digital conversion, the image is clear and subtle
● Industrial computer, the system is stable and reliable for a long time
● Human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background

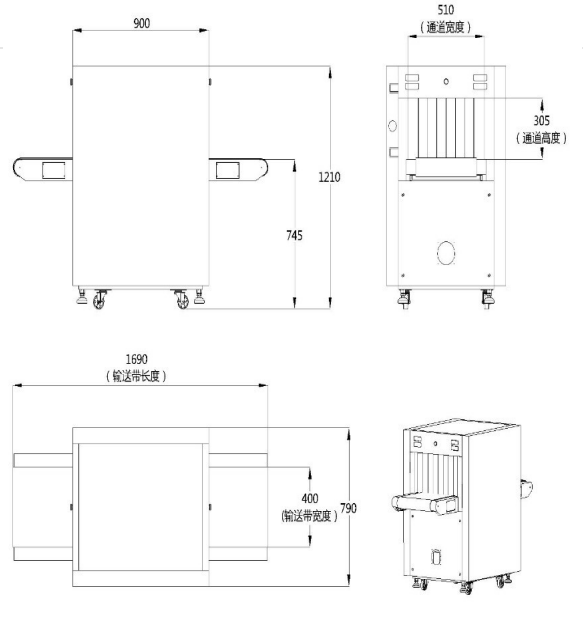

Dimension

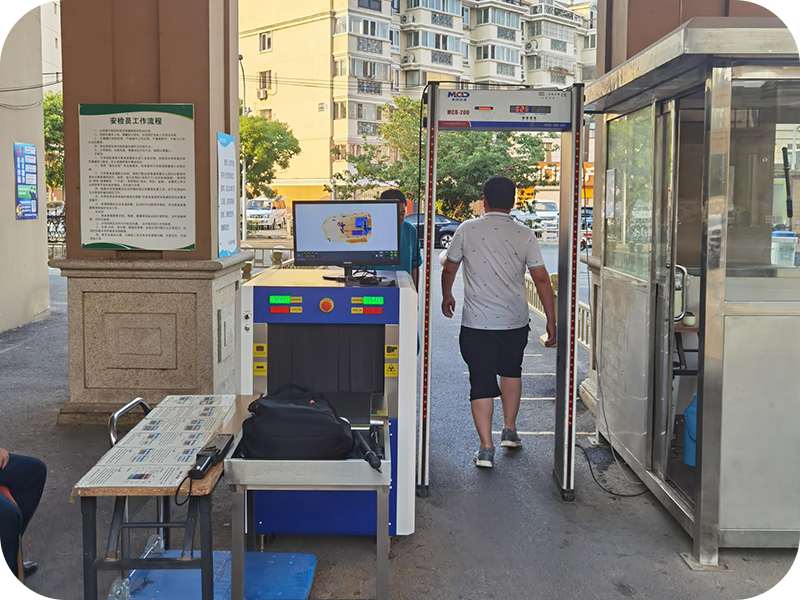

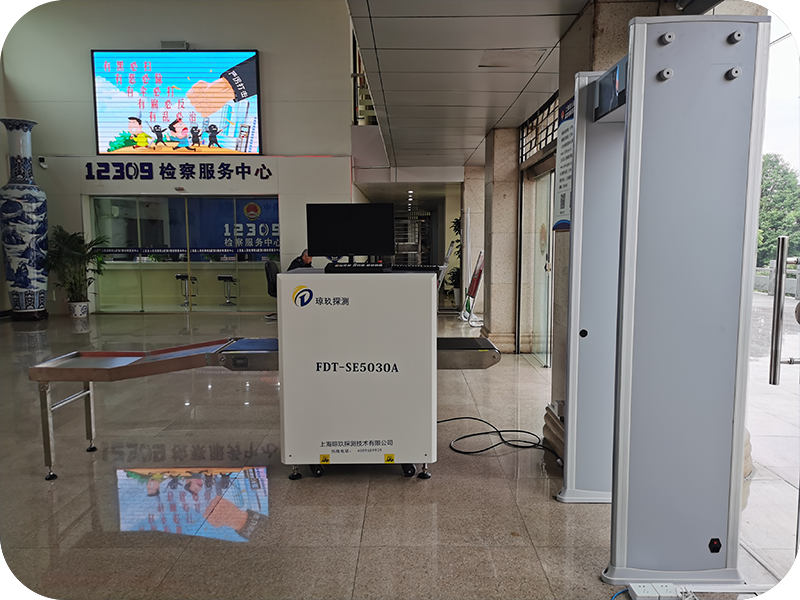

Case Sharing
-
