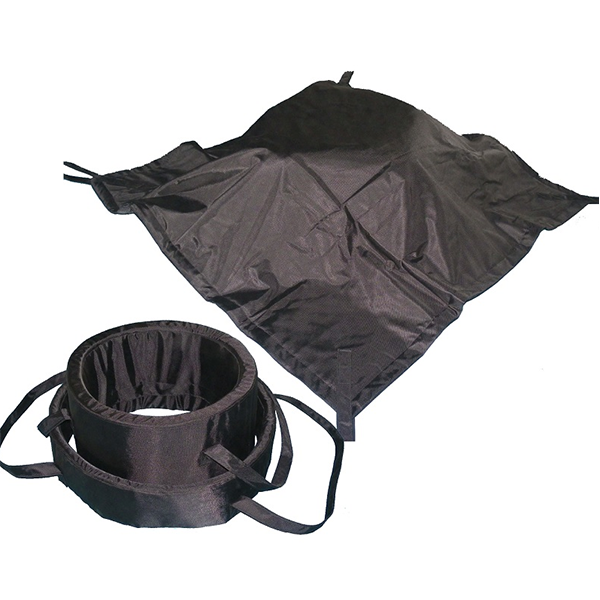

Explosion-Proof Blanket FDT-EPB01
According to "GA69-2007" explosion-proof blanket standard development and production, the use of advanced double fence structure, its main core material is made of high strength and high modulus polyethylene fiber UD prepreg, and then (0°/90°) composite into continuous coil, made of inner fence, outer fence and cover blanket three pieces, can effectively prevent 82-2 grenade explosion caused by the destruction effect. The explosive power is equivalent to 70gTNT, which can form a three-layer barrier effect on explosive debris and impact. It can effectively protect the surrounding personnel, valuables and special public places from damage. It is an important device for temporary isolation, storage and disposal of explosive materials on site. It is also the necessary equipment for explosion prevention of public security, armed police, courts, procuratorates, civil aviation, railways, ports, customs, important places and large-scale activities.
Technical parameter
Blanket: 1600mm*1600mm
Inner fence: Inner diameter 420mm, height 300mm
Outer fence: Inside diameter 590mm, height 150mm
Knock resistance: Type 82-2 grenade
Weight: 29.2Kg
Water seepage resistance of blanket and fence covering material: hydrostatic pressure > 12Mpa
Fracture strength of blanket and fence covering material: radial and zonal > 1200N
Tear strength of blanket and fence covering material: radial and zonal > 120N
Instruction
(1) Explosion-proof fence and cover blanket must be used together.
(2) Place the suspected explosive in the center of the explosion-proof fence, and then cover it with the explosion-proof blanket. The side printed with the word "explosion-proof blanket" faces upward, and the explosion-proof hole is in the center of the inner fence, and try to make the explosion-proof blanket drop and tightly covered.
(3) After the explosion-proof blanket is covered, the operator must stay away from the explosion center and wait for professional explosive disposal personnel to come to the scene for further explanation.
(4) Do not cover the top of the explosion-proof tank when detonating.
Attention
(1) The explosion-proof cover blanket shall not be directly covered on the dangerous goods. The explosion-proof cover blanket shall be used together with the internal and external fence, and shall not be used alone;
(2) There are blowout holes in the center of the explosion-proof cover blanket, so the explosion-proof cover blanket does not constitute protection on the top of its center;
(3) The explosion-proof cover blanket and explosion-proof fence shall not be used again after the explosion.
