X-ray Baggage Scanner With Both Dual Energy Fluoroscopy and Backscatter Integrated Function
Applicable to
FDT X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.
Suspected Drug

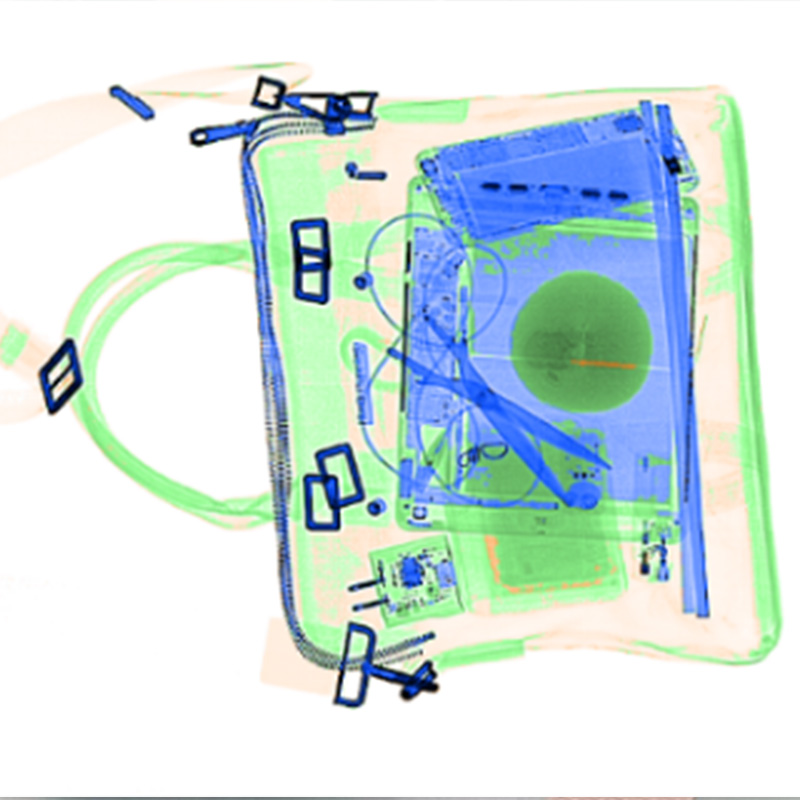

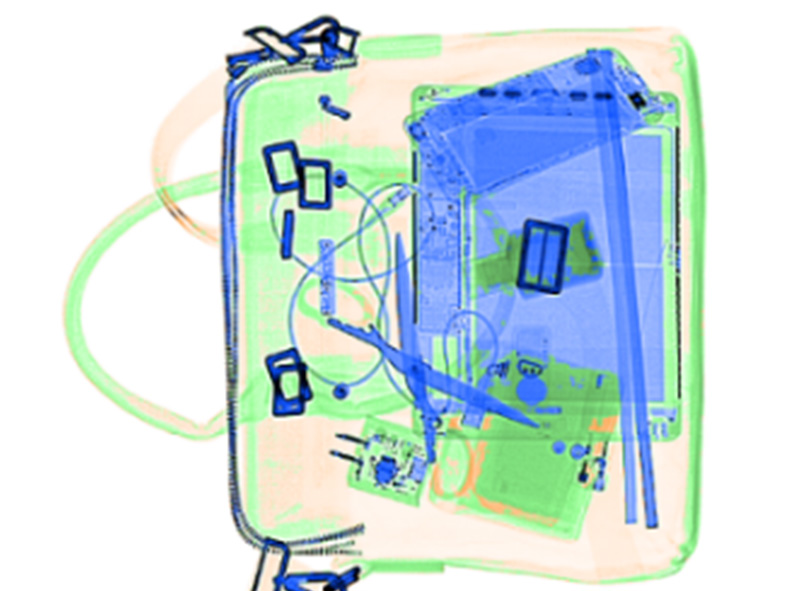

Traditional security machines are difficult to distinguish

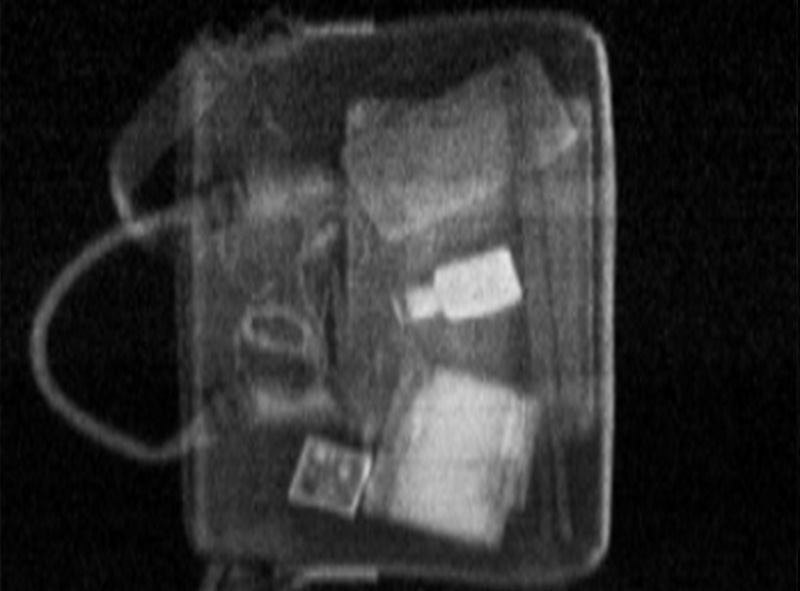

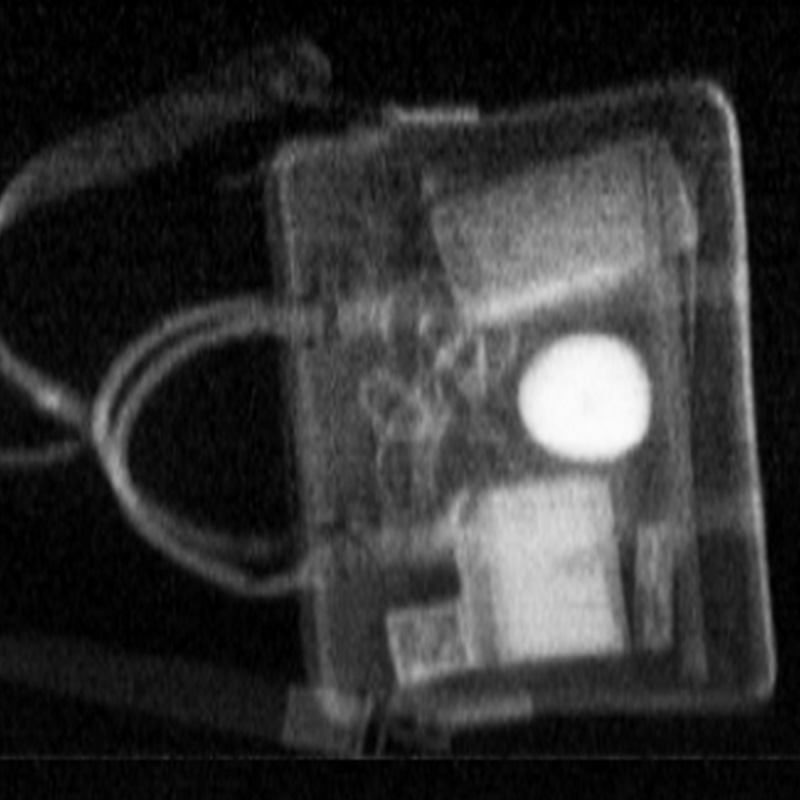

Back scatter function security machine can clearly discerned
General Specifications
Dimensions: 2245（L）× 1210mm (W) × 1320mm (H)
Tunnel size: 655mm (W) × 505mm (H)
Conveyor speed: 0.20 m/s
Storage temperature / humidity:
-40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.63kVA
Backscattering Parameter
Penetration thickness of backscatter steel plate: ≥6mm
Polyethylene wire to wire width: ≤5mm
Polyethylene rod diameter: ≤2mm
Single solid core copper wire diameter: ≤2mm
Resolution of polyethylene test card: ≤10%
Basic Specifications
Penetration: 30mm Steel Plate(140kV) 38mm Steel Plate(160KV)
Wire resolution: 40AWG
Penetration resolution: 34AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm
X-ray Generator
Generation direction: Bottom-Top
Tube voltage: 140～160kV Adjustable
Tube current: 0.4～0.7mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °~110°
Image processing system
X-ray sensor
L-shaped photodiode detector
Backscatter detector
Display :2pcs 21 "HD LCD display
Configuration
International brand electrical components
Industrial PLC circuit control,
Capacitance integral analog conversion, clear image
Industrial computer, long-term stable and reliable system
Ergonomic principle reading system,
Radiation protection system (close to natural background)
Backscatter images and functions
1. Organic matter imaging display: the image only shows the organic matter such as carbon, hydrogen, oxygen and nitrogen in the reported baggage, and the inorganic matter such as iron, aluminum, copper, lead and silicon are not displayed. Good for check drugs,and good for check explosives.
2. Explosives such as C4 (plastic explosion), nitroglycerin, detonators, black powder and other automatic identification, voice sound and light alarm.
3. Drugs such as heroin, methamphetamine and other automatic recognition, voice sound and light alarm.
4. Automatic identification and alarm if there is nuclide in luggage.
5. Continuous magnification, local magnification, high/low energy penetration, image pullback, image saving (> 100,000 pieces)
Image Processing
● Color / black&white,
● Organic / inorganic,
● Super enhancement,
● Edge enhancement,
● Partial enhancement,
● Grayscale scanning,
● Image restoration,
● Zoom in / out,
● High / low energy penetration,
● Continuous observation,
● Playback (50),
● Image storage（>10 w pic.)
Others
● One key shut-down,
● High density alarm,
● Drug and explosive powder detection
● Built-in Automatic self-diagnosis

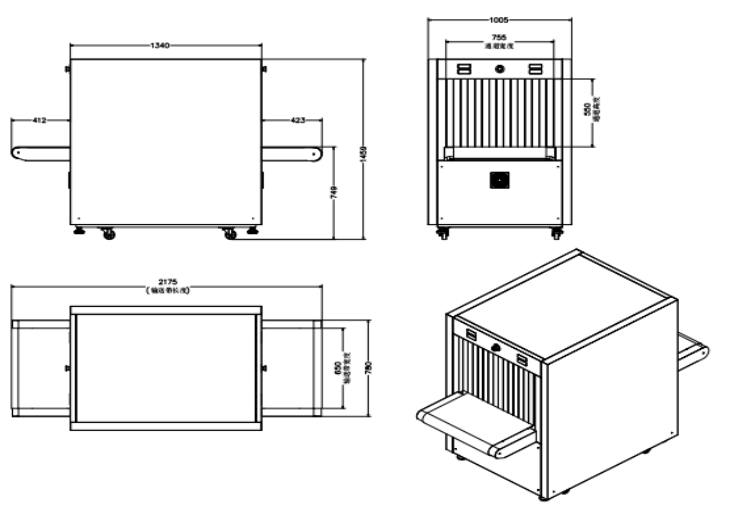

Dimensions
-
