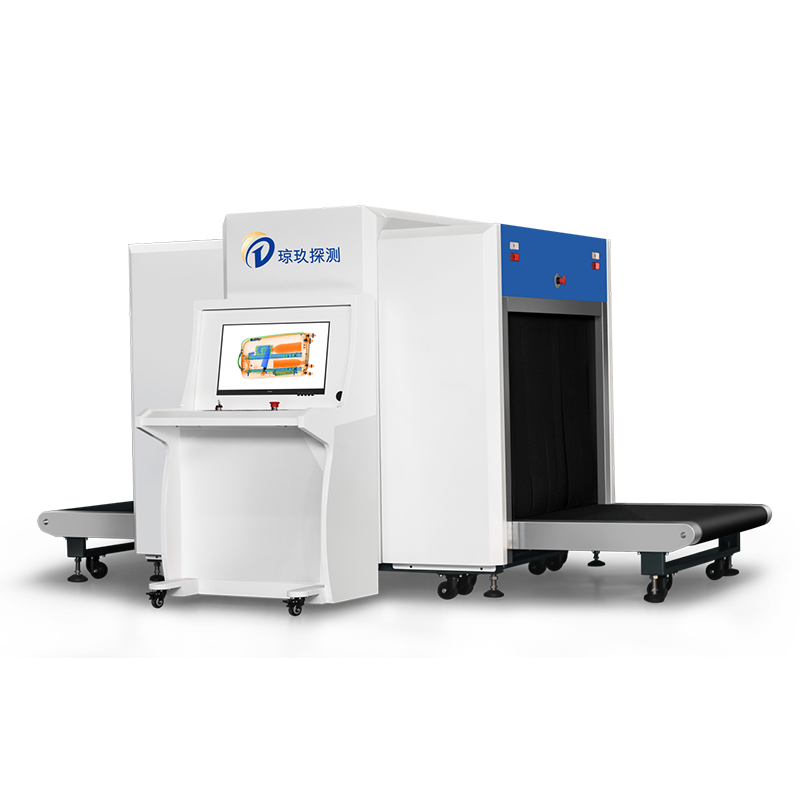

X-ray Baggage Scanner FDT-SE100100
Used in
high-speed railway passenger station, subway high-speed railway hub, prison incoming material inspection, public security checkpoints, military barracks, large-scale sports events, stadiums, highway passenger transport, passenger cruise terminal, customs port border entry and exit inspection, large-scale tourism distribution center and other public places security inspection.
Packet drawing of a standard machine
The packet map after installing AI judge map and liquid recognition function
General Specifications
Dimensions: 3450mm(L)×1365mm (W)×1744mm(H)
Tunnel size: 1005mm (W)×1005mm (H)
Conveyor speed: 0.20±0.02m/s
Conveyor height: 304mm
Weight: 750Kg
Storage temperature / humidity:
-40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.8kVA
Basic Specifications
Penetration: 34mm Steel Plate
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.0mm vertica Ф1.0mm
Through rate:720pcs/h
Dose per check:≤1.95μGy
Leak radiation dose rate:＜0.5μGy/h
Noise: 54dB（A）
X-ray Generator
Generation direction: Top-Bottom
Tube voltage: 140~160kV Adjustable
Tube current: 0.3~1.2mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °
Image processing system
X-ray sensor:Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green.
Display:24 "Philips HD LCD display
Feature
Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.
Auxiliary function
One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.
Extended function
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.
Quality
● International brand electrical components
● Industrial PLC circuit control, electromagnetic compatibility special requirements
● Capacitor integral analog-digital conversion, the image is clear and subtle
● Industrial computer, the system is stable and reliable for a long time
● human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background

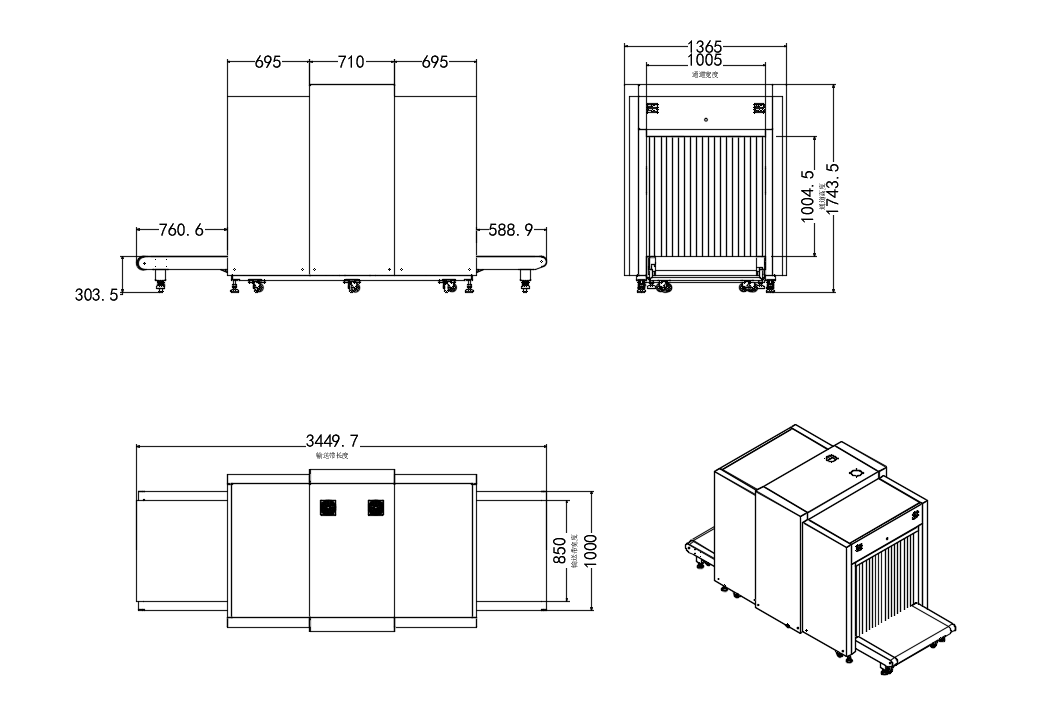

Size Specification

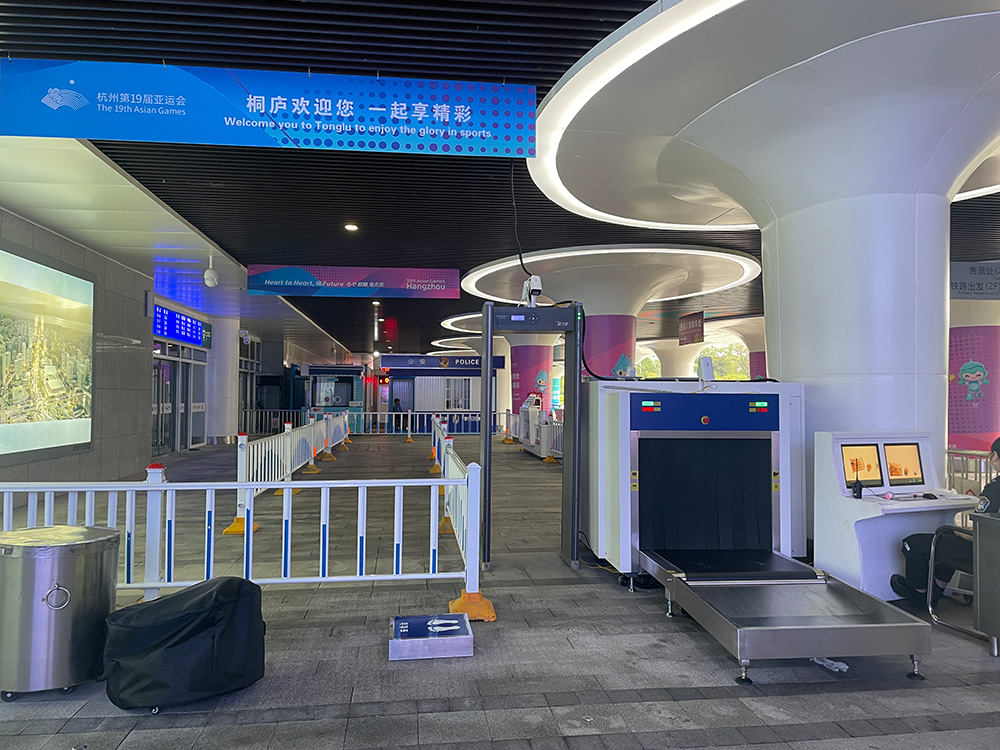

Case display
