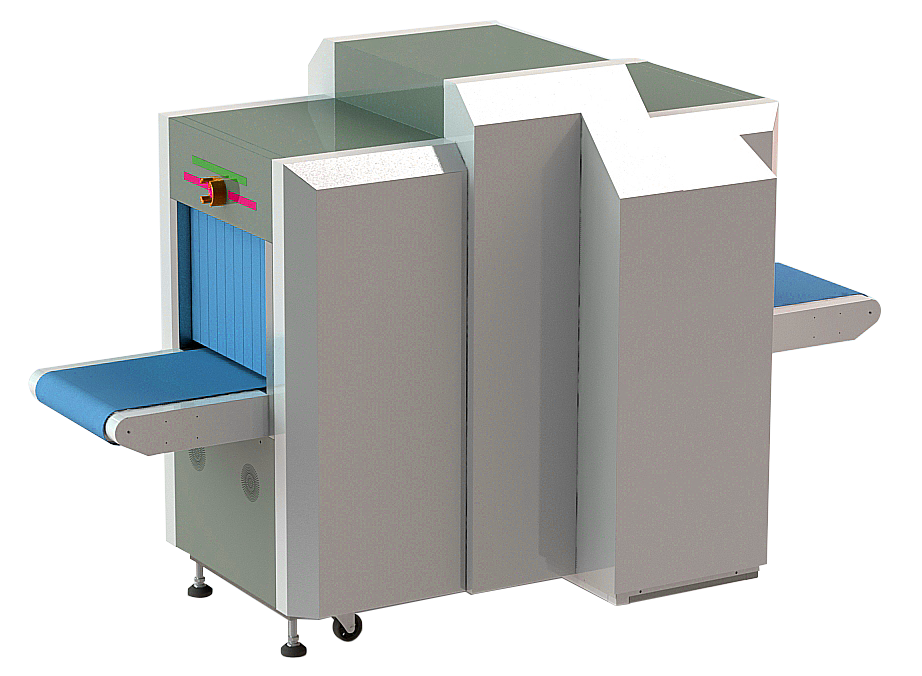

X-ray Security Inspection Machine for Durian Inspection
After three years of development of the X-ray durian detector developed by Shanghai Fjade Detection Technology Co., LTD.,. It can see through the internal structure of durian in high definition, and solve the problems of durian quality classification and non-destructive testing of durian dead fruit in the durian industry. Based on automatic identification of artificial intelligence, the grading accuracy tends to be perfect, and the success rate of detection of dead fruit is greater than 83%.
X-ray Durian Detector - Practical effect of imaging detection

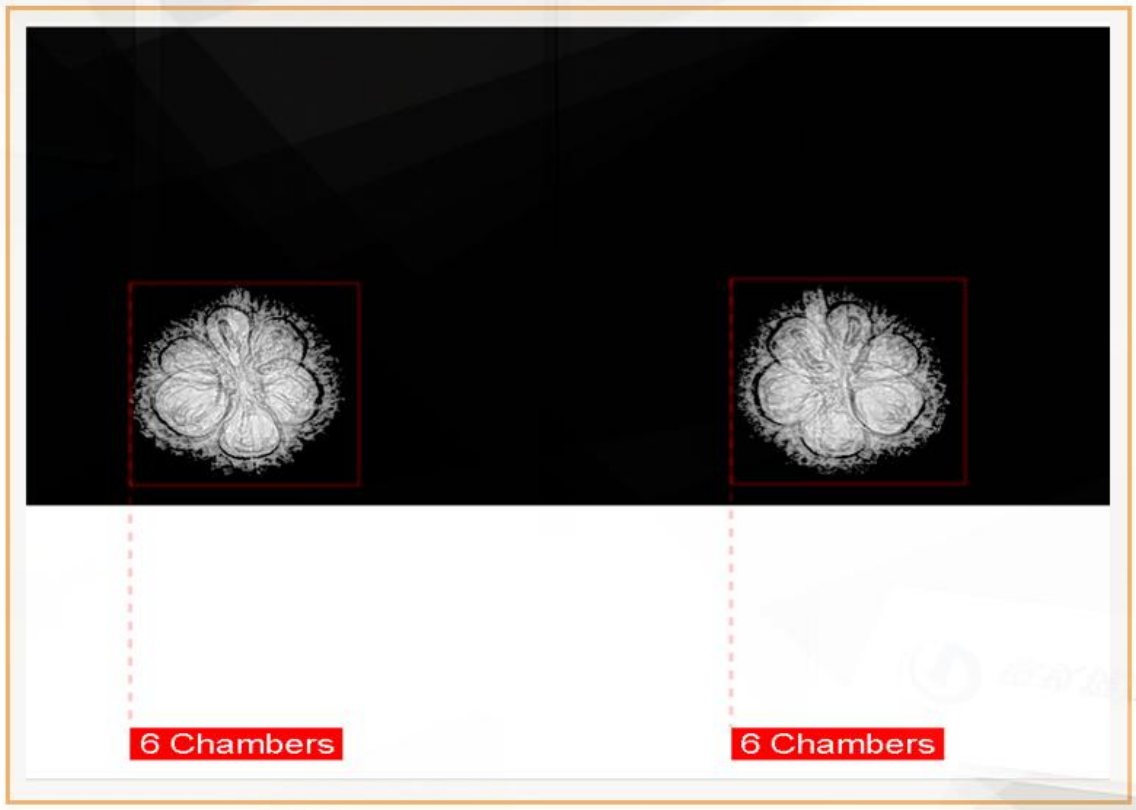

Physical durian, appearance observation 6 room flesh, full fruit, golden color, "quality" durian.

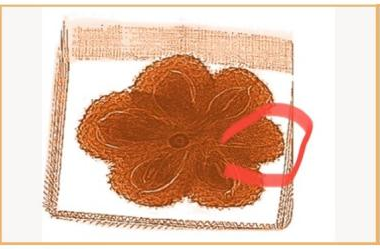

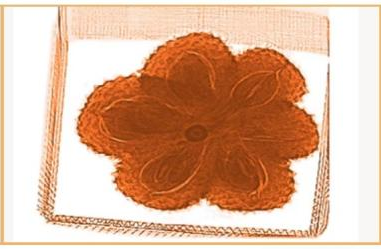

X-ray durian detector imaging: 5 room meat interface is clear, one room boundary is blurred.
5+1 exception annotation
Cut the actual observation, found that the appearance of a full room, the abnormal imaging part, is indeed in a state of inability to mature, oral tasteless, the fruit belongs to the dead fruit.
Technological advantage
● High power High Exposure X-ray Source (150-180kv adjustable, 1.5mA).
● 0.8 pixel detector ensures 0.4mm spatial resolution and clear image boundaries.
● Detection range: Durians weighing less than 10 kg can be detected.
● Functions: production data/detection data statistics, abnormal durian storage map, manual annotation, AI intelligent automatic recognition.
