X Ray Baggage ScannerFDT-SE6550
Government buildings, courts, procuratorates, prisons, detention centers, public security checkpoints, military barracks, standard test rooms, boarding schools, vocational schools, large-scale event rentals, gymnasiums, museums, memorials, historical and cultural centers, Secondary highway passenger stations, wharfs, customs border entry and exit inspection, embassies, tourist attractions, entertainment venues, bars and other public places of product safety inspection.

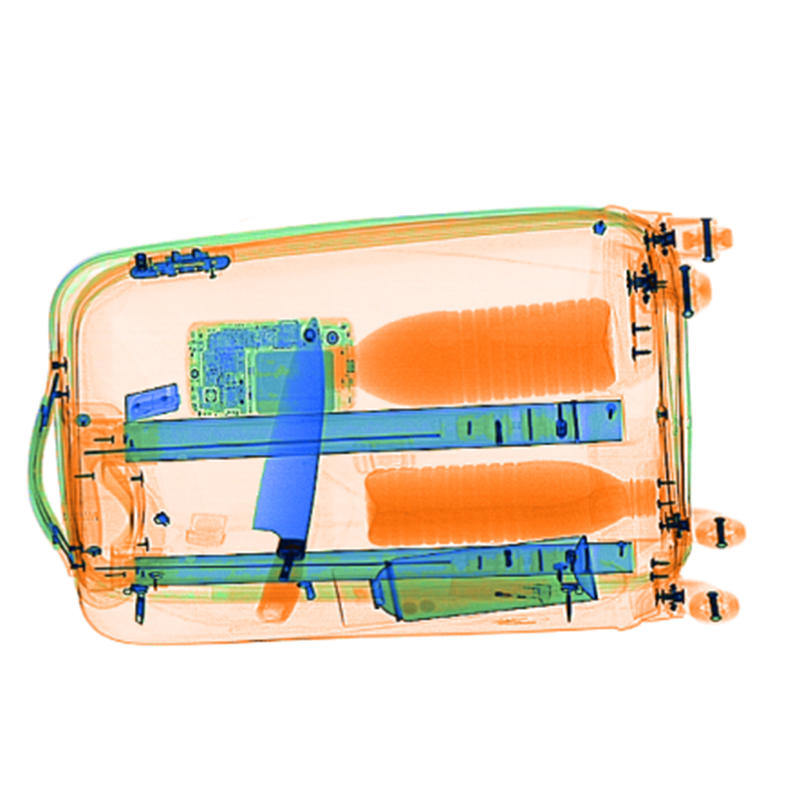

Packet drawing of a standard machine

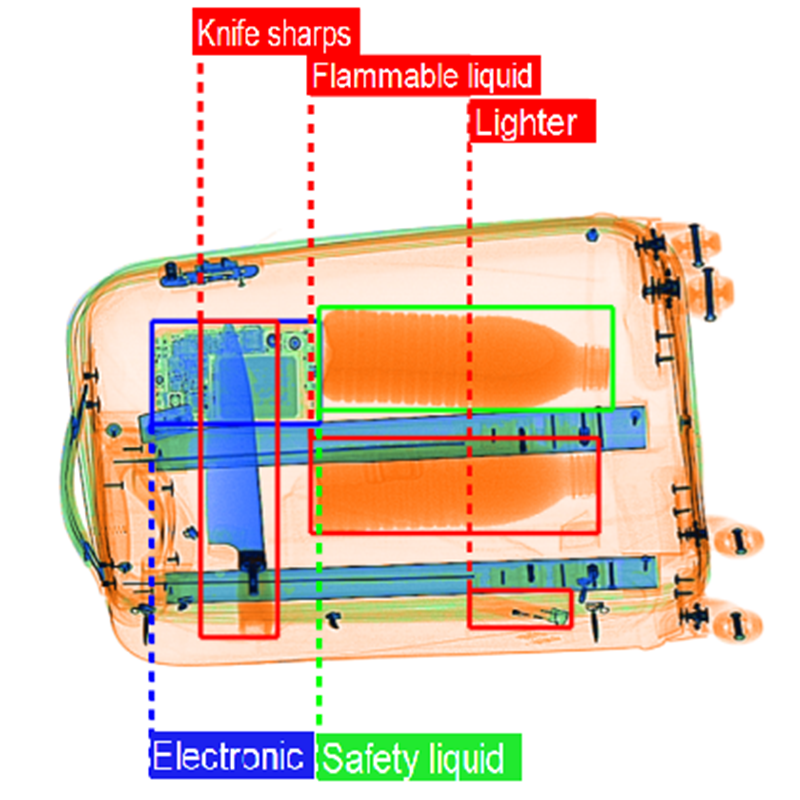

The packet map after installing AI judge map and liquid recognition function
General Specifications
Dimensions: 2125mm(L)×935mm(W)×1320mm(H)
Tunnel size: 655mm (W) × 505mm (H)
Conveyor speed: 0.20 m/s
Conveyor height: 651mm
Weight: 392Kg
Storage temperature / humidity:
-40 ºC ± 3 ºC ~ +60 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ºC ± 3 ºC ~ + 40 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.6kVA
Basic Specifications
Penetration:38mm Steel
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm
Through rate:720pcs/h
Dose per check:≤1.8μGy
Leak radiation dose rate:＜0.5μGy/h
Noise: < 54dB（A）
X-ray Generator
Generation direction: Bottom-Top
Tube voltage: 140~160kV Adjustable
Tube current: 0.3~1.2mA Adjustable
Cooling mode/ duty cycle: sealed oil / 100%
Generation angle: 80 °
Image processing system
X-ray sensor:Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green.
Display:24 "Philips HD LCD display
Feature
Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.
Auxiliary function
One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.
Extended function
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.
Quality
● International brand electrical components
● Industrial PLC circuit control, electromagnetic compatibility special requirements
● Capacitor integral analog-digital conversion, the image is clear and subtle
● Industrial computer, the system is stable and reliable for a long time
● human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background

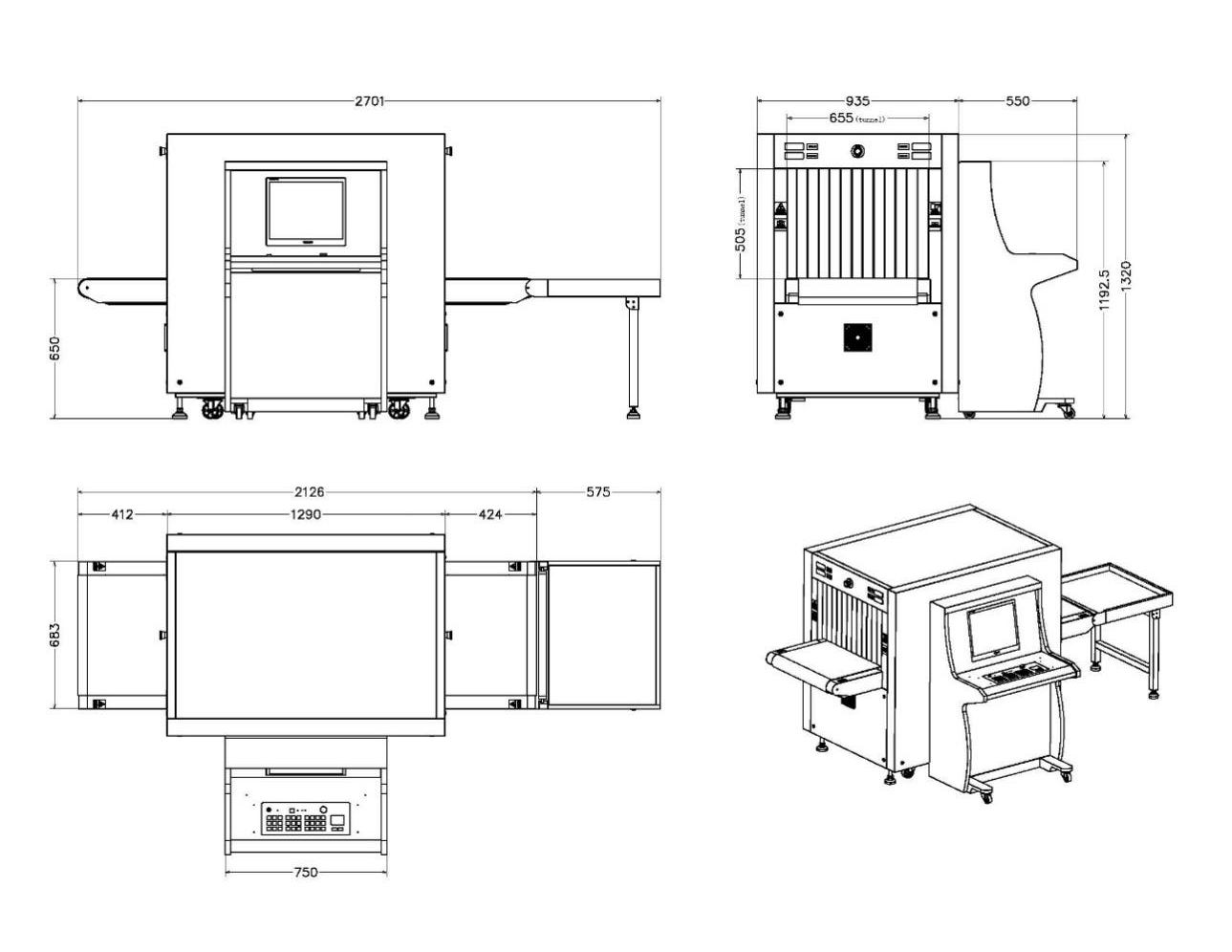

Dimension

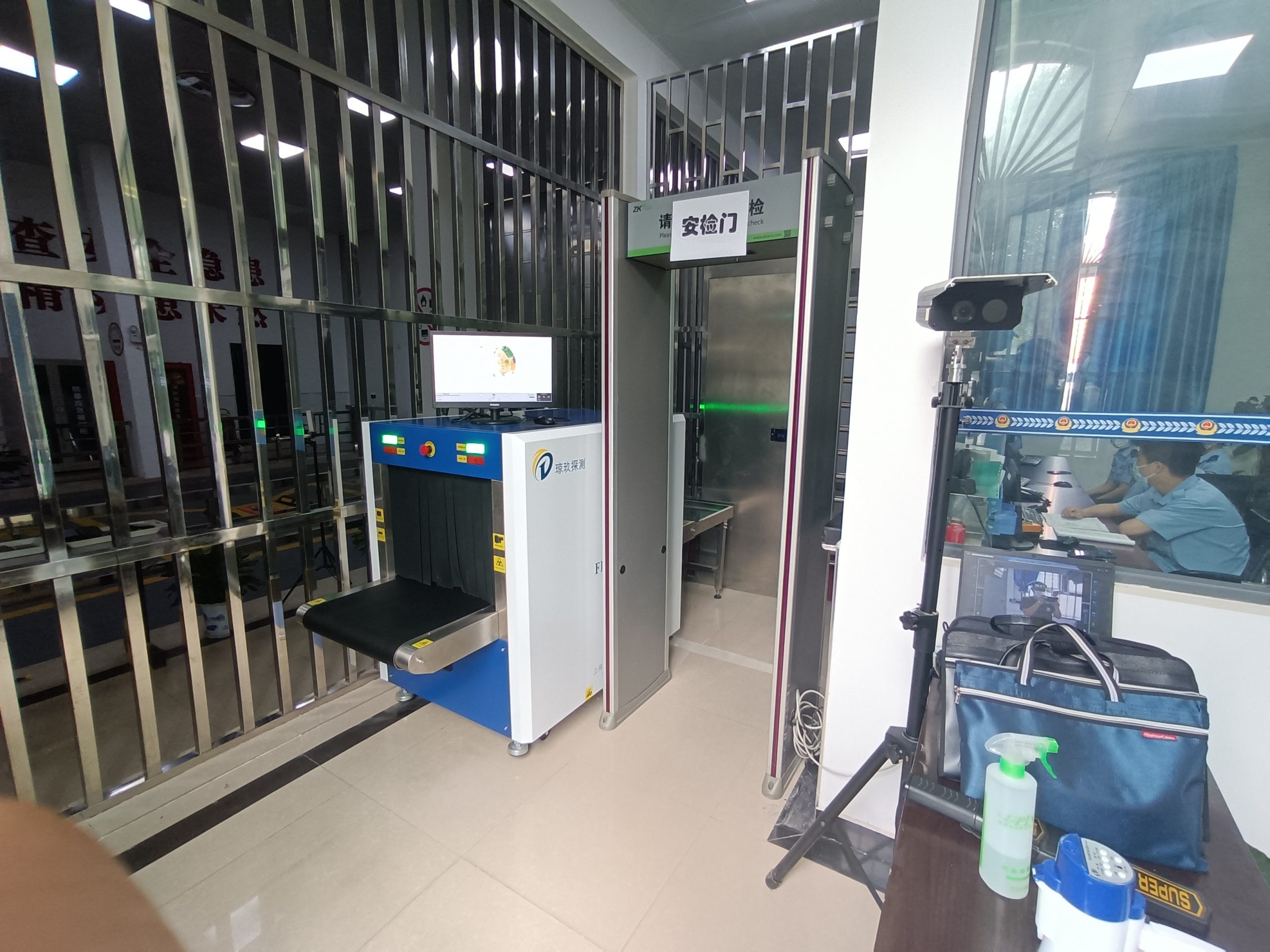

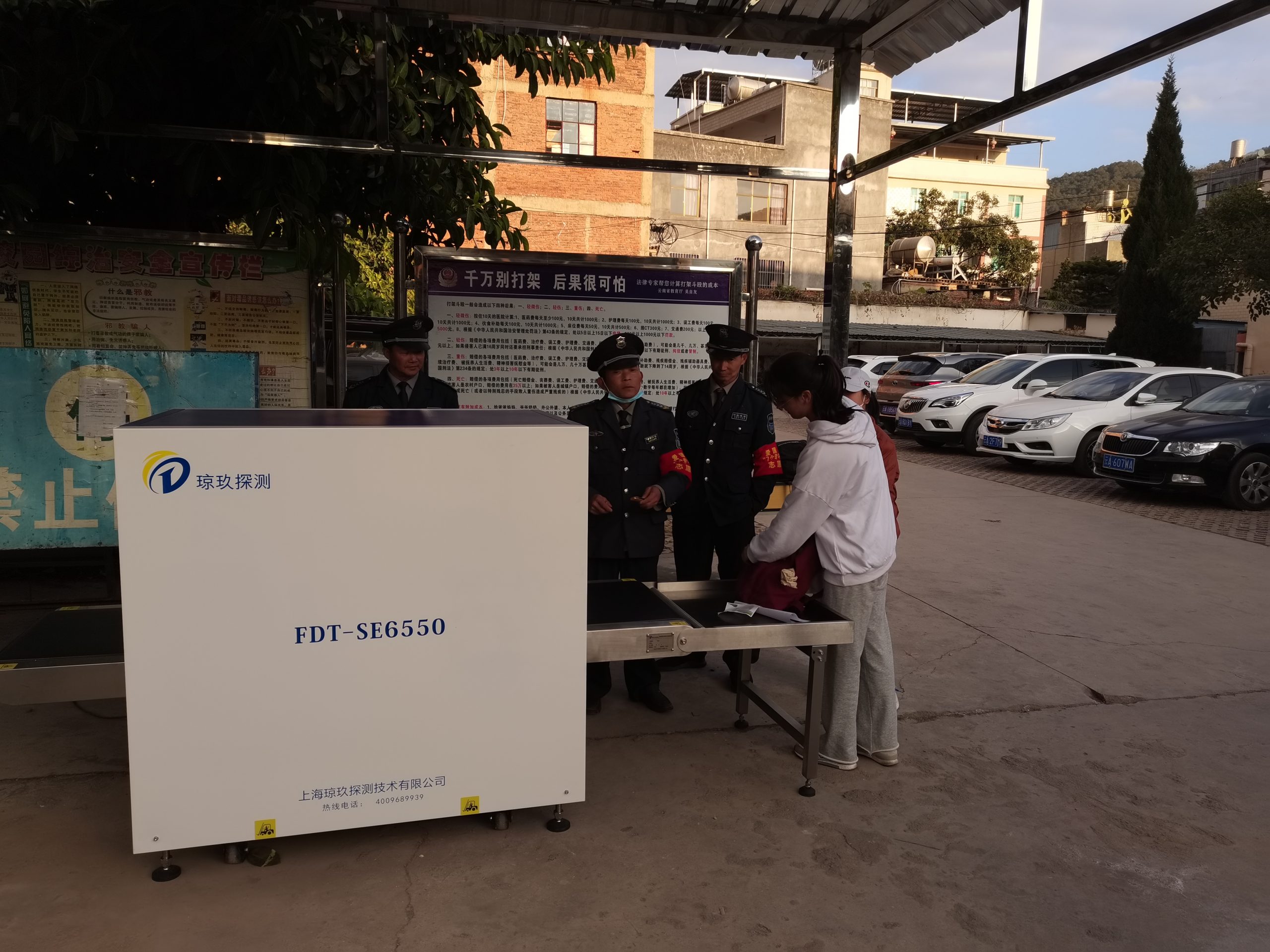

Case display
