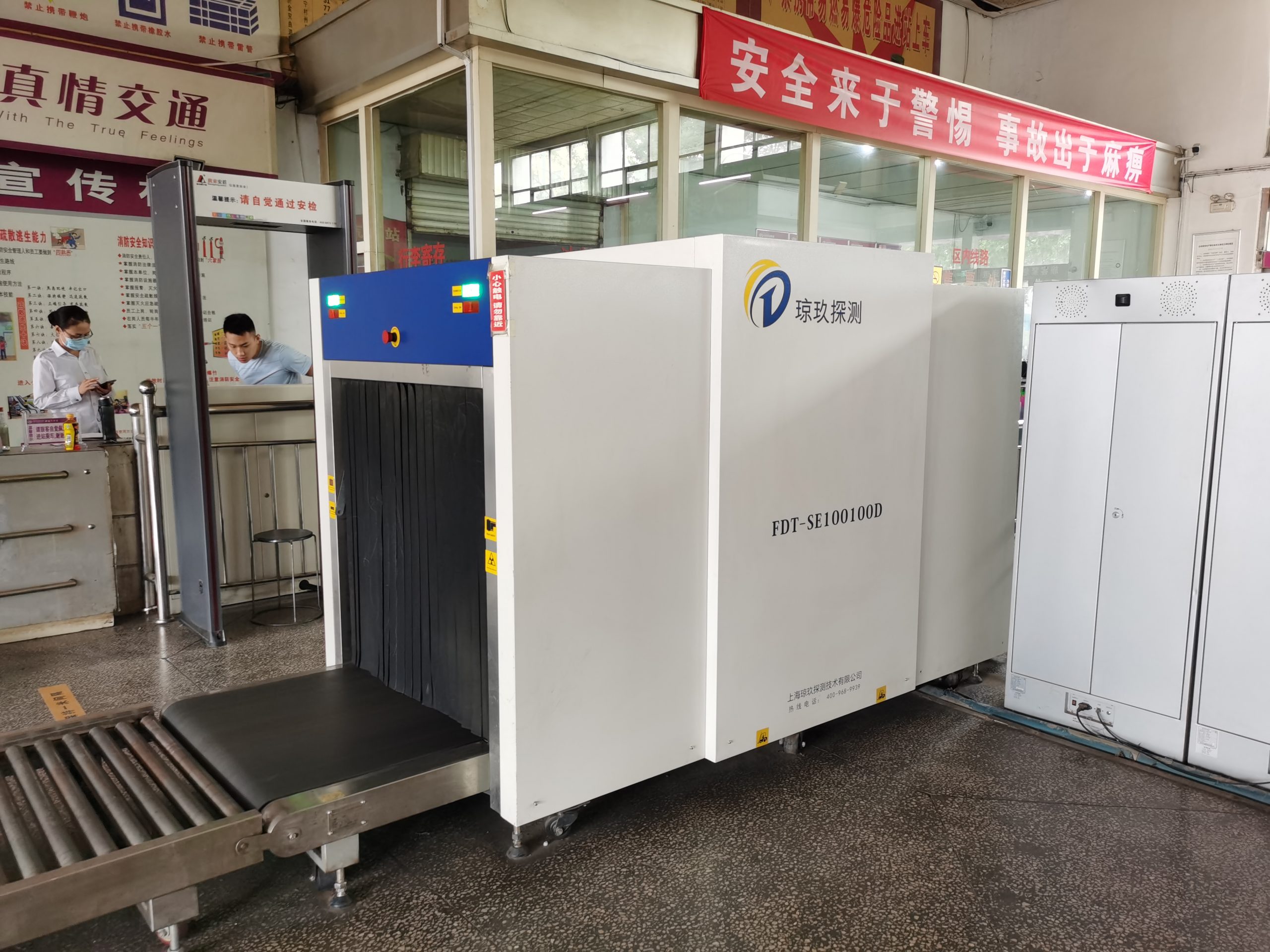

X-ray Baggage Scanner with Dual View & Dual Energy FDT-SE100100D
Applicable to
High-speed rail passenger station, subway high-speed rail hub, prison incoming material inspection, public security checkpoints, military barracks, large-scale sports events, stadiums, highway passenger transport, passenger cruise terminals, customs port border entry and exit inspection, large-scale tourism distribution centers and other public places of security inspection.

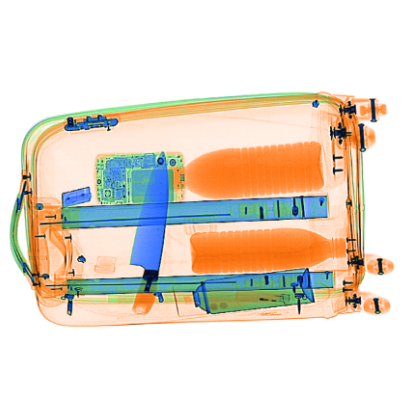

Background view through packet map

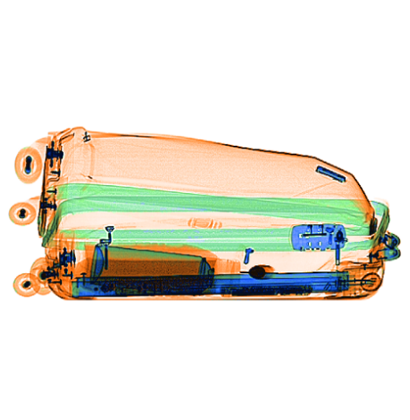

Side view through packet map
Add AI map, liquid recognition function of the packet map
General Specifications
Dimensions: 3782（L）× 1695mm (W) × 1743mm (H)
Tunnel size: 1005mm (W) × 1005mm (H)
Conveyor speed: 0.20 m/s±0.02m/s
Conveyor Max. Load: 200 kg
Conveyor Height: 304 mm
Weight: 910Kg
Storage temperature / humidity:
-20 ℃ ~ +60 ℃ / 10 ~ 95% (no condensation)
Operating temperature / humidity:
-10 ℃ ~ + 45 ℃ / 10% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 1 kVA
Basic Specifications
Penetration: Top viewing angle 34mm steel plate
Side view angle 34mm steel plate
Wire resolution: Top View Angle 40 AWG
Side View Angle 40AWG
Penetration resolution: 34AWG top viewing angle
34AWG Side View Angle
Spatial resolution: Horizontal top view angle Ф1.0mm vertical Ф1.0mm
Horizontal side view angle Ф1.0mm vertical Ф1.0mm
Through rate: 720pcs/h
Dose per check: ≤2.9μGy
Leak radiation dose rate:＜0.5μGy/h
Noise: 54.6dB（A）
X-ray Generator
Generation Direction: Top-Bottom & Side - Side
Tube voltage: 140～160kV
Adjustable Tube current: 0.3～1.2 mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °
Image Processing System
X-ray sensor:Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green.
Display:2 pcs 24 "Philips HD LCD display
Feature
Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.
Auxiliary function
One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.
Extended function
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.
Quality
● International brand electrical components.
● Industrial PLC circuit control, electromagnetic compatibility special requirements.
● Capacitor integral analog-digital conversion, the image is clear and subtle.
● Industrial computer, the system is stable and reliable for a long time.
● Human engineering principle reading system, anti-fatigue.
● Radiation protection: close to air background.

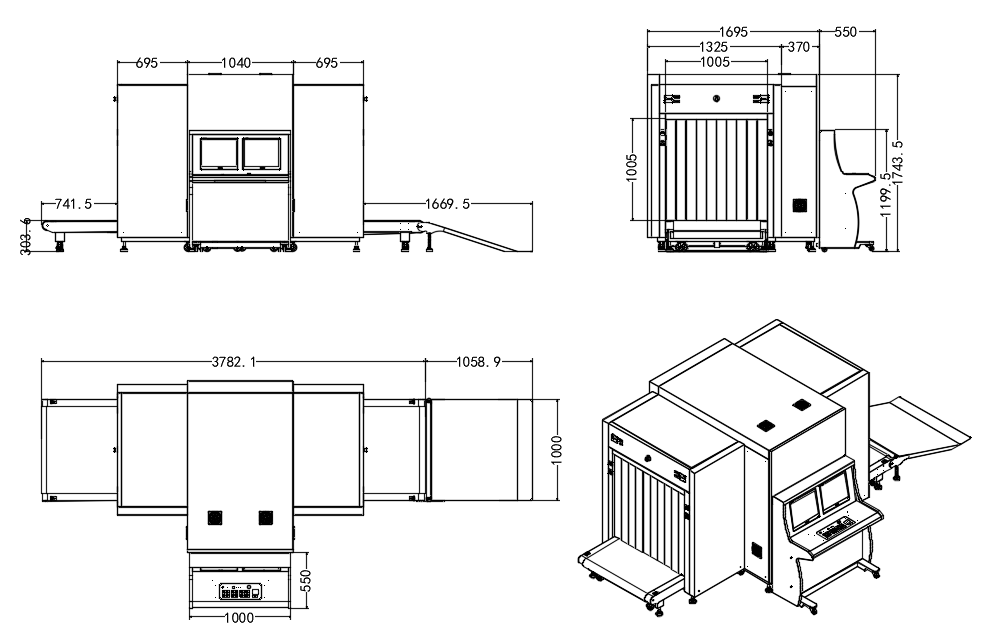

Size Specification

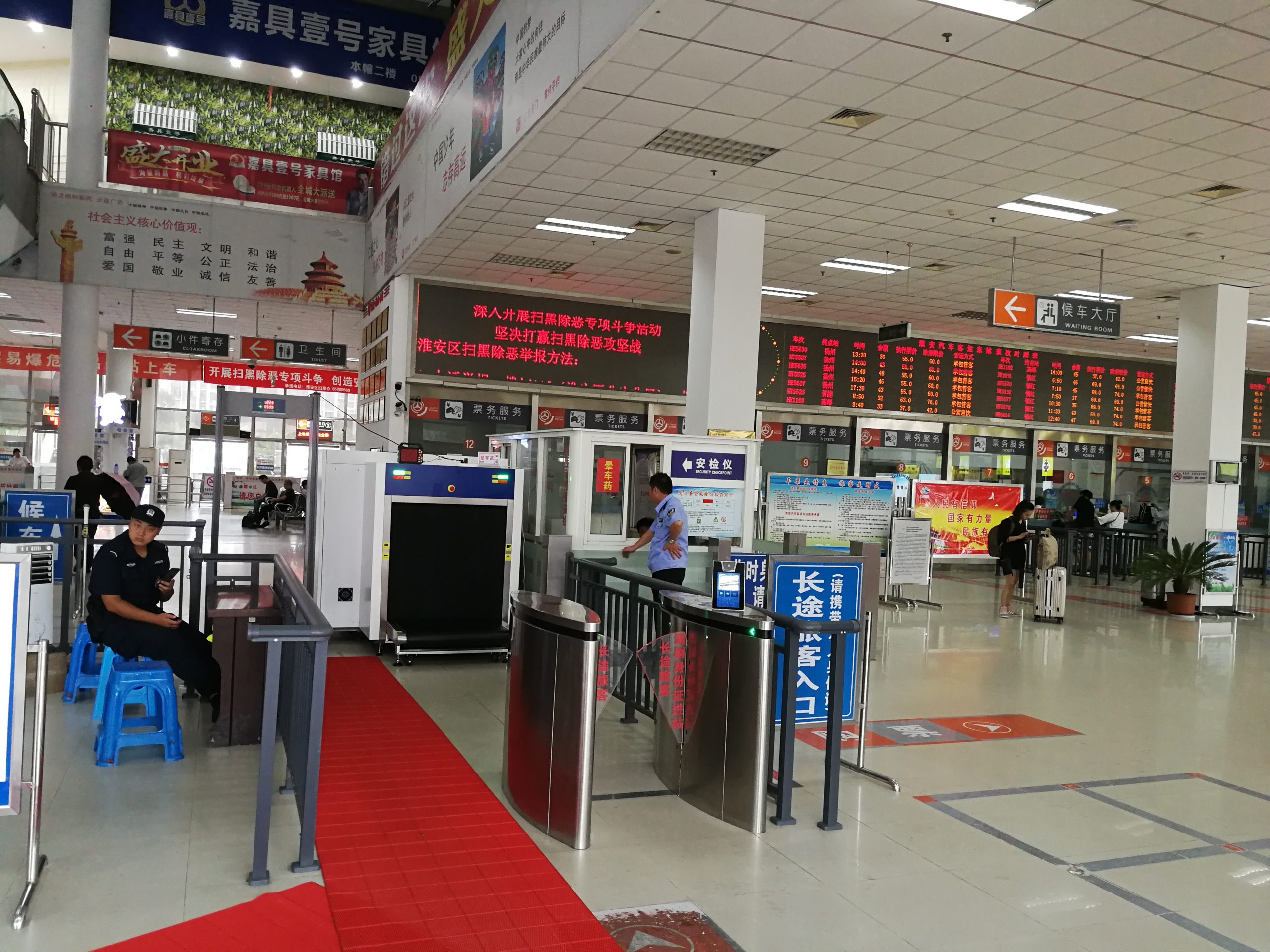

Case display
