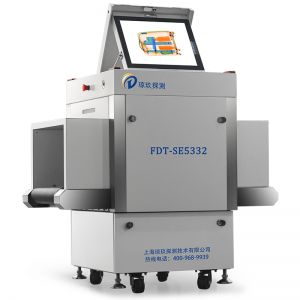

X-ray Baggage Scanner FDT-SE5332 (Detachable)
Applicable to
government buildings and other important institutions, the court sent to appear in court, procuratorate, prison, detention, military reception room, road and railway passenger luggage storage, embassies, entertainment venues and other space restricted places of product safety inspection.

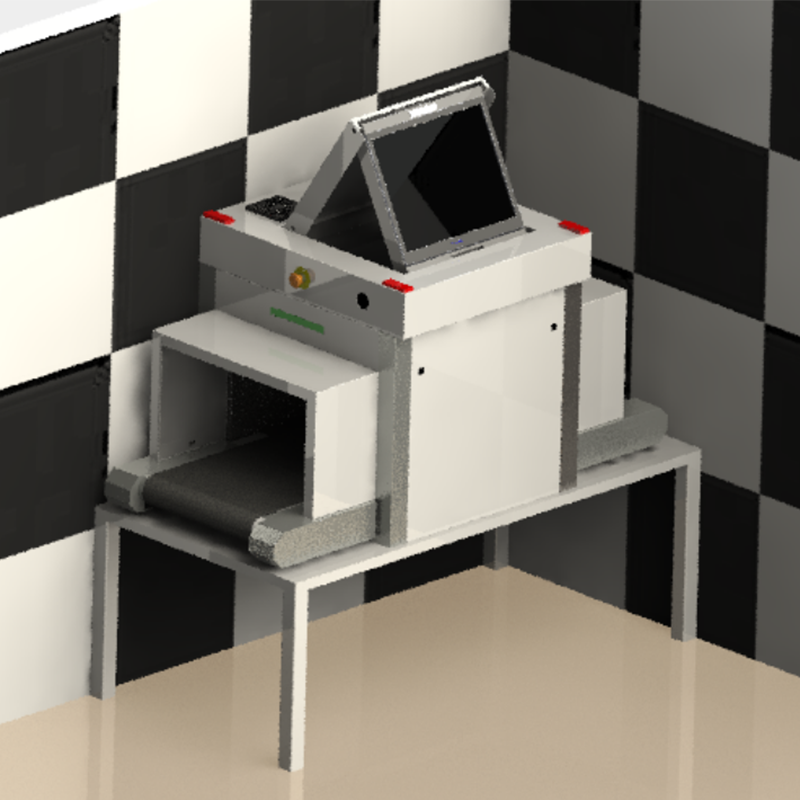

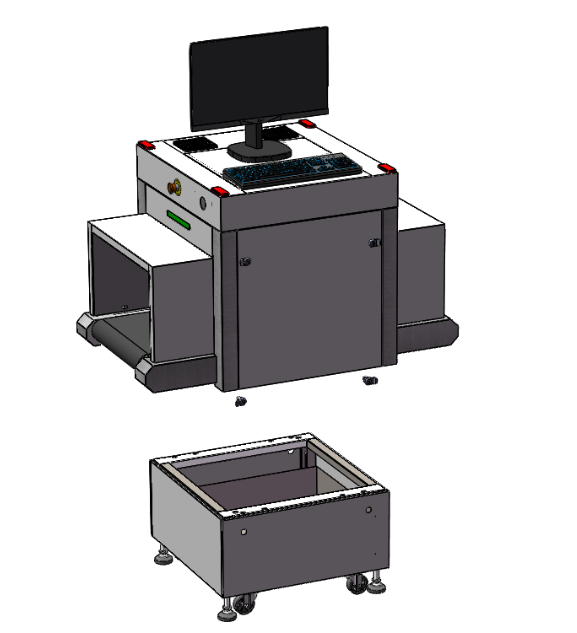

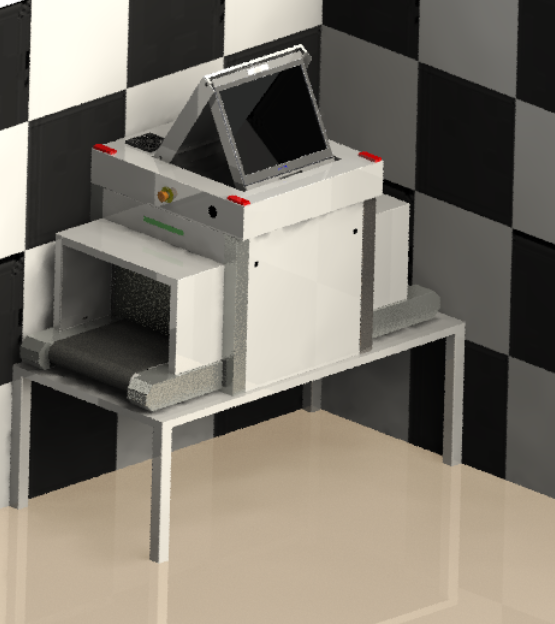

The drawer at the lower end of the security inspection machine can be disassembled, and the security inspection machine can also be directly placed on the table to save space.The display is placed on the top of the security inspection machine, full touch operation, easy operation.

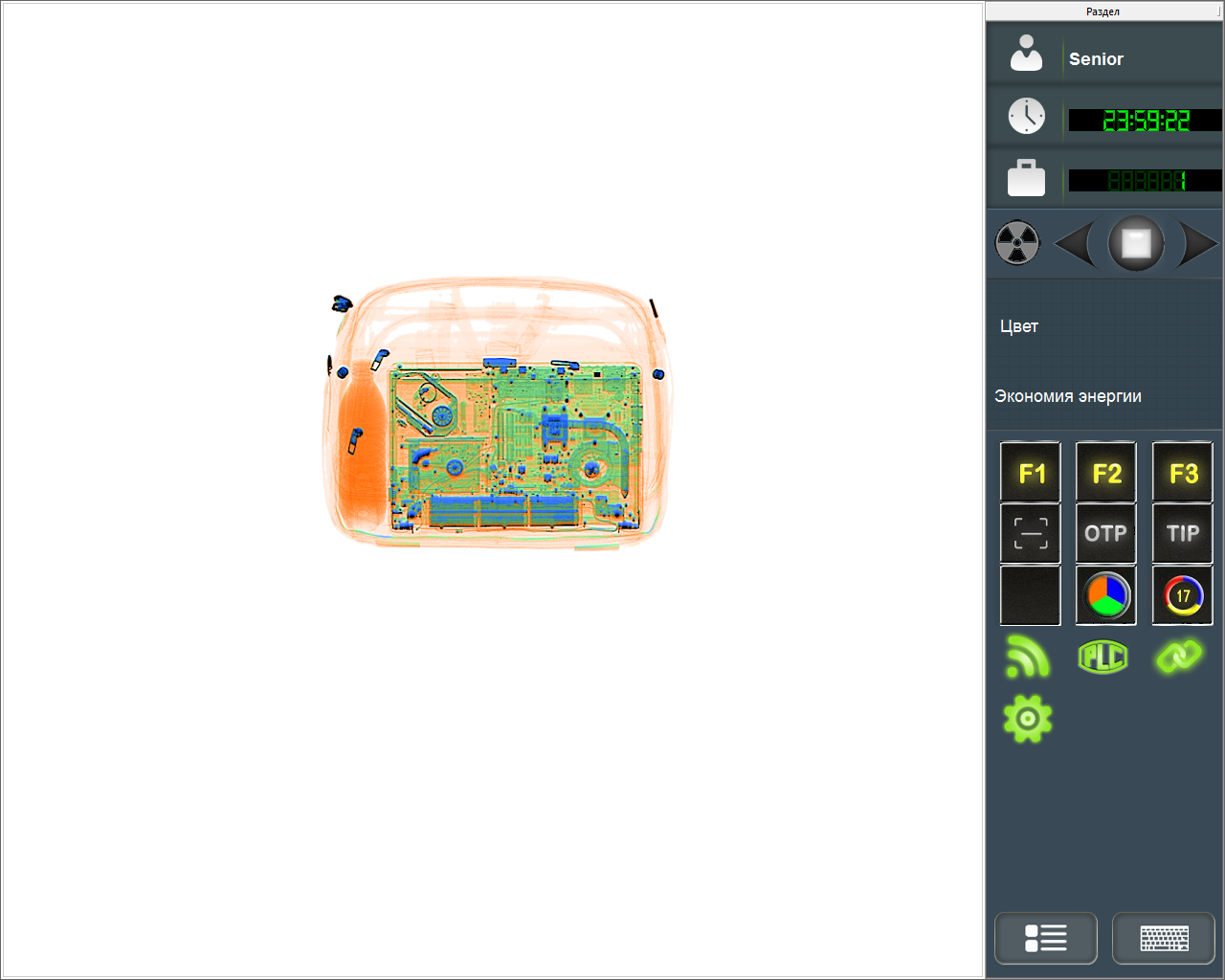

Packet drawing of a standard machine

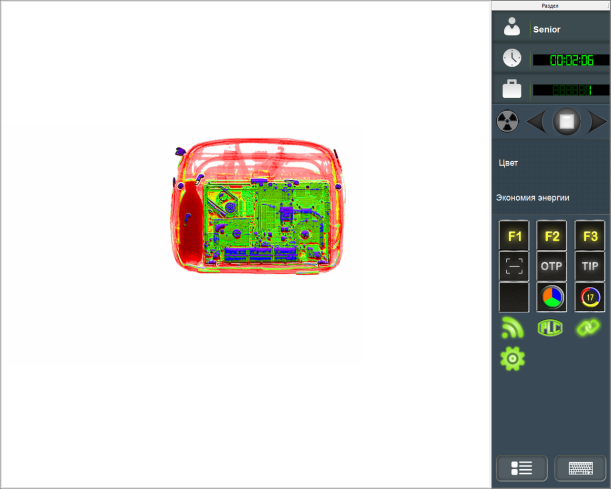

Pseudo-color seven color function of the package diagram
General Specifications
Dimensions: 1024mm（L）×759mm (W)×812mm (H)
Tunnel size: 531mm (W)×332mm (H)
Conveyor speed: 0.20 m/s
Conveyor height752mm
Weight: 152Kg
Storage temperature / humidity:
-40℃ ± 3℃ ~ +60℃ ± 2℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0℃ ± 3℃ ~ + 40℃ ± 2℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.45kVA
Basic Specifications
Penetration: 28mm Steel Plate(120kV)
Wire resolution: 40AWG
Penetration resolution: 24AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm
X-ray Generator
Generation direction: Top - Bottom
Tube voltage: 100~120kV Adjustable
Tube current: 1mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °
Feature
Image processing functions:
Color/black and white, organic/inorganic (culling), super enhancement, edge enhancement, local enhancement, gray scanning, image recovery, reverse display, continuous magnification, local magnification, high energy/low energy penetration, image pullback, image saving (greater than 100,000 pieces), etc.
Auxiliary functions:
One-key shutdown function, penetration alarm, explosive/drug assistance inspection, power-on self-test, hardware maintenance diagnostic tips, etc.
Extended features:
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.
Quality
● International brand electrical components
● Industrial PLC circuit control, electromagnetic compatibility special requirements
● Capacitor integral analog-digital conversion, the image is clear and subtle
● Industrial computer, the system is stable and reliable for a long time
● Human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background

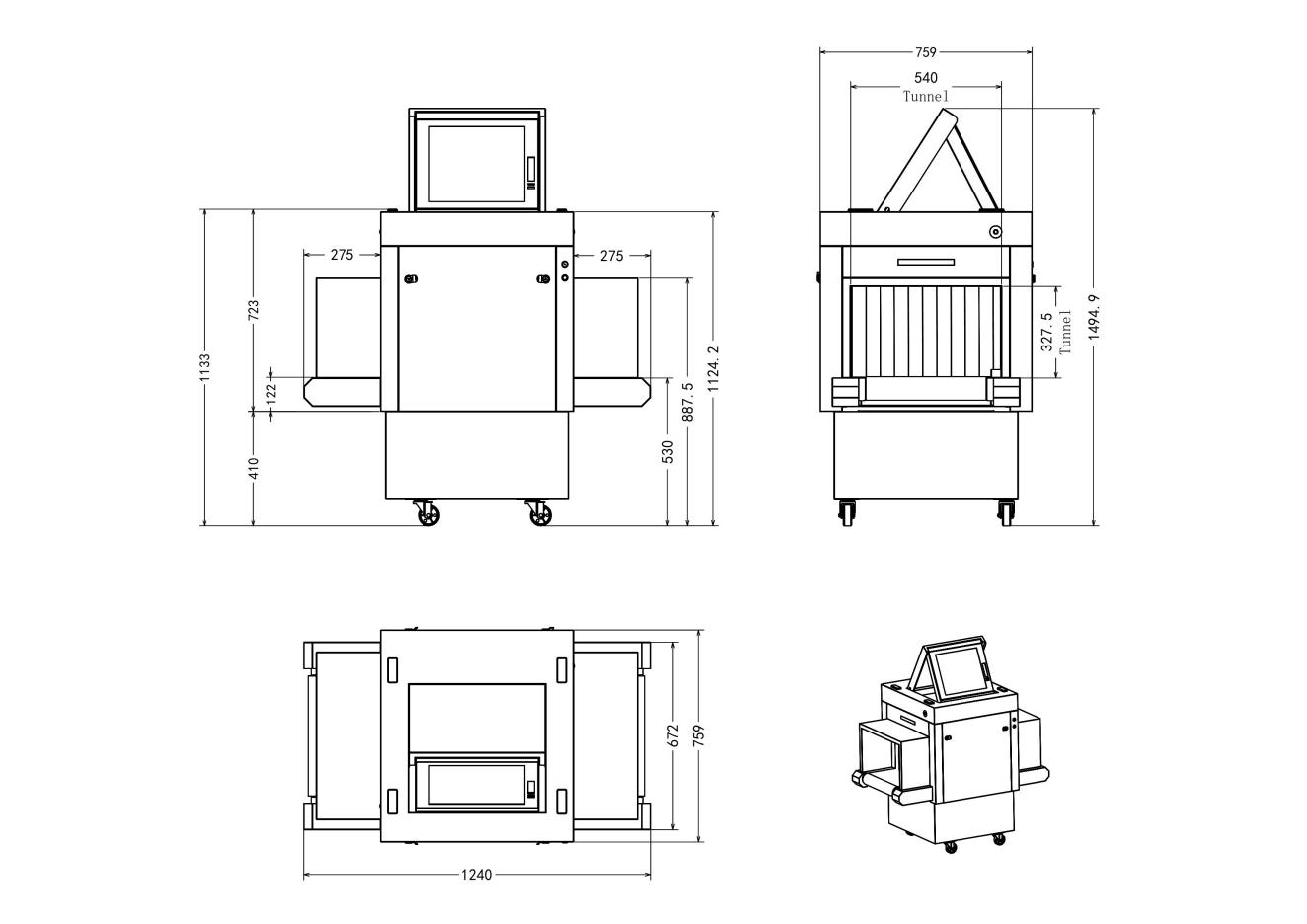

Dimension
