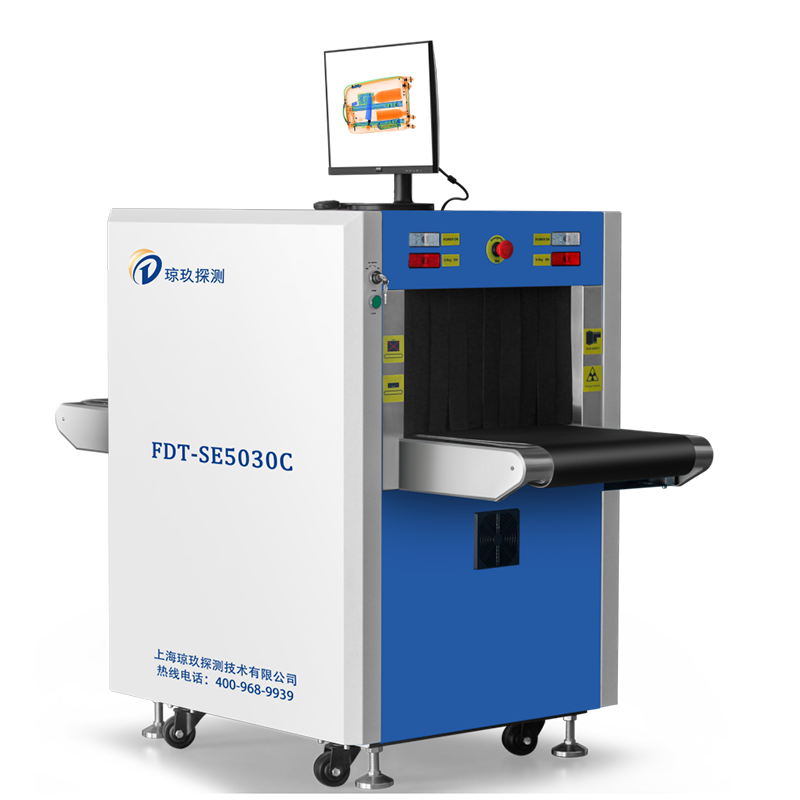

X-ray Baggage Scanner FDT-SE5030C
Applicable to
hospitals, courts, procuratorates, government banks, scientific research institutions and other buildings, prisons, detention centers, public security checkpoints, military barracks, standardized test rooms, large-scale activities/conference rental, stadiums, pavilions, memorials, museums, embassies, consulates, tourist attractions, bars and entertainment venues and other public places of product safety inspection.

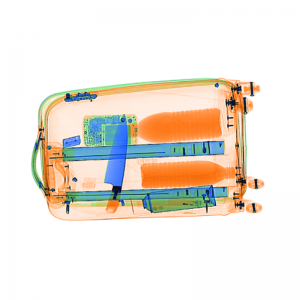

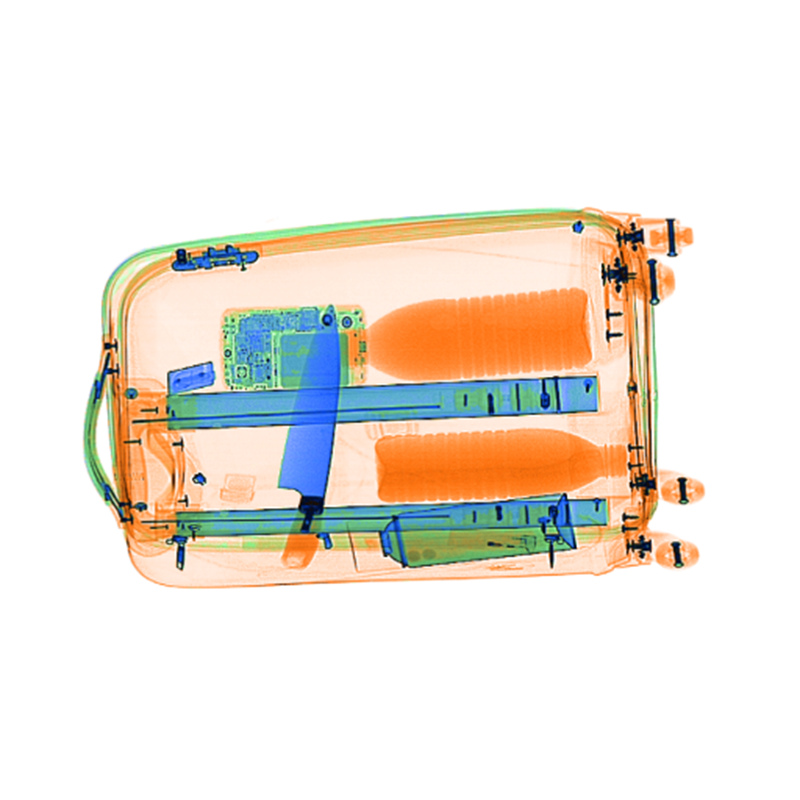

Packet drawing of a standard machine

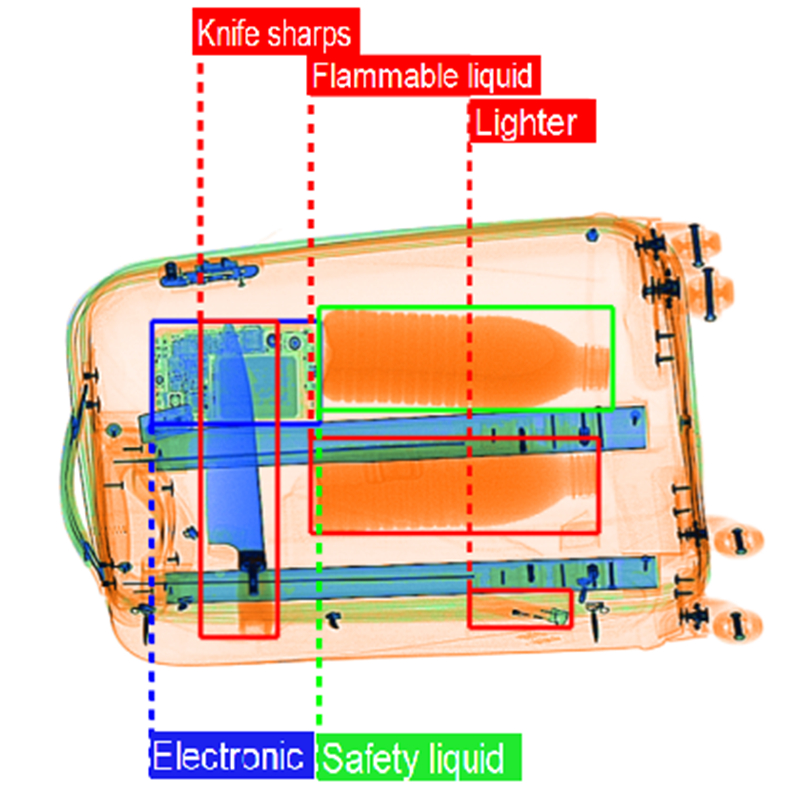

The packet map after installing AI judge map and liquid recognition function
General Specifications
| Dimensions | 1690mm(L)×790mm(W)×1210mm(H) |
| Tunnel size | 505mm (W) × 305mm (H) |
| Conveyor speed | 0.20 m/s |
| Conveyor height | 752mm |
| Weight | 302Kg |
| The conveyor belt is evenly weighted | 80kg |
| Storage temperature / humidity | -40℃ ± 3℃ ~ +60 ℃ ± 2℃ / 5% ~ 95% (no condensation) |
| Operating temperature / humidity | 0℃ ± 3℃ ~ + 40 ℃ ± 2℃ / 5% ~ 95% (no condensation) |
| Power | AC220 V (-10% to + 10%), 50Hz ± 3Hz |
| Power consumption | 0.4kVA |
Basic Specifications
| Penetration | 38mm Steel |
| Wire resolution | 40AWG |
| Penetration resolution | 34AWG |
| Spatial resolution | horizontal Ф1.0mm vertical Ф1.0mm |
| Through rate | 720pcs/h |
| Dose per check | ≤1.5μGy |
| Leak radiation dose rate | ＜0.5μGy/h |
| Noise | < 55db |
X-ray Generator
| Generation direction | Bottom-Top |
| Tube voltage | 120~160kV Adjustable |
| Tube current | 0.3~1.2mA Adjustable |
| Cooling mode/ duty cycle | Sealed oil / 100% |
| Generation angle | 80 ° |
Image Processing System
| X-ray sensor | Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green |
| Display | 24 "Philips HD LCD display |
Feature
| Image processing function | Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc. |
| Auxiliary function | One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc. |
| Extended function | AI intelligent assisted map judgment, automatic identification of dangerous liquid, energy-saving automatic dormancy of conveyor belt, security door linkage function. |
Quality
● International brand electrical components
● Industrial PLC circuit control, electromagnetic compatibility special requirements
● Capacitor integral analog-digital conversion, the image is clear and subtle
● Industrial computer, the system is stable and reliable for a long time
● human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background

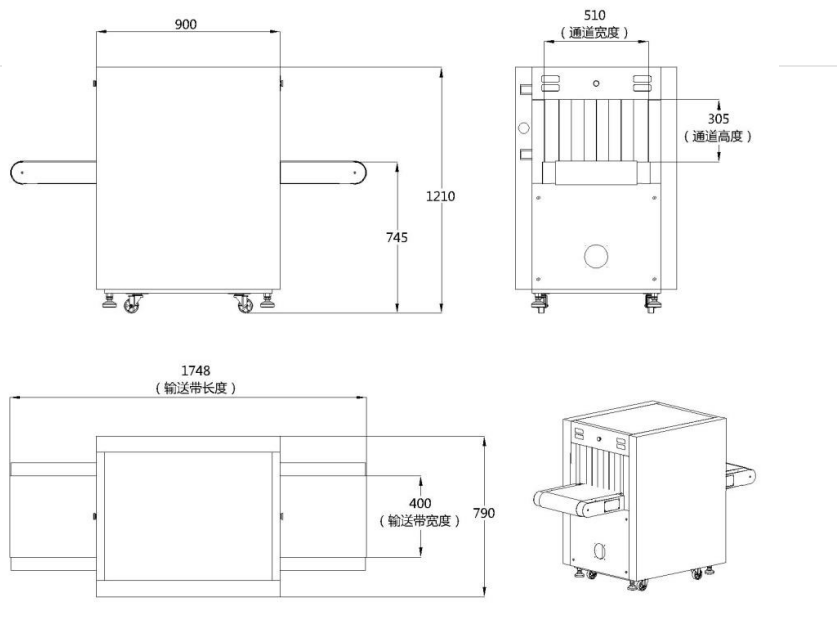

Dimension

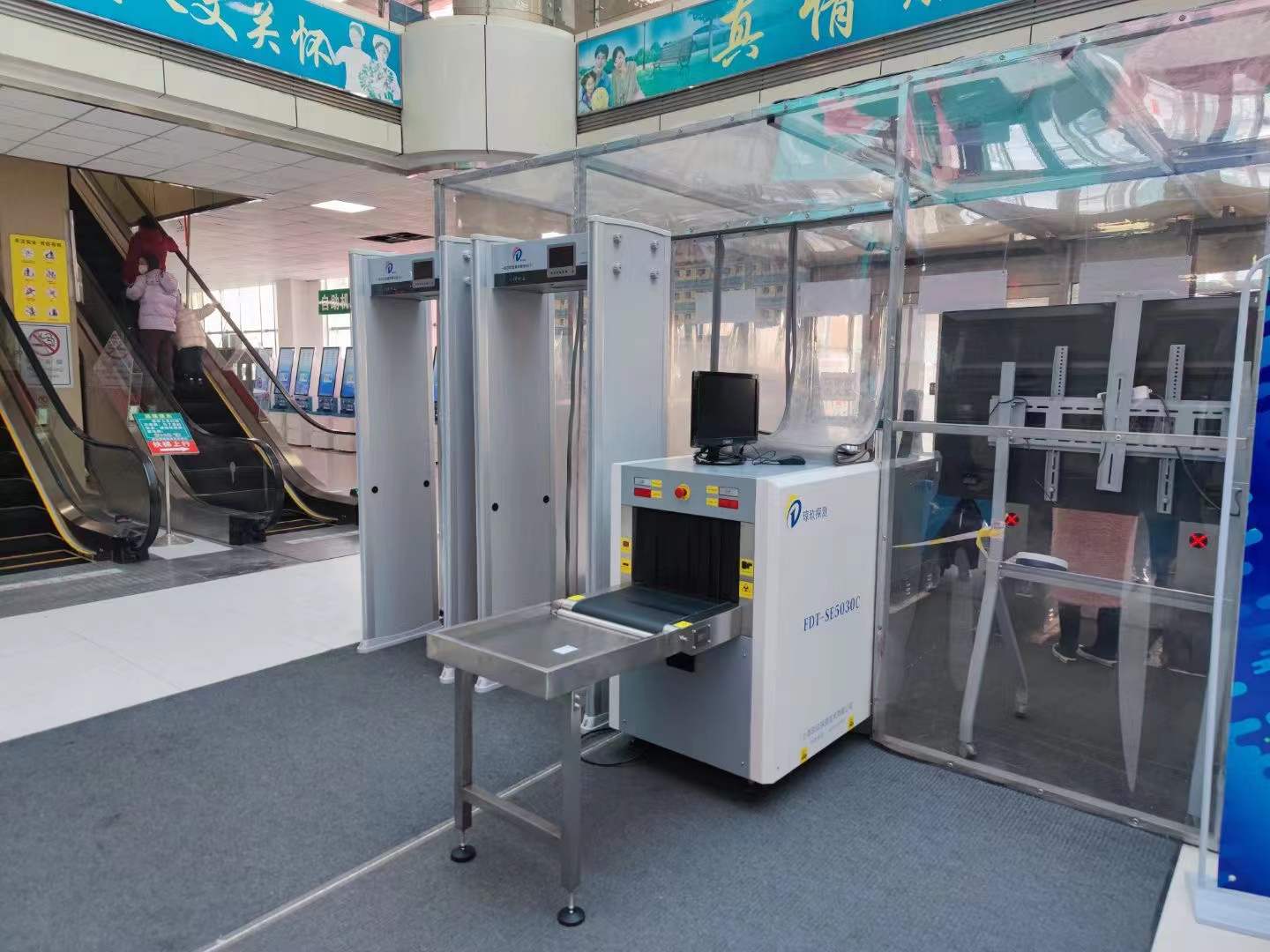

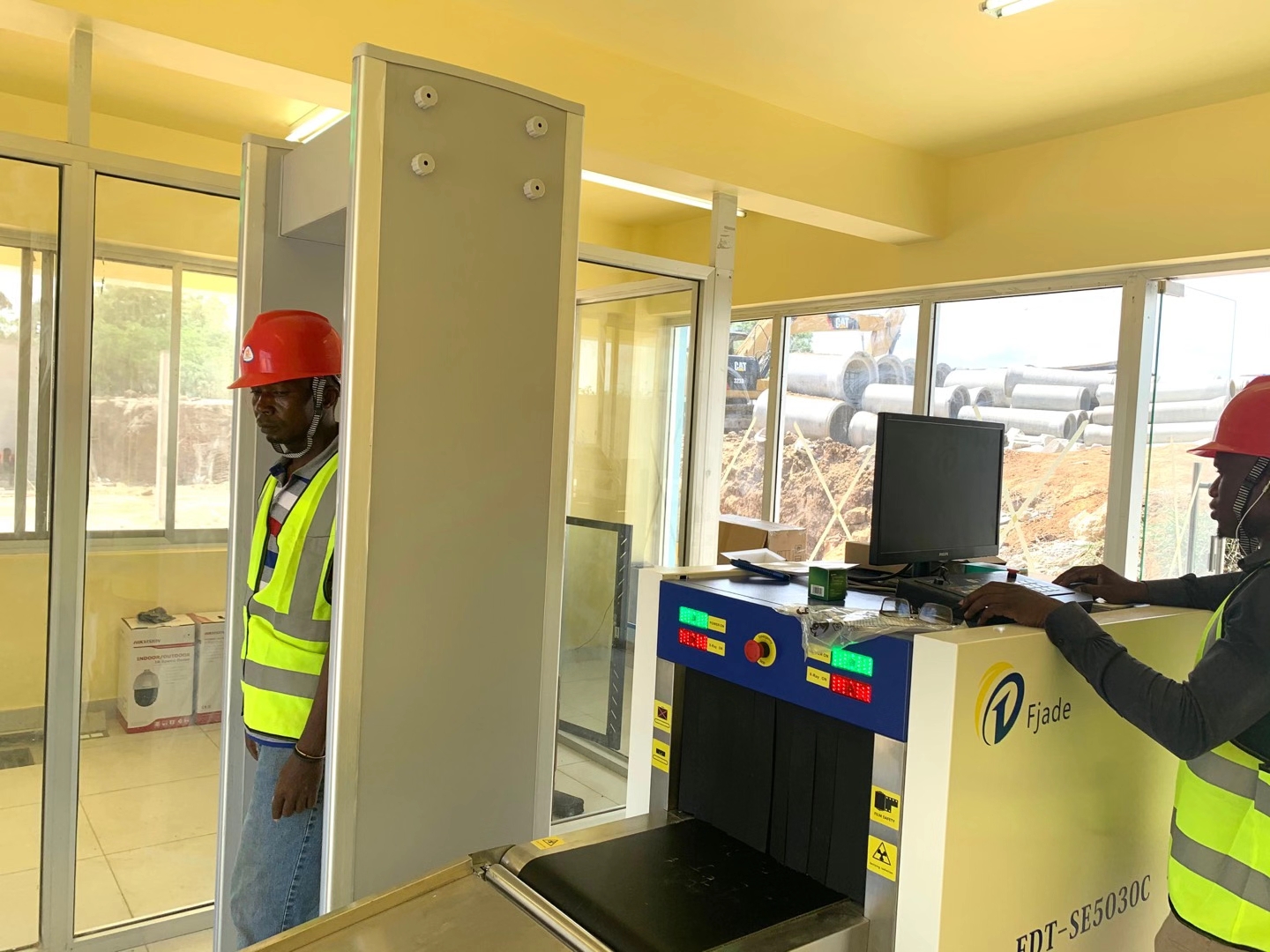

Case display
