X-ray Baggage Scanner Dual View & Dual Energy FDT-SE6040D
Applicable to
FDT-SE6040D X-ray Baggage Scanner Dual View & Dual Energy is widely used in the public place security inspection of baggage, goods and package. Such as government buildings, high-end office buildings, star-rated hotels, subways, courts, procuratorates, prisons, drug rehabilitation centers, detention centers, factories, mines, secrecy bureaus, petition offices, public security checkpoints, military barracks, museums, art galleries, memorial halls, stadiums, exhibitions Center, railway/high-speed rail re-examination channel, VIP channel, convention center, cruise terminal, customs port, embassy, tourist attraction, international conference / NPC CPPCC meeting (rental).
General Specifications

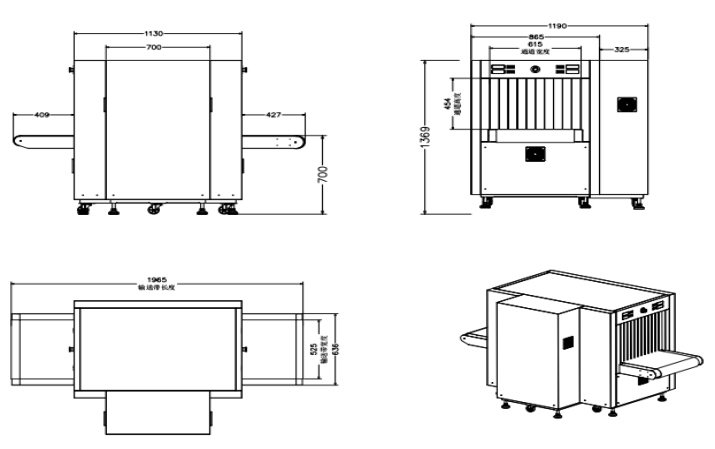

Dimensions: 1965mm(L)×1190mm(W)×1369mm(H)
Tunnel size: 615mm (W) × 454mm (H)
Conveyor speed: 0.20 m/s, 0.30 m/s, 0.40 m/s
Conveyor height: 700mm
Weight: 443Kg
Storage temperature / humidity:
-40 ºC ± 3 ºC ~ +60 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ºC ± 3 ºC ~ + 40 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.63kVA
Basic Specifications
Wire resolution: Bottom view Angle: 40AWG
Side view Angle: 40AWG
Penetration resolution: Bottom view Angle: 32AWG
Side view Angle: 32AWG
Spatial resolution: Bottom view Angle: horizontal Ф1.0mm vertical Ф1.0mm
Side view Angle: horizontal Ф1.0mm vertical Ф1.0mm
Penetration: Bottom view Angle:34mm Steel(140KV) 43mm Steel(160KV)
Side view Angle: 38mm Steel(140KV) 43mm Steel(160KV)
Noise: < 55db
X-ray Generator
Generation direction: Bottom-Top & Side to Side
Tube voltage: 100~160kV Adjustable
Tube current: 0.4~1.25mA Adjustable
Cooling mode/ duty cycle: sealed oil / 100%
Image processing system
X-ray sensor: L-shaped photodiode detector
Display: 17-inch high-definition LCD display
Function
Image Processing Function:
Color / Black & White, Organic / Inorganic, Super Enhancement, Edge Enhancement, Partial enhancement, Grayscale scanning, Image restoration, Reverse display, Continuous amplification, Zoom in / out, High / low energy penetration, Image pullback, Continuous observation, Image storage（> 100,000 pic.), etc.

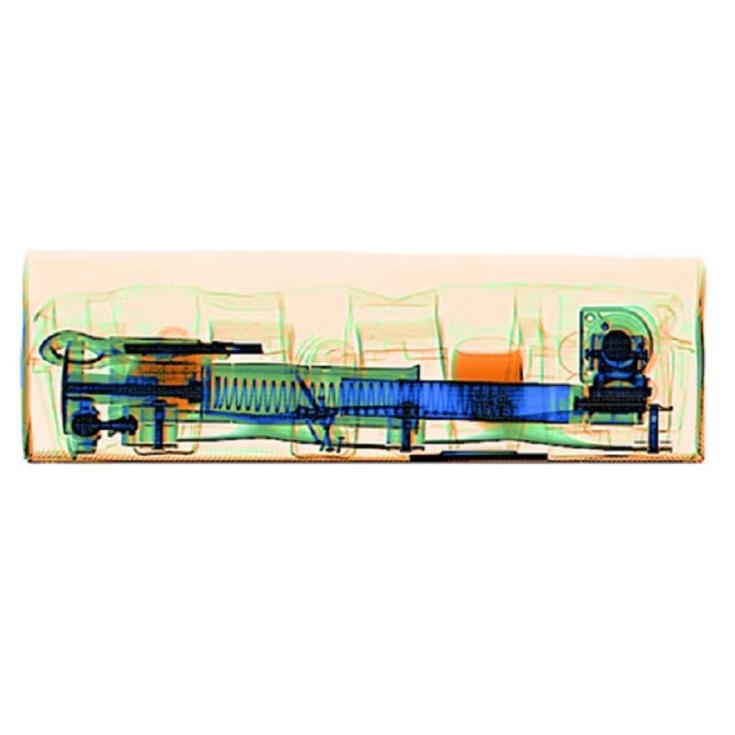

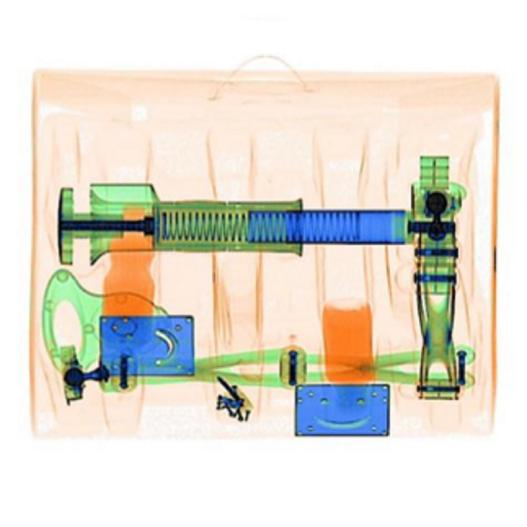

Multi-energy penetration: Organic matter is shown in orange, inorganic is shown in blue and mixture is shown in green.
Miscellaneous Function:
One key shut-down, impenetrable alarm, explosives & drugs auxiliary examination, power-on self-test, hardware maintenance diagnosis tips, AI artificial intelligence assisted judgment image system, dangerous liquid automatic recognition system, walkthrough metal detector access system, face recognition access system, etc.
Quality
● International brands of electrical components: ABB, Schneider, Omron.
● Industrial PLC (Mitsubishi) electronic circuit control, electromagnetic compatibility special level requirements.
● Capacitance integral analog-to-digital conversion, image clear and micro.
● Industrial grade computer, the system is stable and reliable for a long time.
● Human engineering principle reading diagram system, anti – fatigue.
● Radiation protection, close to natural background.
● International brand (Interoll) electric roller, easy replacement, no conveyor.
● Rotary rack, cantilevered display, easy to install and power up in 10 minutes.

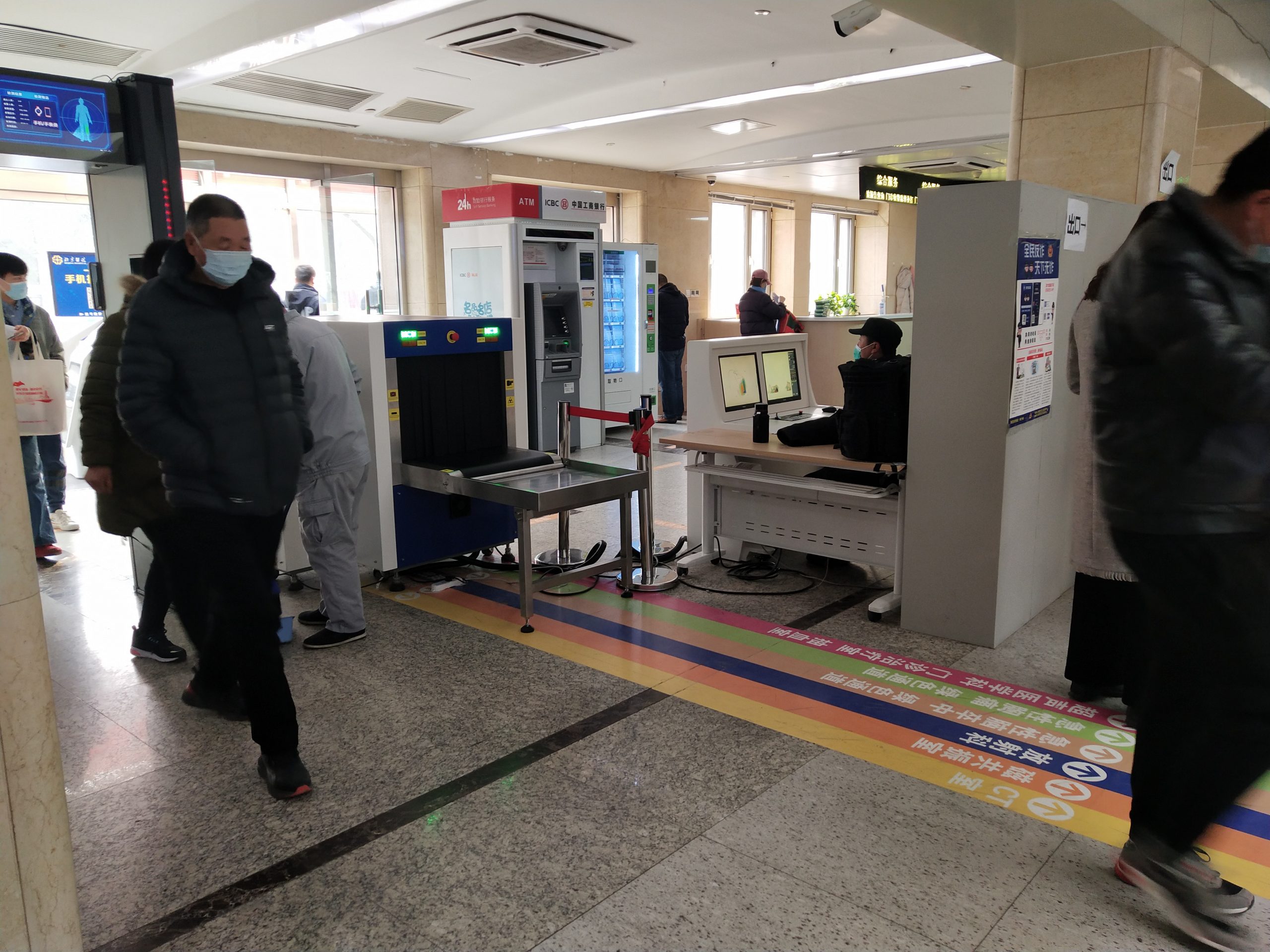

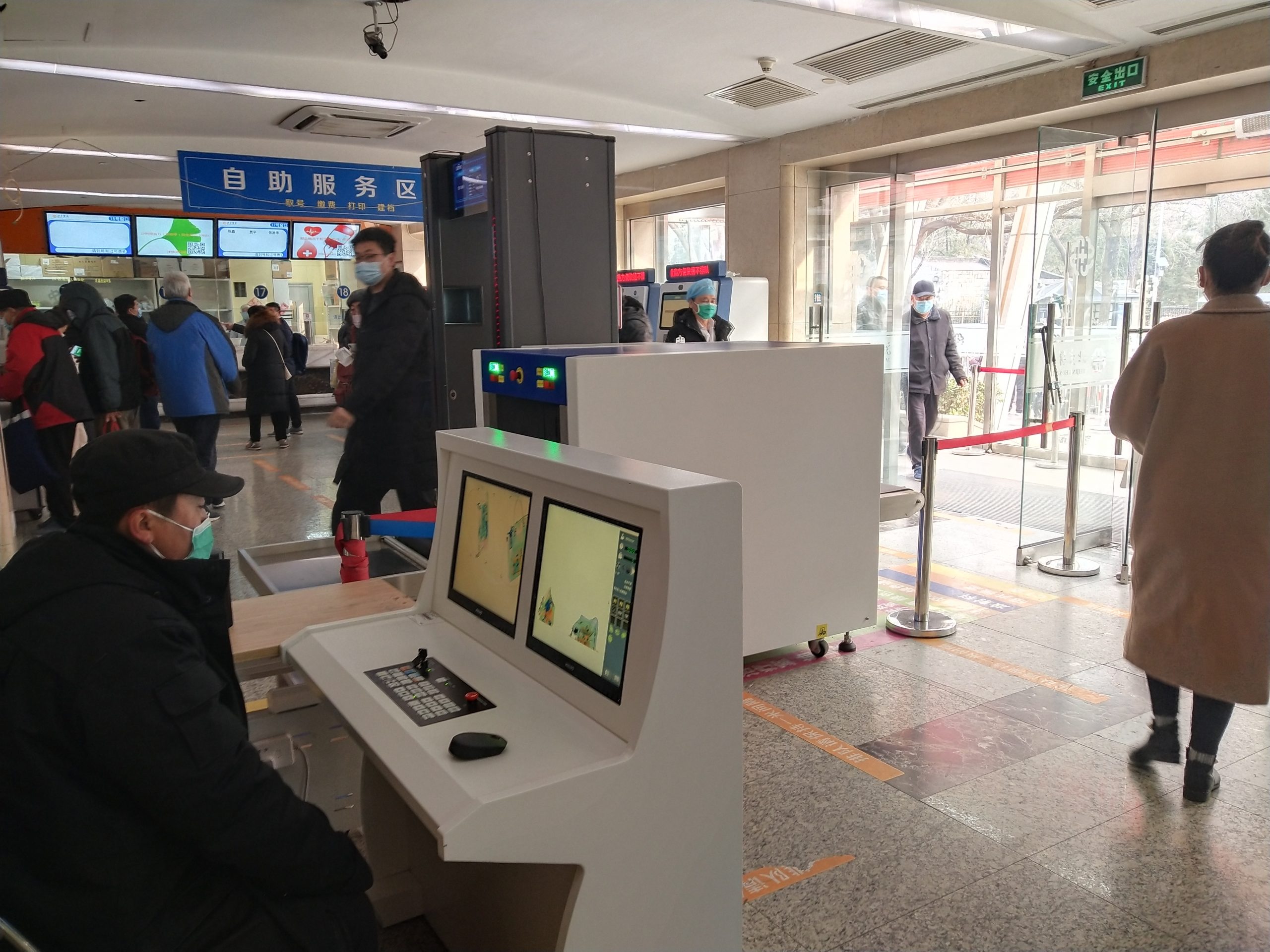

Case display
