Walkthrough Metal Detector FDT-WT300

Short Description:

to detect the extremely small metals (≥ 6 grams Metal) hidden inside the human body such as razor blades, paper clips, electronic chip etc. This kind of metal detector is widely used in Government agencies, procuratorates, courts, prisons, customs, airports, subways, passenger stations, electronics factories, banks, stadiums, exhibition venues, entertainment venues, large gatherings, and other factory or enterprise engage in hardware and electronics, jewelry, military, coinage, etc.


Product Details

Product Video

Application

to detect the extremely small metals (≥ 6 grams Metal) hidden inside the human body such as razor blades, paper clips, electronic chip etc. This kind of metal detector is widely used in Government agencies, procuratorates, courts, prisons, customs, airports, subways, passenger stations, electronics factories, banks, stadiums, exhibition venues, entertainment venues, large gatherings, and other factory or enterprise engage in hardware and electronics, jewelry, military, coinage, etc.

General Specifications

Power Supply: AC85V-264V
Work environment: -20℃--+50℃
Work Frequency: 4KHZ—8KHZ
External Dimension: 2200mm(H)X800mm(W)X500mm(D)
Passageway Dimension: 2010mm(H)X700mm(W)X500mm(D)
Chassis specification: 2260*645*235mm *1ctn
Main Case Packing: 2420*740*235 mm*1ctn
Net Weight: 72KG

Performance Parameter

1. Panel display function:The number of people passing through and the number of alarms are counted separately. The front pillars of the security door are equipped with LED lights to indicate the location of prohibited items.
2. Portable metal objects can be excluded: It can be used to exclude bras, buttons, belts, jewelry and other metal that carried with you.
3. Accurate positioning: The detection area can be divided into 18 areas to detect the human body. The overlapping network detection area can be divided into two sides to transmit and receive, which can accurately locate the detected object and visually display the position of the target object. Accurately determine the hiding location of metal objects. According to the requirements, modify and set the parameters of the sensitivity of each detection defense area and the overall height/size of the detection door, so as to meet the needs of users to detect objects of different sizes in different places.
4. Visible and audible alarming function: Multi-location simultaneous detection and alarm: the alarm can be given according to different locations of metal distribution.
5. Adjustable sensitivity function: 0-100(100 levels) the more levels, the more delicate the sensitivity adjustment, and the metal objects can be effectively excluded.
6. Pedestrians walkthrough detection video system (optional): built-in camera to record the passing person.
7. The power-on self-test function: when the door is activated, the system will automatically detect and diagnose the main control system, the detection system of the left and right detection door panels, the infrared device system, each zone probe, each external device and port, without initial or periodic calibration, ie Plug and play, easy to operate.
8. Password protection function: Double password protection, only authorized personnel can operate, password can be modified as needed, and password loss recovery settings are provided, which is more secure.
9. The use of digital, analog and left & right balance technology to prevent false alarms and false negatives, greatly improving the anti-interference ability.
10. Comply with EMC electromagnetic radiation standards, using weak magnetic field technology, harmless to pacemaker wearers, pregnant women, floppy disks, film, video tapes, etc.
11. Waterproof performance: The power supply of the whole machine is placed at the top of the main unit, which is more waterproof. Waterproof foot cover: not only can fix the door body, but also waterproof.
12. Made of PVC synthetic material special process, waterproof, fireproof and shockproof.
13. Easy assembly: the system is an all-in-one design that can be installed or removed in just 10 minutes.

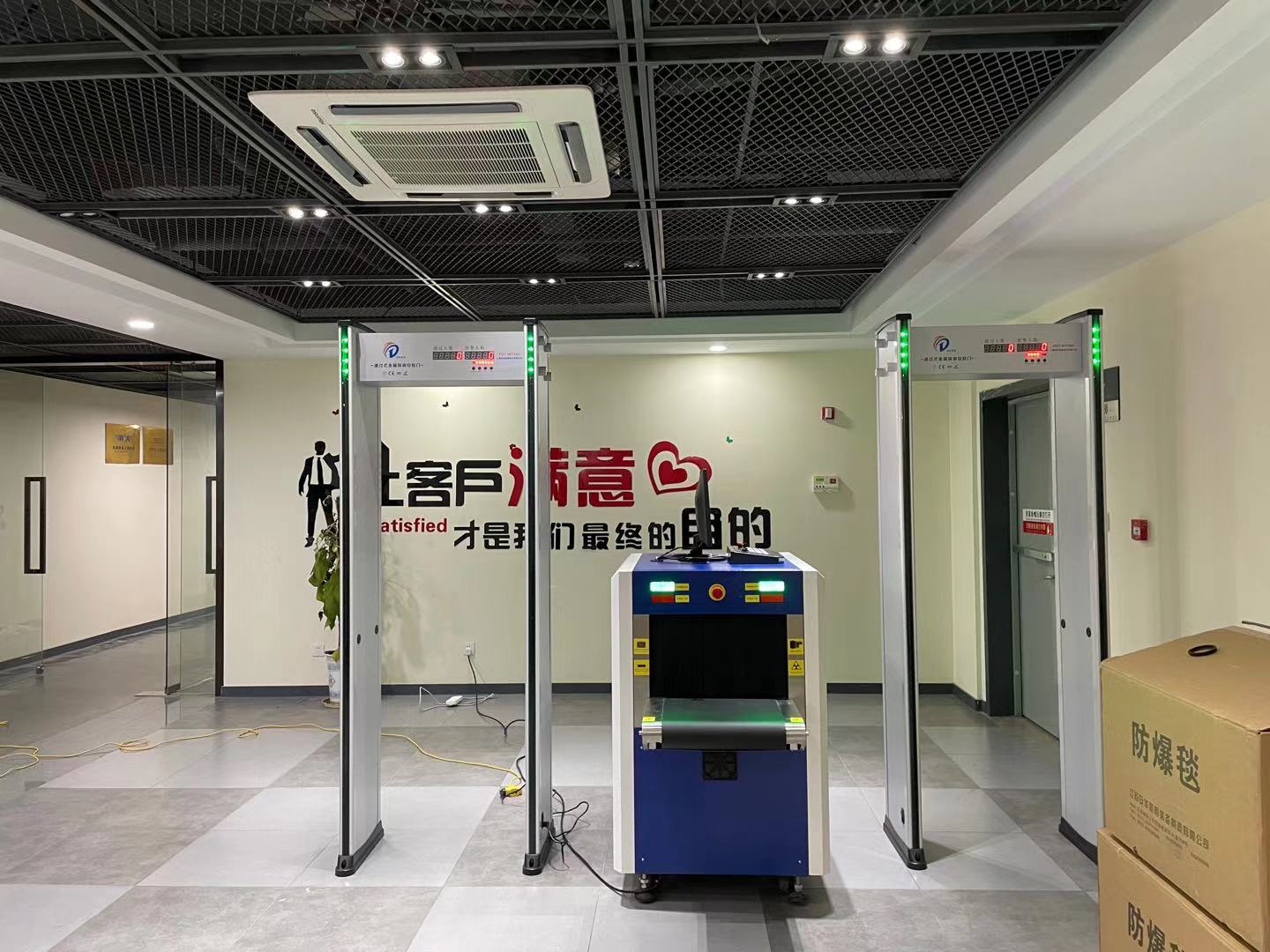

Case display
