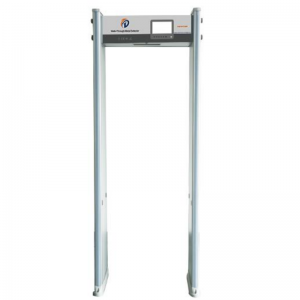

Walkthrough Metal Detector FDT-WT100
Application
To detect the extremely small metals(≥ 6 grams Metal) hidden inside the human body such as razor blades, paper clips, electronic chip etc. This kind of metal detector is widely used in airport, railway station, subway station, workshop, big exhibition etc.
Features
● Anti-electromagnetic interference: DSP digital signal processing technology is adopted to automatically scan and detect the mechanical and electromagnetic interference in the installation site environment, automatically adapt to the working environment, and have high immunity to electromagnetic and mechanical interference; No need for periodic adjustment, greatly improve the ability of dry resistance;
● Boot self-diagnosis: Fault display, all control information and settings can be controlled from the selection menu and control panelc.Use LED side diffusion alarm method, can distinguish the metal size.
● The 7-inch LCD display menu is displayed, the Chinese and English menus are optional, and the background environment interference signal is displayed on the LCD screen in real time for targeted adjustment during installation. e.7-inch big LCD color screen with graphic operating interface.
● Equipped with intelligent passenger counters of flow and alarm, two-way counting in and out, real-time automatic display of the number of recorded alarms and the number of passer
● Password protection only allows authorized personnel to operate and is more secure.
● No radiation device and low voltage work so that no harm to the heart pacemaker wearer, pregnant women, magnetic media and other personnel.
● Passed the test of the Ministry of Public Security and obtained CE, FCC, RoHS and other
General Specifications
Operating Voltage: 12V DC
Input voltage: 110V/220V AC 15% 50/60Hz
Work environment: -20℃~+55℃ 20%~93%RH
Power: ≤10W（Minimum power consumption in the world）
External Dimension: 2220mm(H)X830mm(W)X580mm(D)
Passageway Dimension: 2000mm(H)X710mm(W)X580mm(D)
Net Weight: 65KG
Performance Parameter
● Detection mode: The detection mode is optional and detects all magnetic and non-magnetic metals.
● Flying object detection function: it can prevent personnel from passing objects through the security gate when they are not passing through the security gate;
● Partition detection function: It can be divided into 6 zones, 12 zones, 18 zones, and 33 zones (36 zones) according to the needs. It can detect multiple alarms at the same time and accurately determine the position of metal objects.
● Adjustable sensitivity range: 1000 levels sensitivity adjustable,0~999 level.
● Visible and audible alarming function: sound and light alarm simultaneously, support record max 99999 alarm times.
● Alarm query: can check the alarm record according to the date time, and the indicator light shows each alarm location information.
● Anti-interference force: digital circuit design, anti-omission of report, infrared anti-disturbance, and with strong anti-interference ability.
● Application: high – middle and low sensitivity adapts to all security check site quick debugging.
● With battery backup (Optional): battery power will not be less than 8 hours.
● Sensitivity self-adaptive: can identify the sensitivity according to person carried metal on when pass the walk through metal detector.
● Recognition function: use LED side diffusion display mode to inform the security staff of the metal objects size.
● Detection efficiency: The fastest detection per minute can pass 100 people, 5 minutes (sleep time can be set according to the need) No one will automatically enter the sleep mode through the system, the system will automatically wake up into the work mode when the personnel pass.
● Pinpoint detection: High-brightness LED warning light location indication, accurate positioning of hidden contraband parts, alarm light alarm time 0~9s adjustable.
● Fixed ID: each product has a fixed ID number.
● Multilingual display: can choose the appropriate language as needed.
● Calendar: can display Year, Month, Day, Hour and Minute.
● Manage encryption: effectively prevent data from being illegally modified or mis-operated, which may result in abnormal work.
● Alarm personalization setting: With 9 levels of different tones, the volume is adjustable from 0 to 10, and the distinguish settings is suitable for different time and different places. The alarm time is adjustable from 0 to 9s.

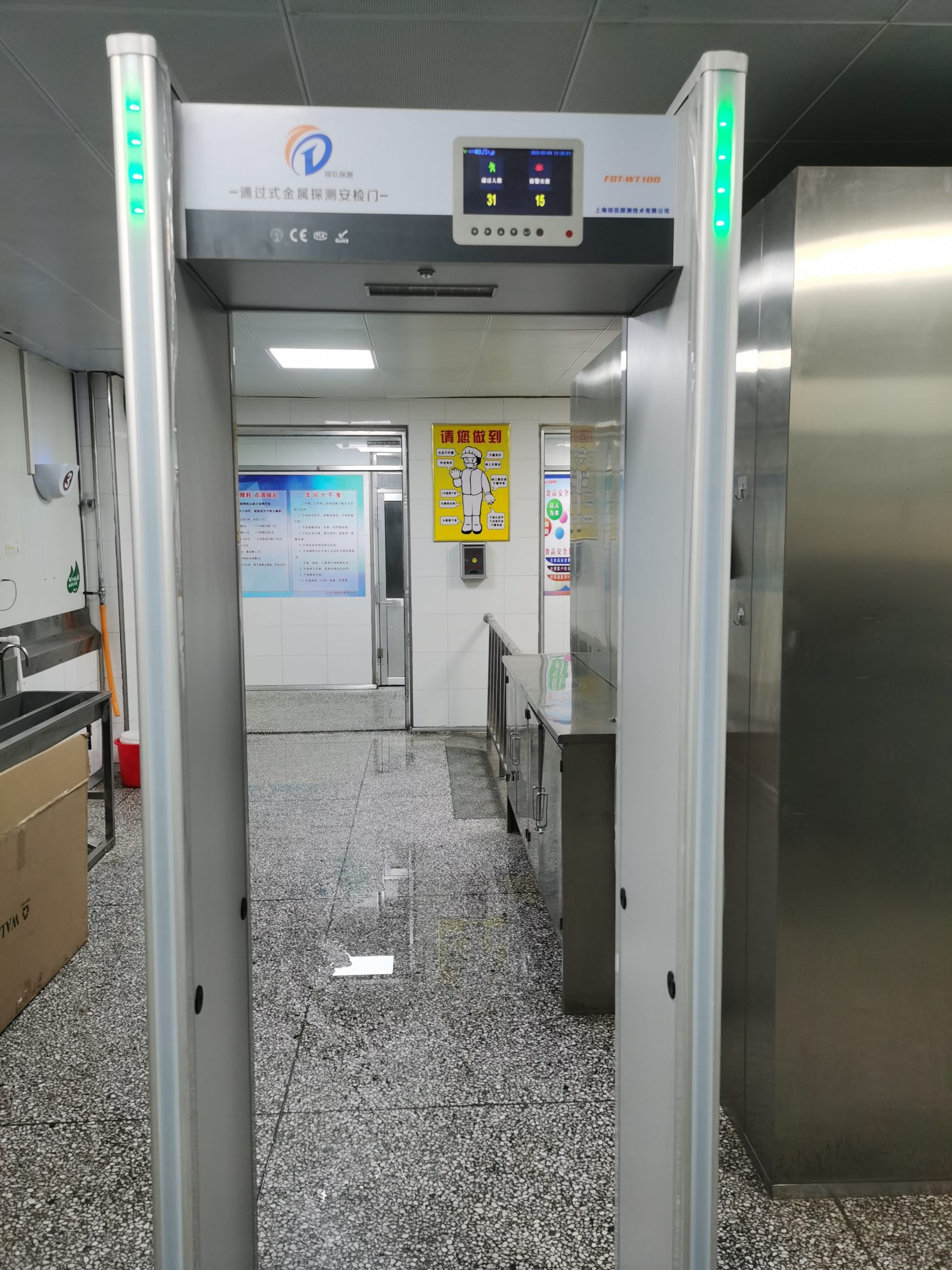

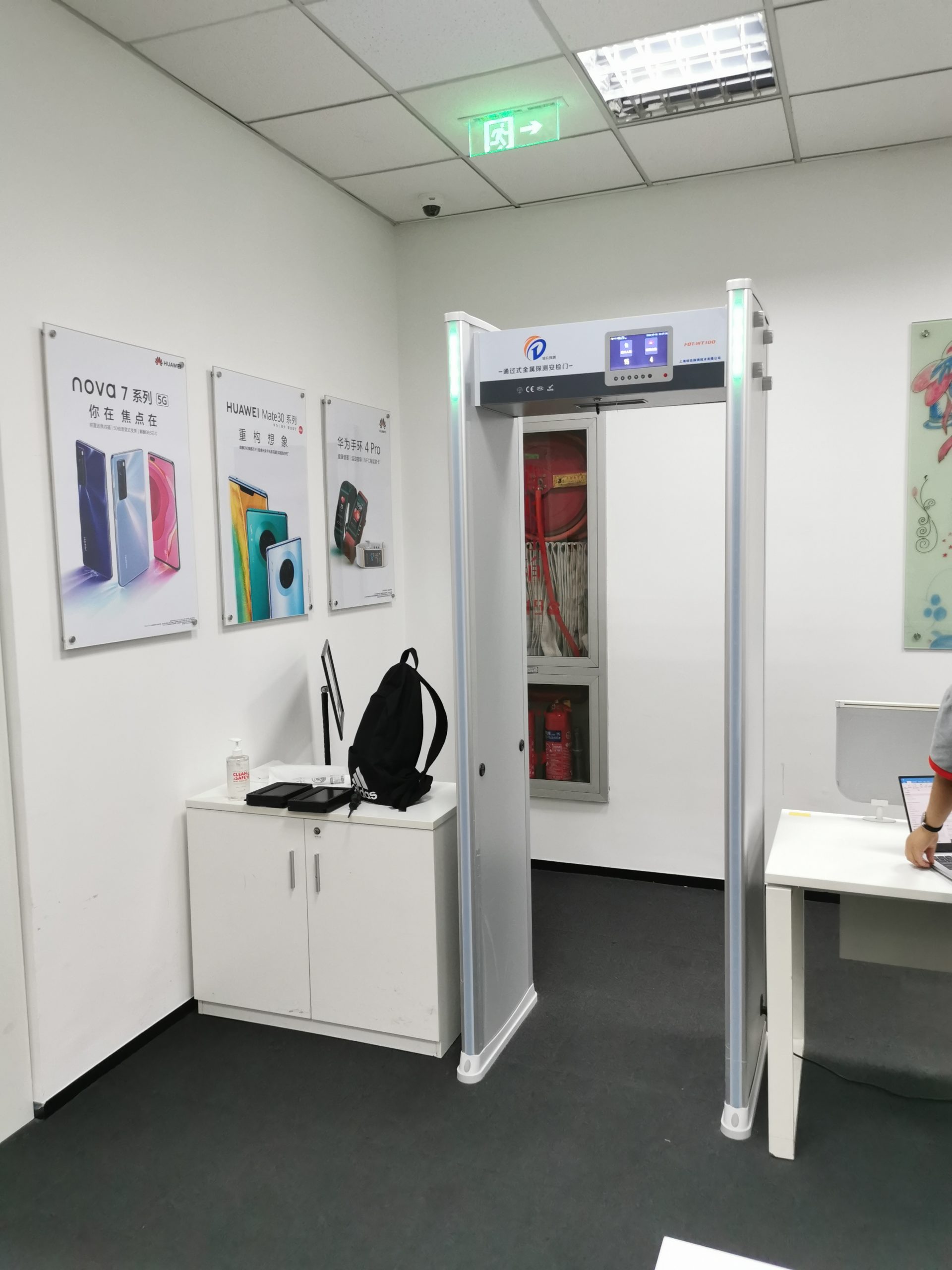

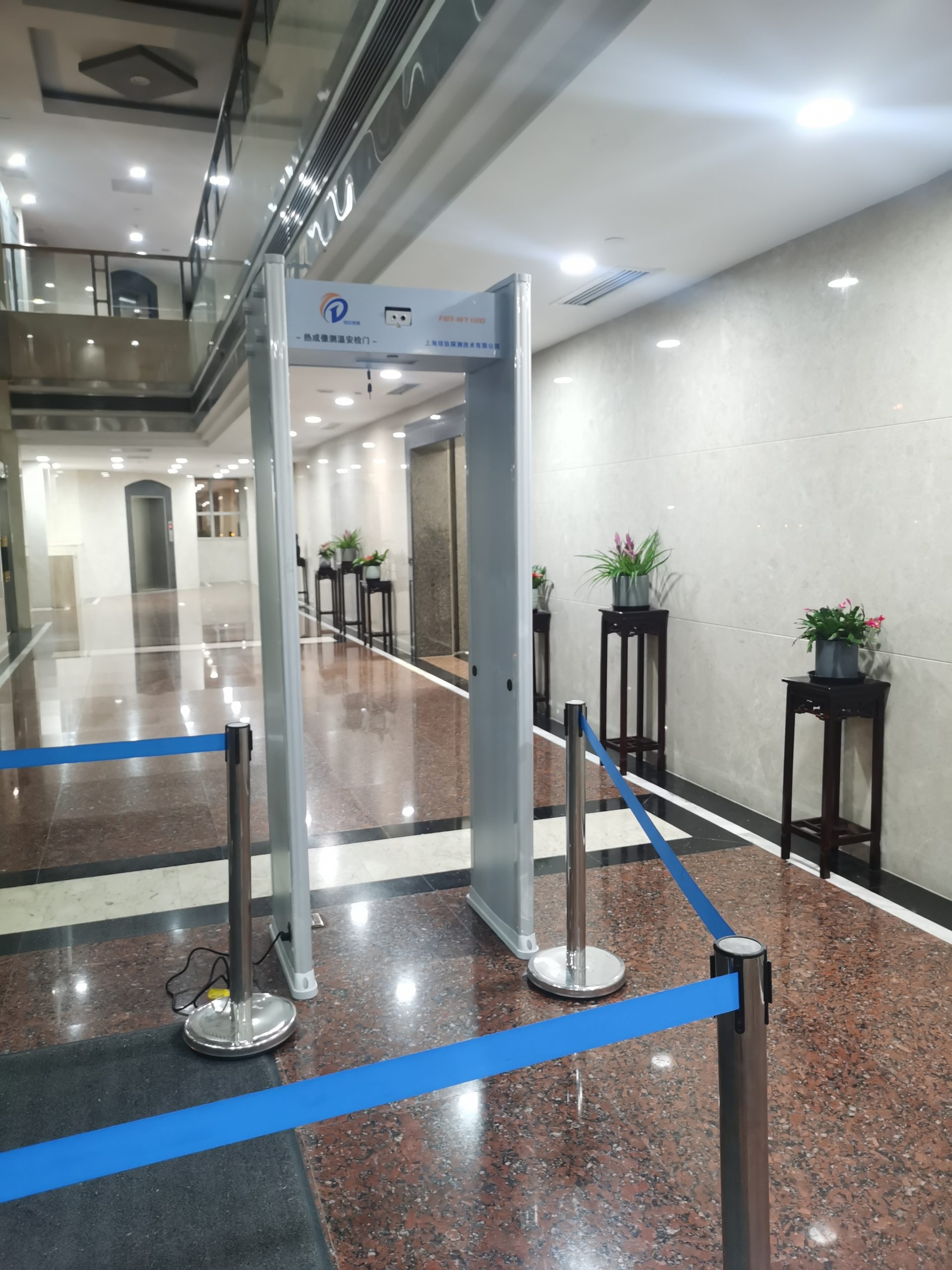

Case display
