Under Vehicle Inspection SystemFDT-FBS16
TDT-FBS16 Under Vehicle Inspection System is the fixed solution for the fully identification of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning units while Safeagle’s systems compile high-resolution images of a vehicle’s undercarriage to create the vehicle’s “fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the high-resolution monitor .

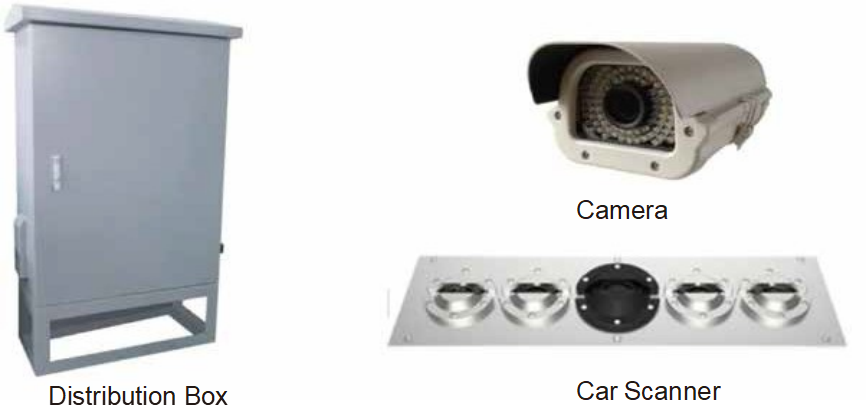

Under Vehicle Inspection System

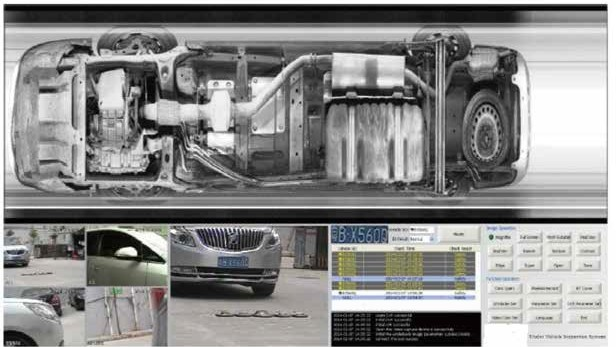

Software Interface

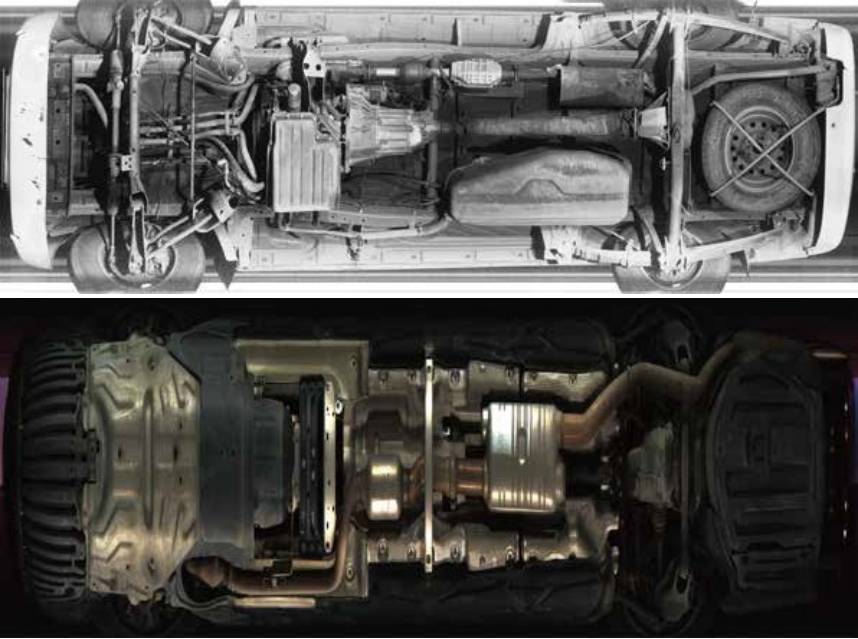

Full Scanning Image
Features
● Auto digital line scan, high-resolution undercarriage imaging
● Decision Response Time: 2-3 seconds
● Applicable to variety of vehicles, wide vision.
● Multi-Language Interface Design.
● IP68 high degree of protection, anti-seismic,adapting to any climate environment.
● Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
● Strong expansion capability, can easily achieve all kinds of linkage control(such as anti-collision system, barrier,etc.).
● Multi entrance management model, and statistics of entering and exiting vehicles.
● Flexible detection process can be made on site to satisfy the needs of various work conditions.
● Image monitoring, video recording for different scenario
● Undercarriage image can be stored, retrieved, searched or compared with other images.
● Whole image display ion monitor, can zoom, playback, sign in the images, stretching and cutting, etc.
● The image is automatically stored, deleted: Save not less than 10,000 pictures, expired pictures will be deleted automatically.
Advantage of UVSS
● Linear CCD scanning technology dynamic imaging; Scanning Mode: linear scan, ground coil trigger.
● No need to park vehicle, can bear speed below 30km/h
● Time of image display after scan <1s
● Image automatic save and automatic delete when hard disk is full
● Time of image saving or loading:<1s
Technical Specification

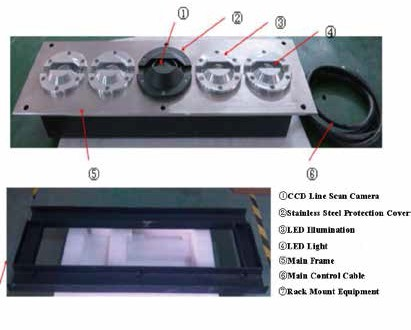

Embedded Frame
Material : stainless steel
Dimension: 1200mm x 350mm
Water-proof grade: IP68
Load bearing Weight: 50T
Image resolution : 12000 *6144
CCD Line Scan Camera:
● The maximum scanning rate:18kHz
● Type: B/Wimage
● Resolution: 5000* 2048pixels
● Image : Black/white (coloroptional)
● Power Supply: 24VDC,3A
● Transfer interface/distance:Gigabit Ethernet/100
● Sealed unit to protect against heat, dust,water and vibration
● Operating Temperature Range: -25 ℃ to +60 ℃
● One-way scanning /Double-way scanning
Computer
● Brand: Grantech (SYM76941 VGGA)
● CPU: Intel (R) CoreProcessor, 6GHz/2.59GHz
● Memory: 2G (optional4G)
● Graphics:512M
● Hard Disk: SATA2 Hard Disk 500G
● Dual LAN (at least one IntelGigabit)
● 0 (Up to 2 pieces)
● Monitor: 22’’ LCD, resolution up to1920*1080
● Scene Video Record: 4 channels,Compression algorithm of scene video: H264
● Operational system: Windows XP orWindows 7 (32 bit) (optional)

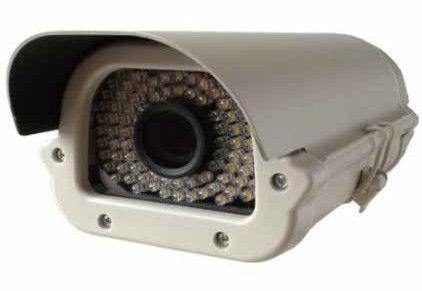

Vehicle Plate Number Capture Camera
Nigh vision, water proof and antifogging function
1)The imaging element,1/3″SONY ICX673 CCD
2)Resolution: 752(H)*582(V) & Horizontal
resolution: 700TVL
3)Signal to Noise Ratio: >48dB
4)Electrical shutter: 1/50—1/10,0000/s
5)White balance: Auto & Size: 8inch (292*140*102)
Distribution box :
● Input: 2 channels induction coil
● Output: 1 Channel switch type 12VDC
● Communication port: RS485, 1000M Ethernet (Optional)
● Operating Temperature: -25℃ to 60℃
LED Illumination:
● Power Supply: 24VDC, 320W
● LED light service life: 50,000 hours
● Operating Temperature Range: -25 ℃ to +60 ℃
Optional :
ALPR-Automatic License Plate Recognition software : via IP Camera captures license plate, ALPR software processing and automatically presents license plate on screen
Configuration list
| No. |
Device Name |
Unit |
Quantity |
Note（Main Device） |
| 1 | Vehicle Chassis Scanning System Software Part | set | 1 | Image Analysis Management Software |
| 2 | Car Scanning System Image Acquisition Part | set | 1 | Vehicle Chassis Image Equipment |
|
3 |

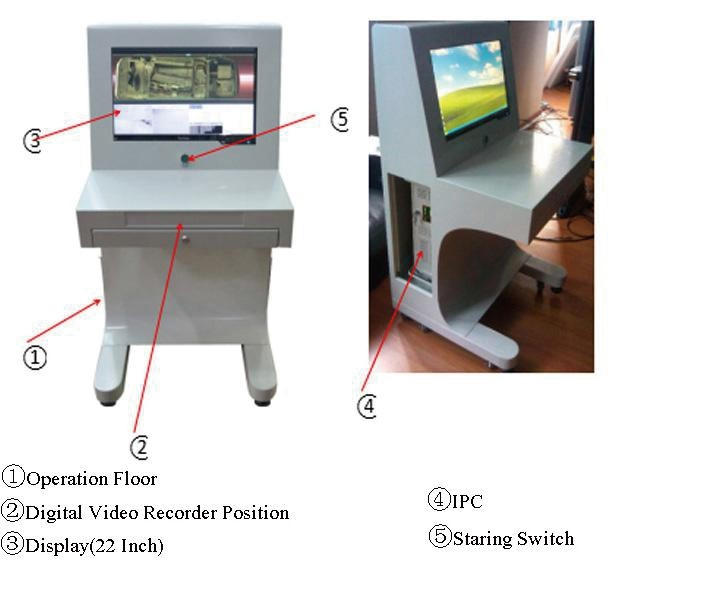

Car Scanning System Operation Floor |
set |
1 |
stribution Box & Induction Coil 10m (one way) |
| Under-body IO Distribution Box | ||||
| Power Control and Vehicle Detector | ||||
|
4 |
System Cabinet |
set |
1 |
System Host,Operation Floor |
| System Host | ||||
| LCD | ||||
| Outboard LCD Display（Optional） | pc | 1 | 50 Inch LCD TV | |
|
5 |
Vehicle Plate Number Capture Camera |
pc |
1 |
Video Cable&Camera Power Wire 30m
（Standard） With License plate recognition software （China Mainland） |
| 6 | Scene Monitoring System（Optional） | set | 1 | |
|
Built-in Backup Power (Optional) |
set | 1 | When AC power is not connected to the state, the equipment can work through the UPS backup power supply |
Auxiliary Materials and Accessories
| No. |
Device Name |
Unit |
Quantity |
Brief Introduction |
Note |
| 1 | Data Line
(Scanner cable to distribution box) |
pc | 1 | 10m（standard） | Optional |
| 2 | DataLine
(Control box to operation floor) |
pc | 1 | 30m（standard） | Optional |
| 3 | Power Wire of distribution box | pc | 1 | 3.5m（standard） | Optional |
| 4 | Power Wire of operation floor | pc | 1 | 3.5m（standard） | Optional |
| 5 | Tubing
(Scanner cable to distribution box ) |
pc | Dia.50mm Galvanized Pipe | Provide for oneself | |
|
6 |
Construction |
Cement: about 5 packs
Sand: 15 packs Installation: around 4 worker/ day （For Reference Only） |
Provide for oneself |

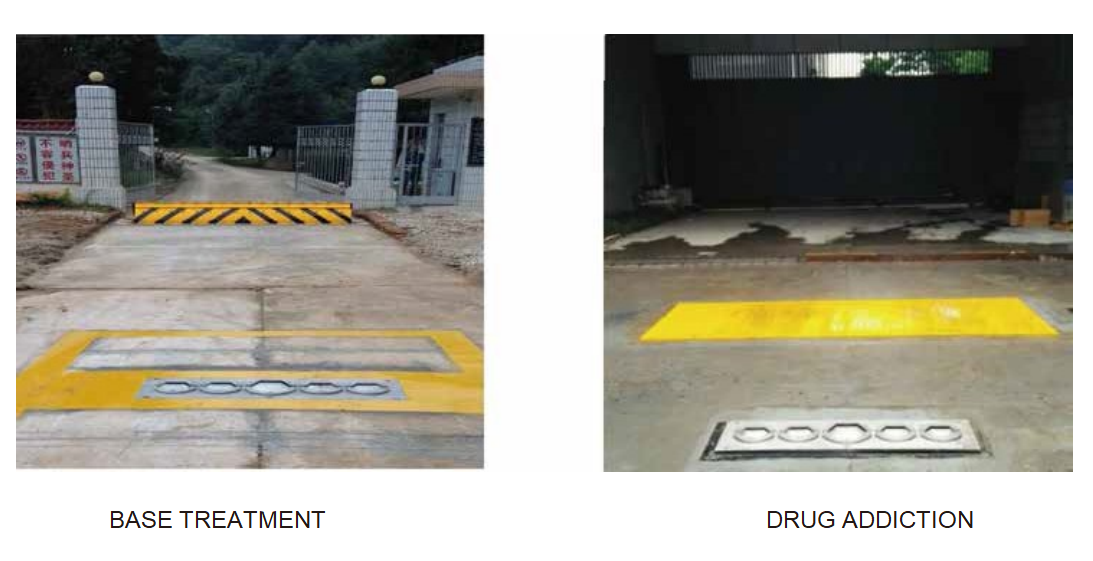

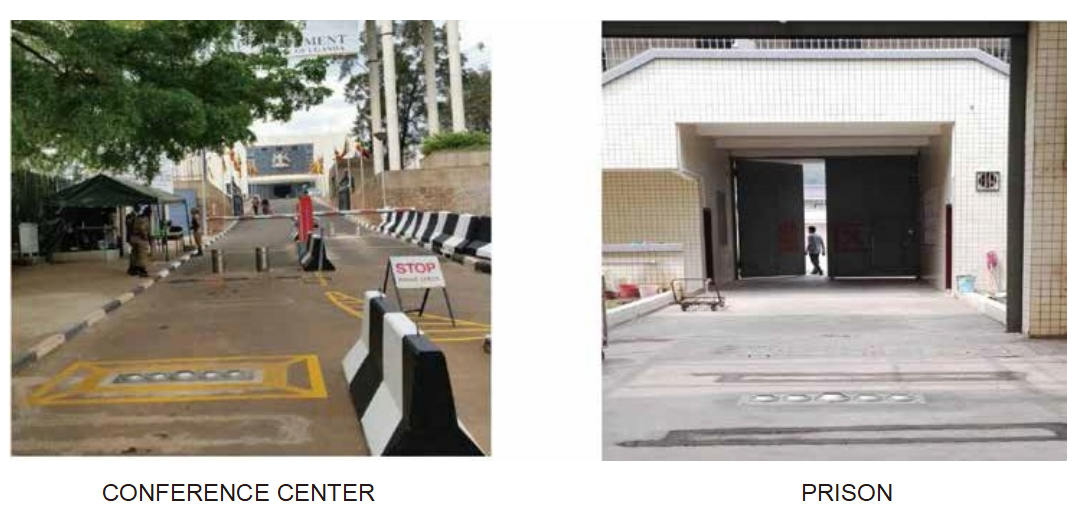

CASE
