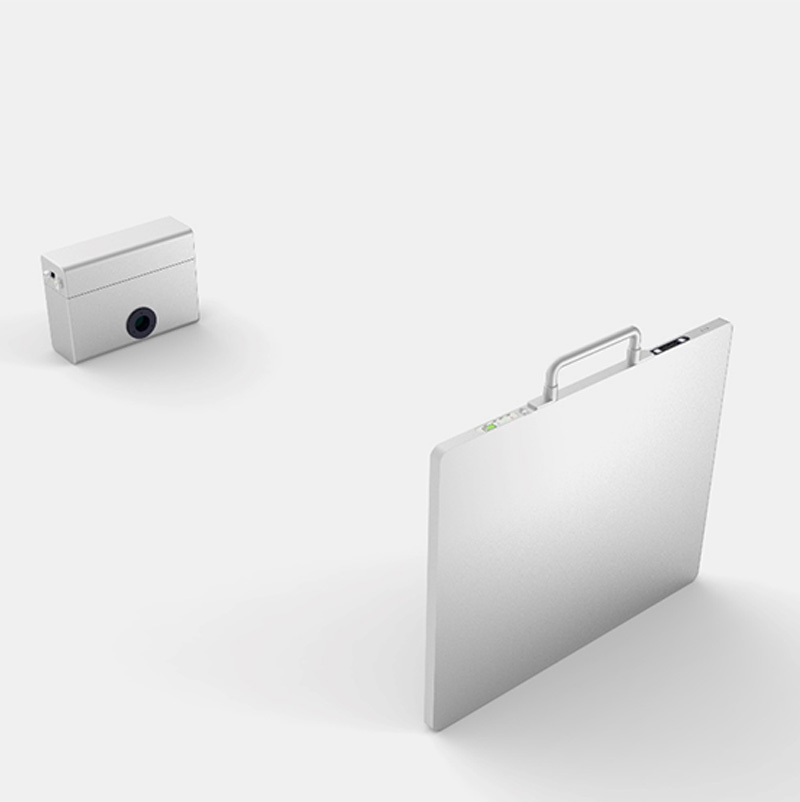

Ultra-thin, high-definition portable X-ray safety inspection equipmentFDT-RTPX100
Product Introduction
Our company independently researched and developed the portable X-ray security check system, which is small in size, light in weight, easy to carry and flexible. The total weight of the equipment is 22Kgs.It is very convenient and flexible to use in the narrow space, and it can quickly check out dangerous goods such as weapons, drugs and explosives hidden in packages, vehicles, daily and office supplies and other prohibited goods. It can be widely used in places such as explosion-proof security check, criminal technical investigation, mobile smuggling and drug enforcement, as well as sampling inspection of small products in factories.
Application scope and scene
● Police and military field workers at the scene of the security, vehicle, such as investigation, suspicious content (equipment, drugs, guns, knives and other objects) perspective observation, eliminate dangerous substance (such as explosive, explosion timer, gun control apparatus), increase the working efficiency of law enforcement personnel, reduce the risk of law enforcement personnel coefficient.
● Forensic autopsy, check whether there is a foreign body in the body, easy to remove the foreign body in the muscle when the clear location.
● Industrial sector NDT, such as aluminum castings, integrated blocks, FBT, etc.
● Security department, customs, post and telecommunications department security inspection.
Operating Principle
The X-ray generated by the portable X-ray source is imaged through the detected object in the detection box image collector, and then transmitted to the laptop for display and processing.
Main functional features
● The X-ray detection box is ultra-thin and portable, with a thickness of less than 15mm；
● The imaging area is very large, up to 430mm * 350mm, and each corner of a large bag can be detected by X-ray once.
● Detection efficiency is super, can greatly reduce the radiation dose;
● The X-ray detection box can be adjusted arbitrarily according to the shape and position of the detected object. It can be used for forward, side,reverse, upward and downward placement.
● Equipped with high power and high performance lithium ion battery, one charge, 600 suspected cases can be detected.
● Powerful image processing software can acquire X-ray perspective images in real time and provide powerful professional digital image processing functions.
● Both ac and dc power.After connecting 220V power supply, it can be used continuously for 24 hours.
● The equipment can work well under strong light and other harsh conditions.
Specifications
| Portable X-ray source parameters： | |
| Tube voltage | 30 Kv -120Kv |
| Tube current | 0.3mA—1mA Adjustable |
| Penetration | 25mm Steel Plate 60mm Aluminium Plate |
| Size | 245mm x 80mm x 184mm |
| Weight | 5.9KG |
| · Imaging panel parameters： | |
| Pixel pitch | 140 μm |
| Space Resolution | 3.6LP/mm |
| Time of drawing | 1S-3S |
| Image size | 430mm×350mm |
| working environment | 5-40 ºC,10-75% RH |
| Dimensions | 380×460×15 mm |
| Weight | 3.7KG |
| Power | 20W |
| Laptop parameters： | |
| Display Resolution | 1920×1080（15”） |
| Operating System | WIN10 |
| CPU | Intri i5 |
| Video card and hard disk | · 2G independent video card, 1T hard disk |

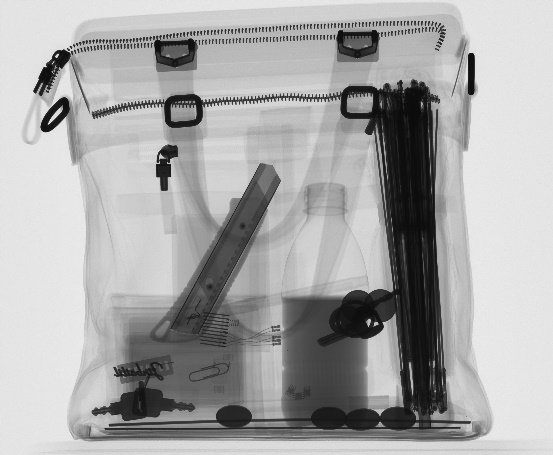

Test renderings

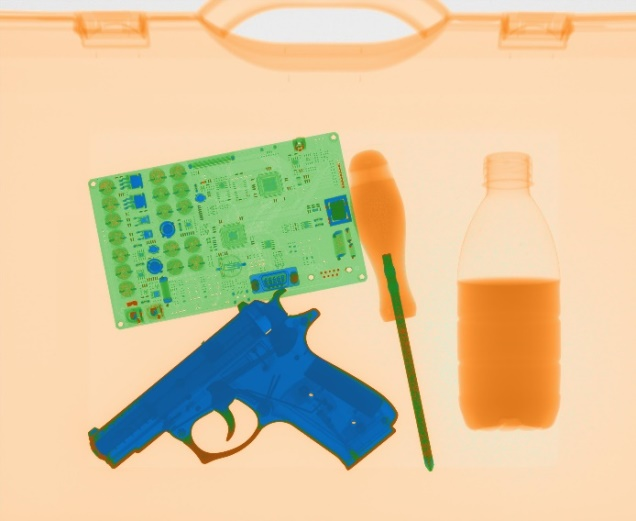

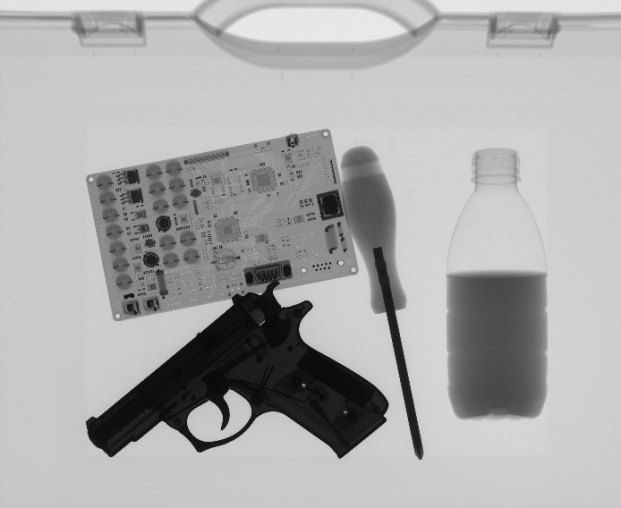

Baggage A
Test renderings

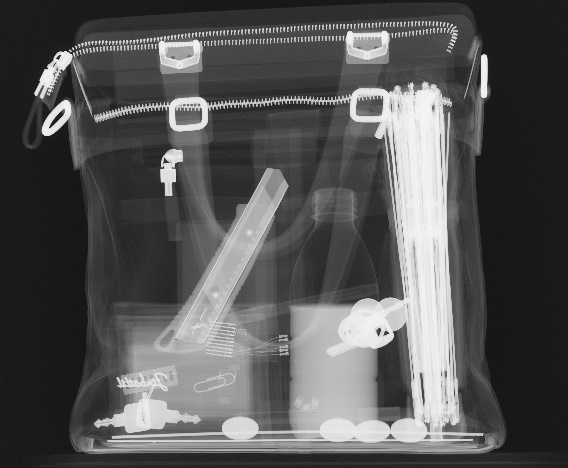

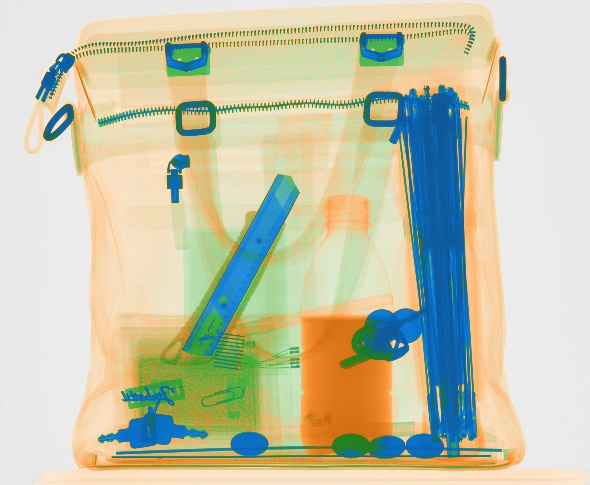

Baggage B

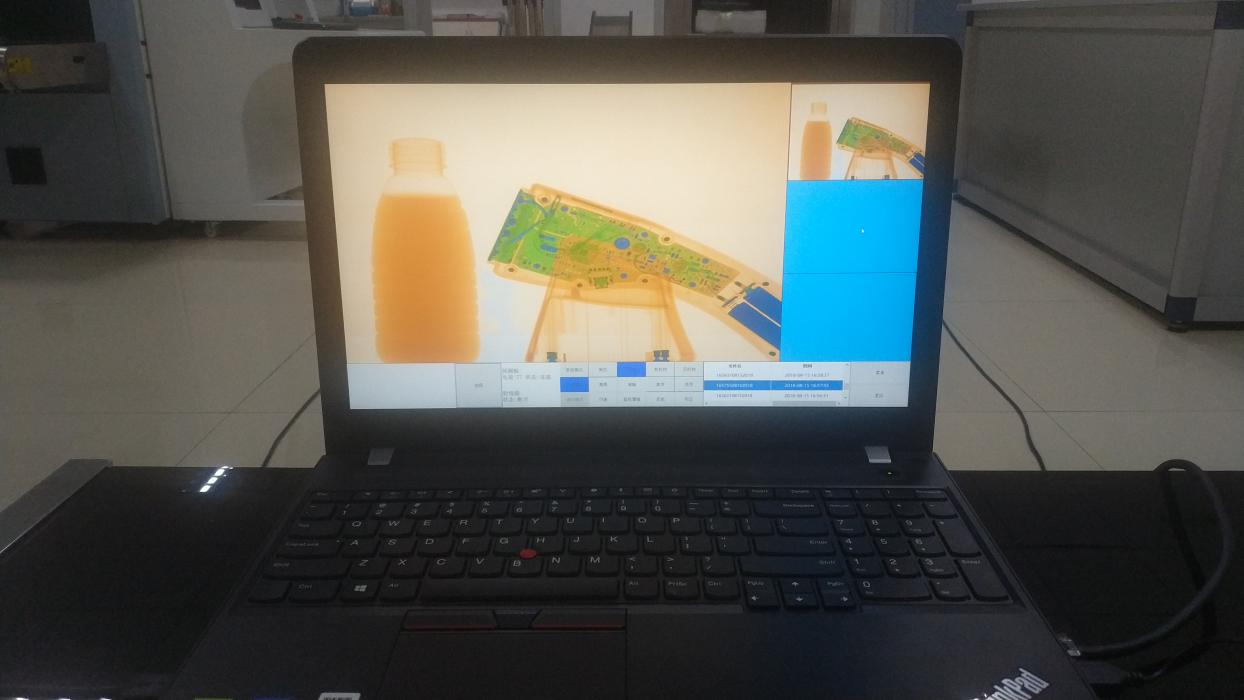

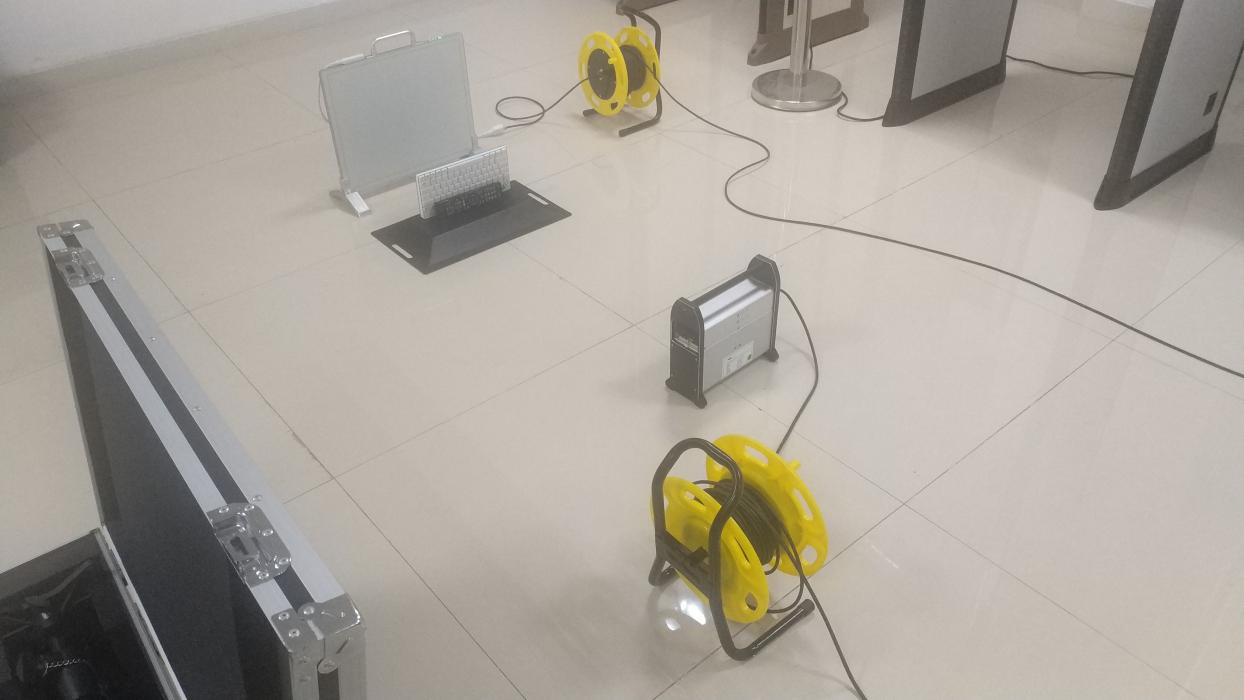

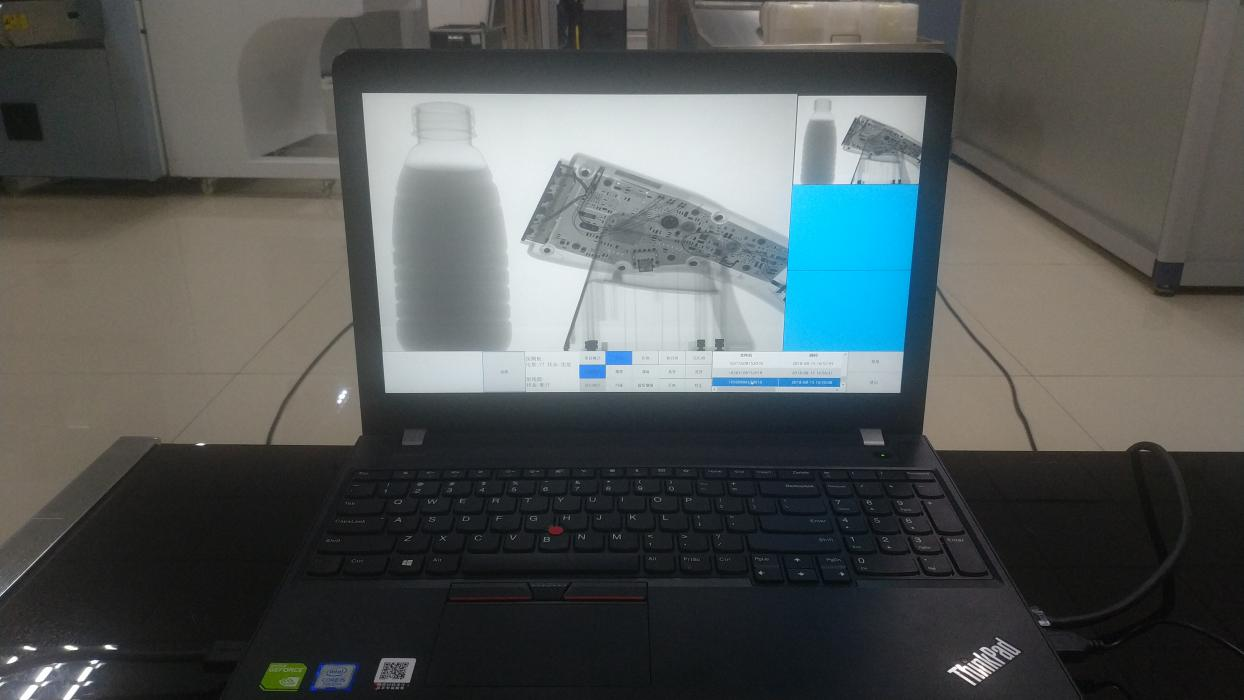

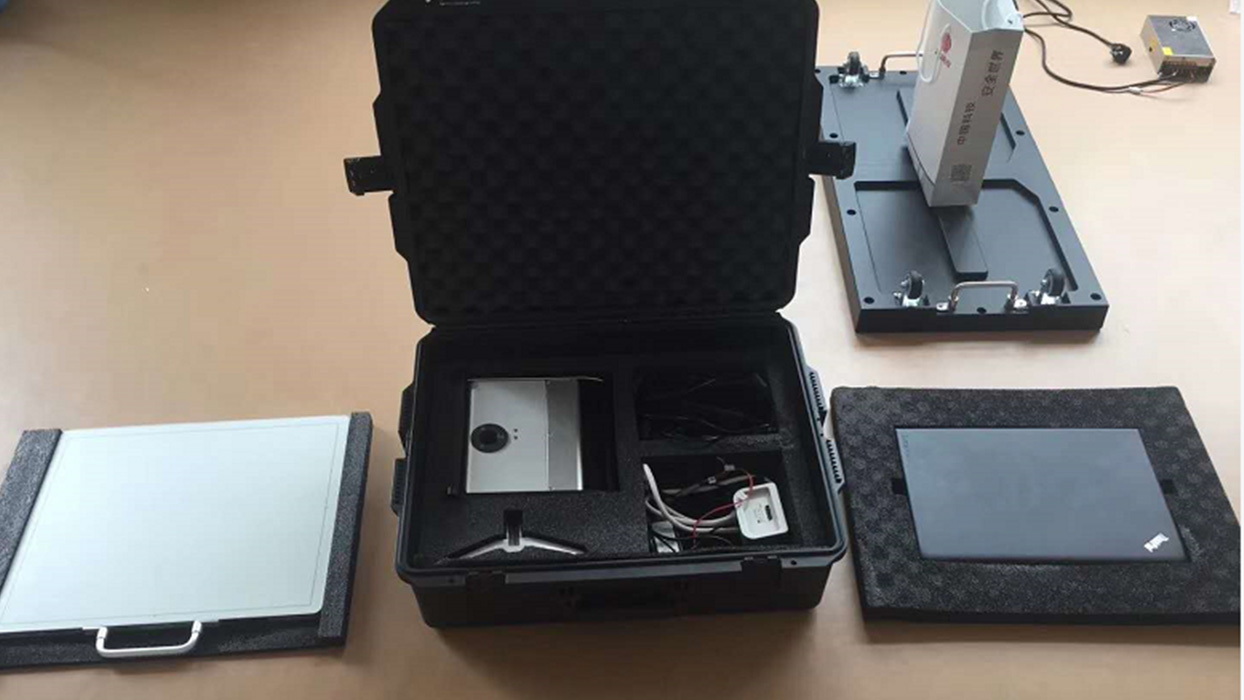

Site Photos
