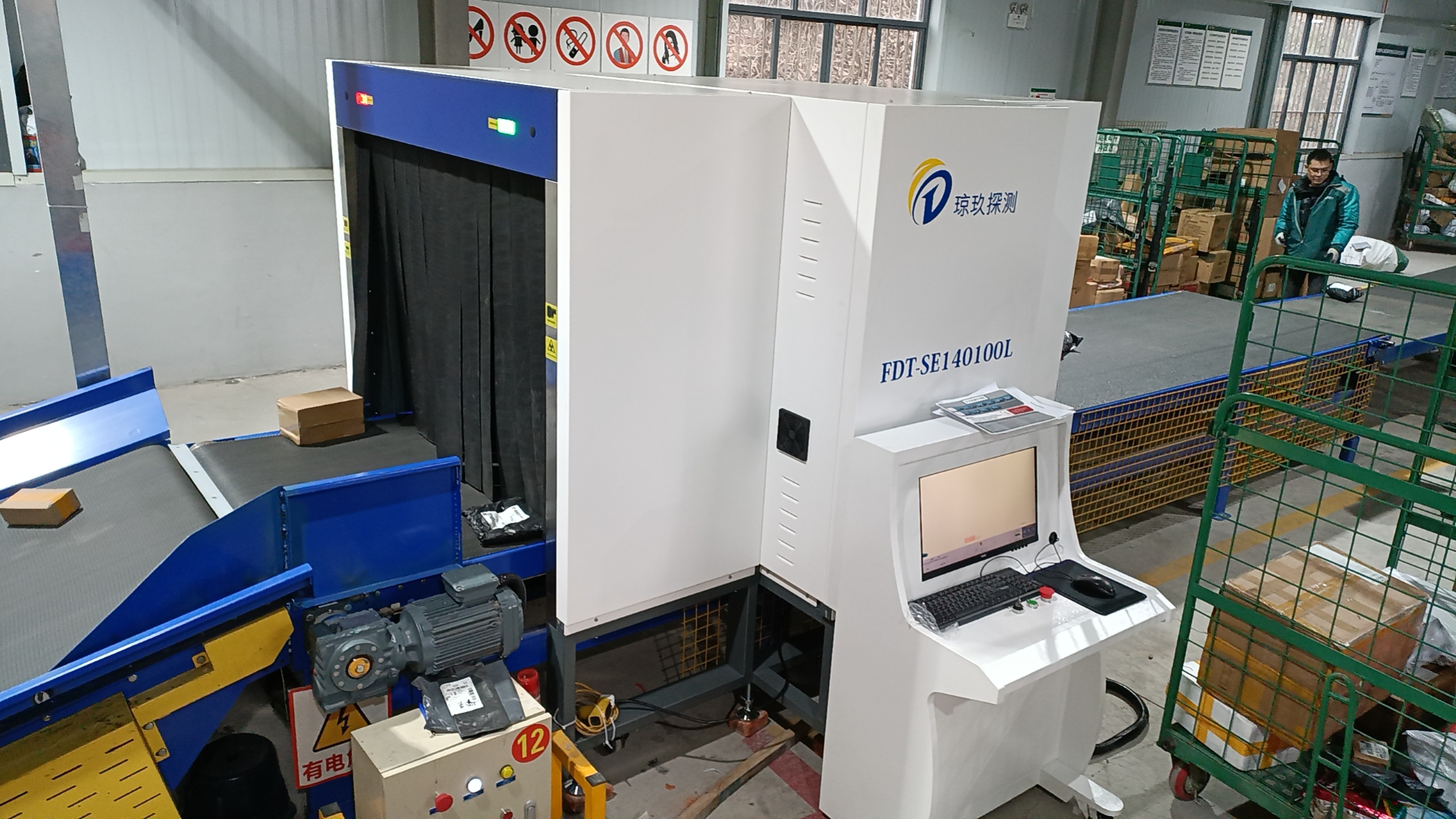

Side-View Cross-Band X-ray Safety Inspection Equipment FDT-SE140100
Fjade's FDT-SE140100L side lighting gantry (cross-belt) security inspection machine is a professional express line inspection of controlled dangerous goods safety testing equipment. The product adopts the principle of side-irradiation X-ray imaging: the detected items on the conveyor belt of the sorting line pass through the security inspection machine, the detection system receives them, the photoelectric conversion/analog-to-digital conversion/capacitor integration, and the imaging software for security inspection. The gantry (cross-belt) security check machine is designed to prevent radiation leakage, and the leakage is close to the air background to ensure the health of the operato.

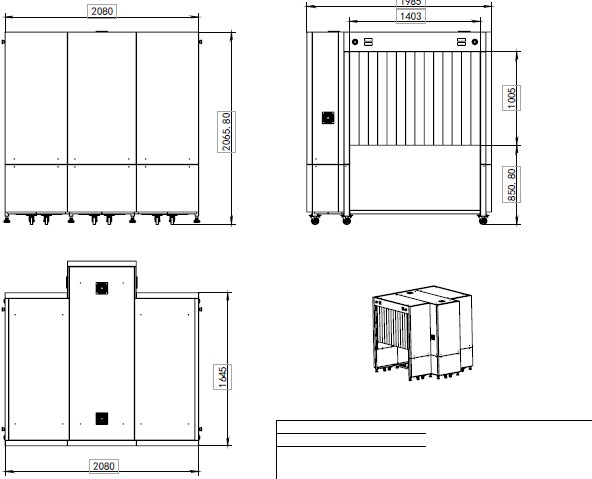

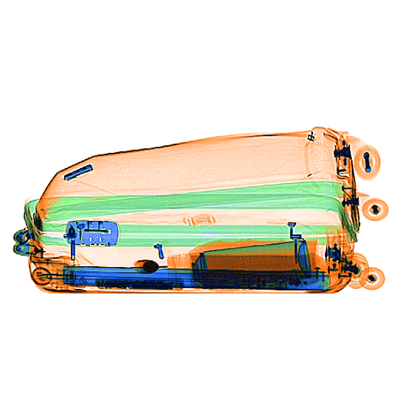

Packet drawing of a standard machine (side view)

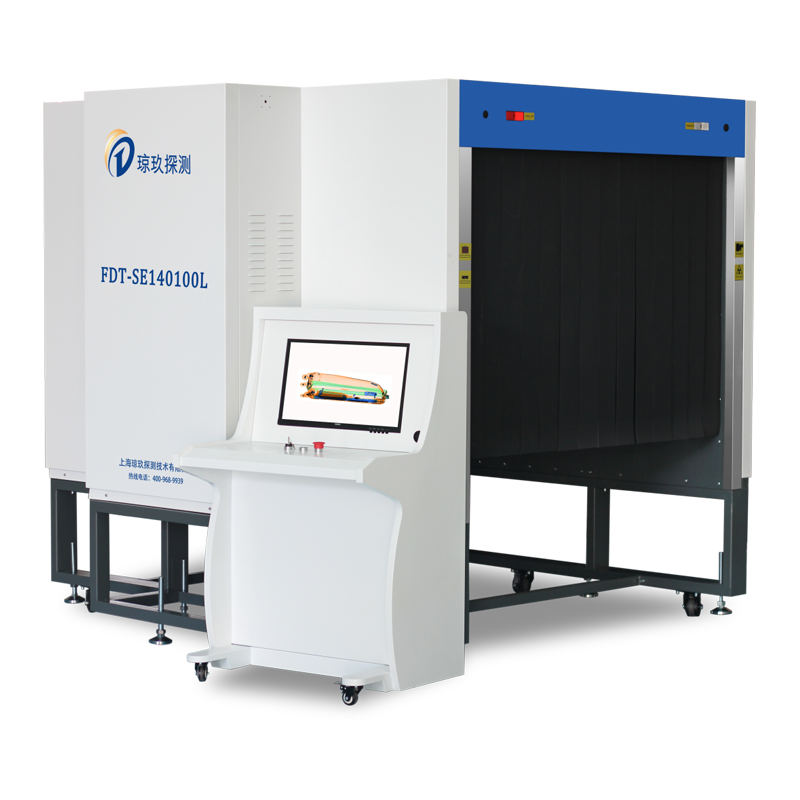

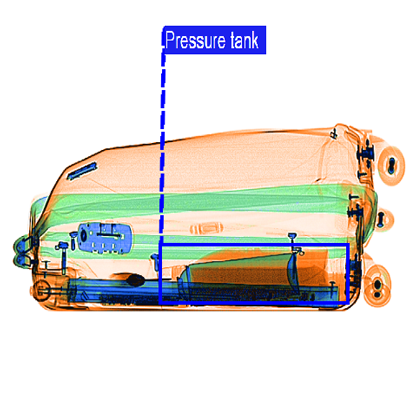

The packet map after installing AI judge map and liquid recognition function
General Specifications
Dimensions: 2080mm(L)×1985mm (W)×1660mm(H)
Tunnel size: 1405mm (W)×1005mm (H)
Suitable transmission speed: 0.20-0.7m/s
Suitable for conveyor belt height: 700mm-900mm
Weight: 1005Kg
Storage temperature / humidity:
-40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.8kVA
Basic Specifications
Penetration: 34mm Steel Plate(140kV)38mm Steel Plate(160kV)
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.0mm vertica Ф1.0mm
Through rate:720pcs/h
Dose per check:≤2.6μGy
Leak radiation dose rate:＜0.5μGy/h
Noise: 54dB（A）
X-ray Generator
Generation direction: Side-Side
Tube voltage: 140~160kV Adjustable
Tube current: 0.4~1.2mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °
Image processing system
X-ray sensor:Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green.
Display:24 "Philips HD LCD display
Feature
Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.
Auxiliary function
One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.
Extended function
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.
Quality
● International brand electrical components.
● Industrial PLC circuit control, electromagnetic compatibility special requirements.
● Capacitor integral analog-digital conversion, the image is clear and subtle.
● Industrial computer, the system is stable and reliable for a long time.
● Human engineering principle reading system, anti-fatigue.
● Radiation protection: close to air background.
Size Specification

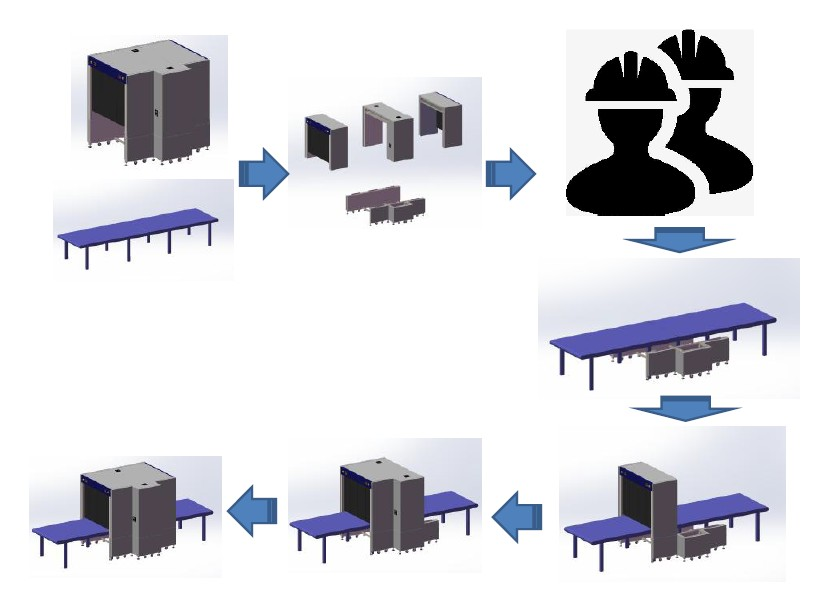

Installation flow diagram of the straddle type security inspection machine:

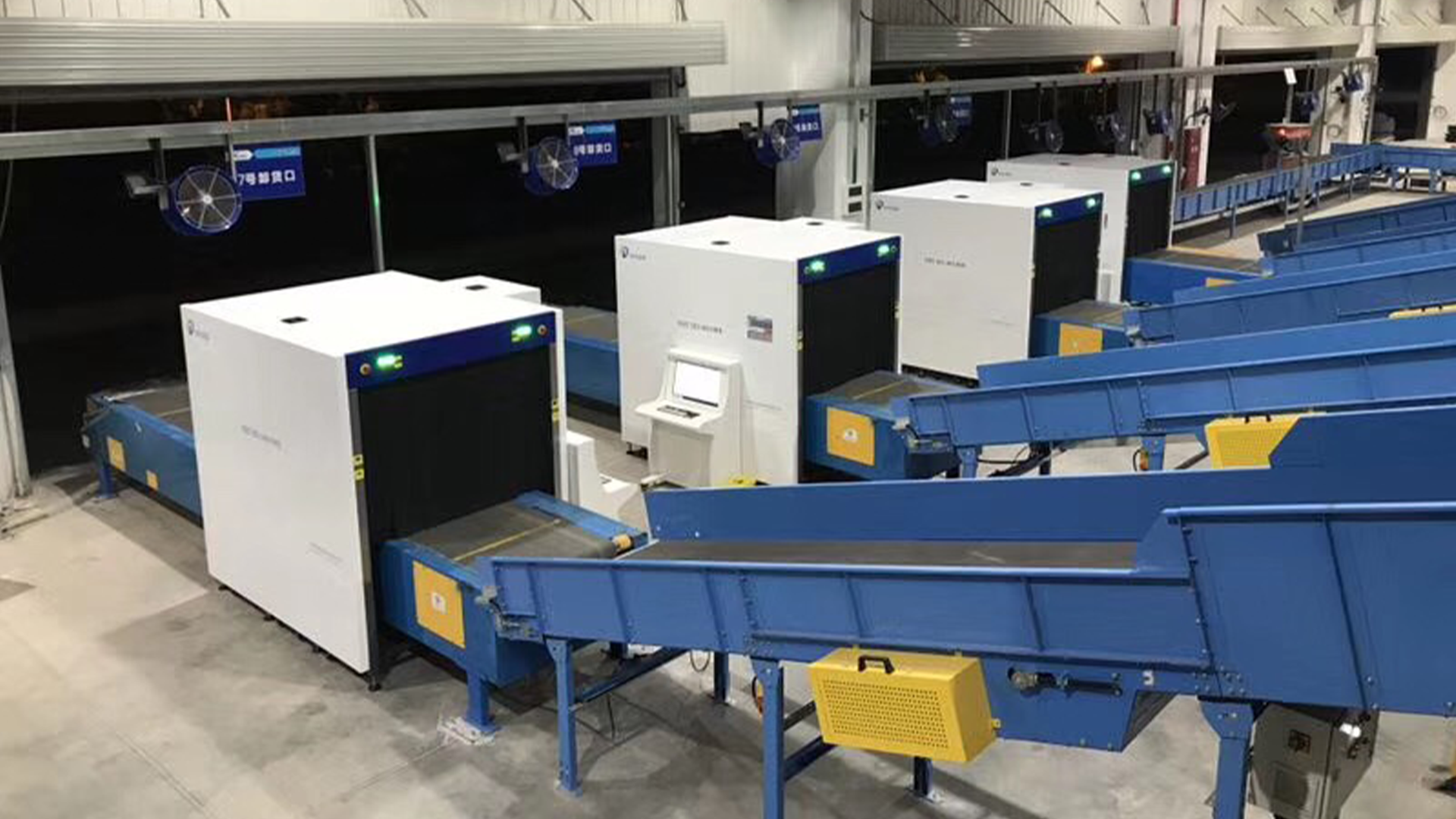

Case display
