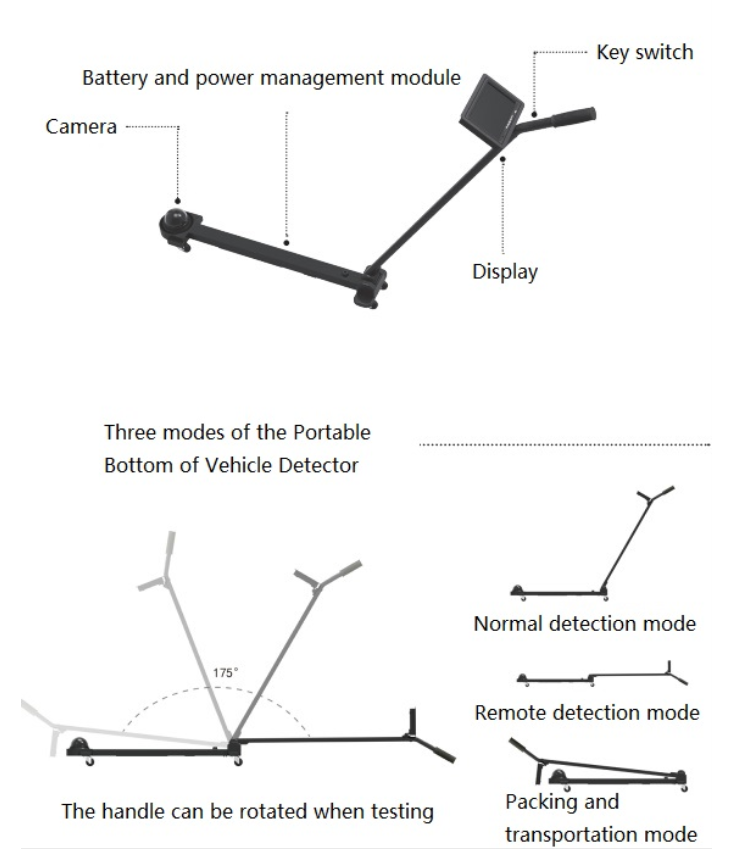

Portable Bottom of Vehicle DetectorFDT-VD16
Portable Bottom of vehicle Detector is mainly used to inspect the bottom of the vehicle and determine whether there are suspicious, dangerous explosives or personnel hidden in the bottom of the vehicle, and whether the overall structure of the bottom of the vehicle has been illegally altered. It can also be used for safety inspection of the bottom of tables, chairs, beds, file cabinets and can also be made for other places inconvenient for human body such as platforms, pipes, shafts, pipes, dark boxes and bushes at high altitudes.
Performance parameter
● One-chip computer special power supply charge-discharge technique guarantees the reliability of power supply.
● Maximum horizontal obliquity 55 degrees, minimum horizontal obliquity 22.5 degrees
● Operating conditions temperature: -20℃ ～ +60℃
● Rotational speed: Horizontal about 12 degrees per second.
● Focal length:3.6mm
● Focal segment: wide angle
● Sharpness: 600-line, 1/3 SONY CCD infrared image sensor, high definition with infrared night vision function
● Basic function: The remote control controls the camera to rotate left ，right, automatically rotate and stop.
● Operating-current: 400mA
● Display: Color 7 inch
● Display resolution: 800*480（RGB）
● Start-up time: ≤1.0s
● Language: Chinese/English
Basic parameters
Developed length: 1780mm
Folding Length: 1020mm
Product dimensions: 1020*180*280mm
Product package dimensions: 1050*210*310mm
Product weight：3.4 KG
Battery capacity：5200AH
Operating voltage： 9-12.6V
Power：6800mW
Continuous operating time：8 hours
Application places
his product is ideal for inspecting automobiles, machines, warehouses, schools, factory equipment or other areas where direct viewing is difficult and is made for airport safety inspection, parking inspection, military area inspection, personal car inspection and so on. We have provided the corresponding types of inspection mirror products for Multi-boundary regional games, important meetings, local police stations, high-end hotels and large factories.
