Overhead Cross-Band X-ray Safety Inspection Equipment FDT-SE140100TL
Fjade's FDT-SE140100TL overhead (cross-belt) security inspection machine is a professional express line inspection of controlled dangerous goods safety testing equipment. The product adopts the principle of side-irradiation X-ray imaging: the detected items on the conveyor belt of the sorting line pass through the security inspection machine, the detection system receives them, the photoelectric conversion/analog-to-digital conversion/capacitor integration, and the imaging software for security inspection. The gantry (cross-belt) security check machine is designed to prevent radiation leakage, and the leakage is close to the air background to ensure the health of the operato.

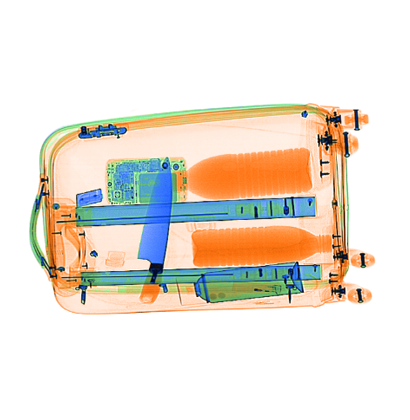

Packet drawing of a standard machine

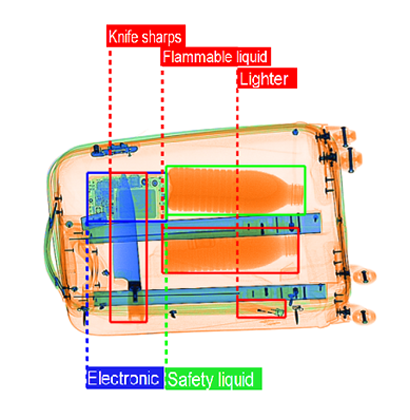

The packet map after installing AI judge map and liquid recognition function
General Specifications
Dimensions: 2180mm(L)×1741mm (W)×2227mm(H)
Tunnel size: 1405mm (W)×1005mm (H)
Suitable transmission speed: 0.8-2.2m/s optional (low, medium and low, high speed price range)
Suitable for conveyor belt height: 700mm-900mm
Weight: 1005Kg
Storage temperature / humidity:
-40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.8kVA
Basic Specifications
Penetration: 40mm Steel Plate
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.0mm vertica Ф1.0mm
X-ray Generator
Generation direction: Top-Bottom
Tube voltage: 170~200kV Adjustable
Tube current: 0.8~2.5mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °
Image processing system
X-ray sensor:Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green.
Display:24 "Philips HD LCD display
Feature
Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.
Auxiliary function
One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.
Extended function
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.
Quality
● International brand electrical components.
● Industrial PLC circuit control, electromagnetic compatibility special requirements.
● Capacitor integral analog-digital conversion, the image is clear and subtle.
● Industrial computer, the system is stable and reliable for a long time.
● Human engineering principle reading system, anti-fatigue.
● Radiation protection: close to air background.

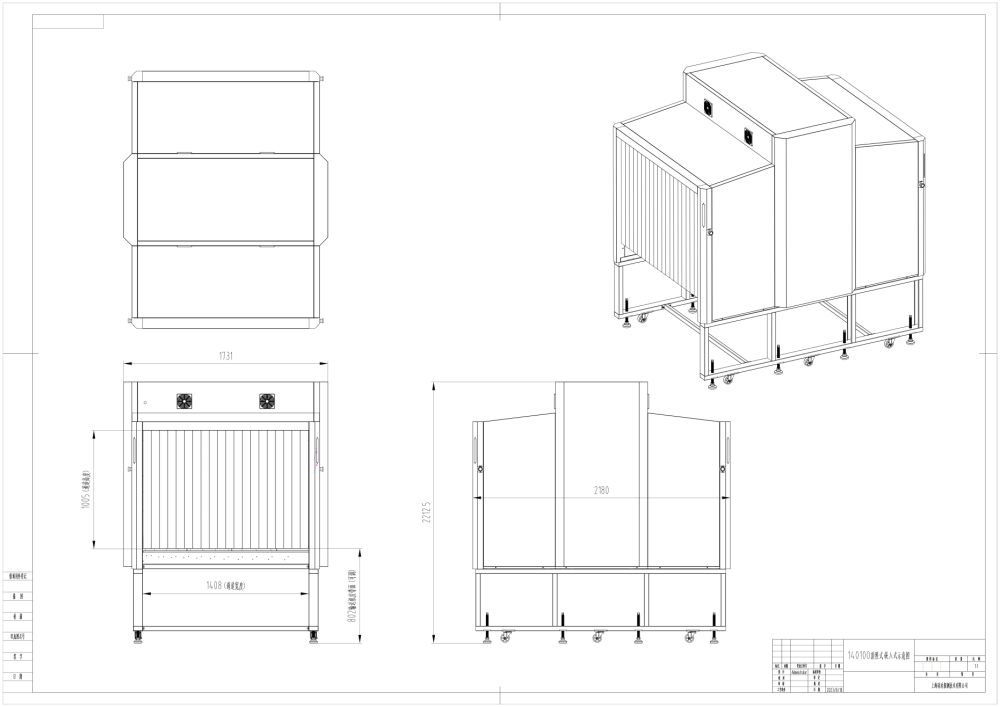

Size Specification

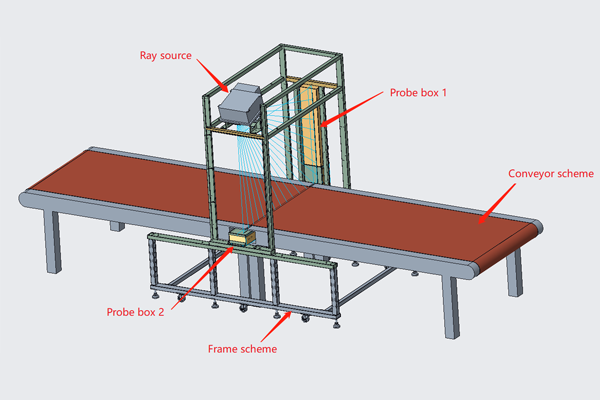

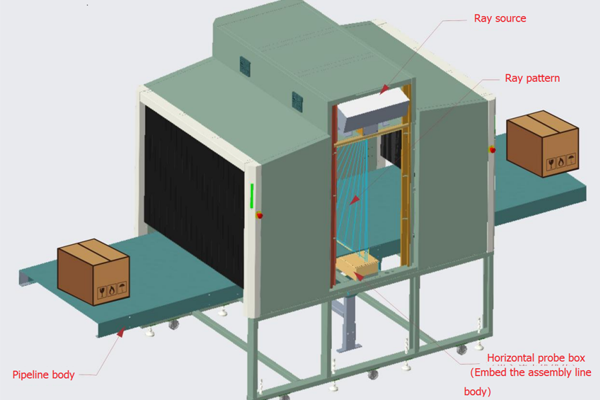

Installation flow diagram of cross-belt security inspection machine

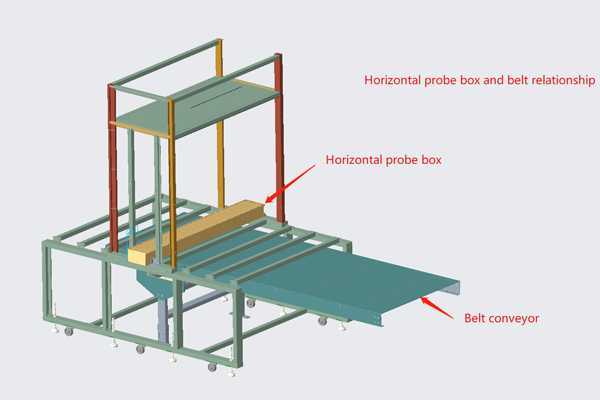

1）Embedded installation: the transmission line is cut 20mm thin slit, the X-ray receiving box is placed between the upper and lower layers of the conveyor belt, the transmission line is smooth, the package is smooth, the disadvantage is that the first installation construction is difficult.

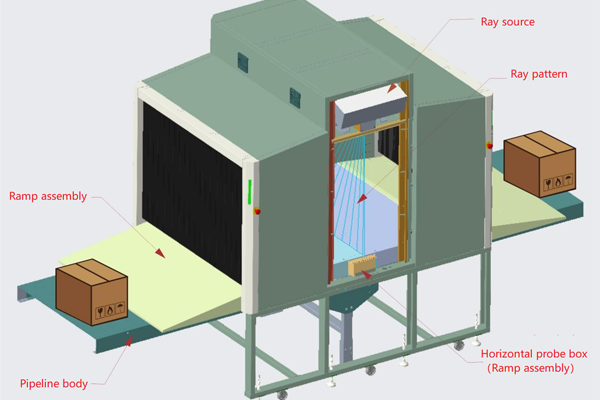

2）Climbing installation: the ramp type top gantry machine is the second best choice for the assembly line body, when the assembly line body has begun to run, or the assembly line body design scheme can not meet the receiving box, the ramp type embedded assembly line body is a good program, the program does not need to change the assembly line iron bracket, just extend the conveyor belt, fast installation, still achieve the image of the top light security inspection machine.

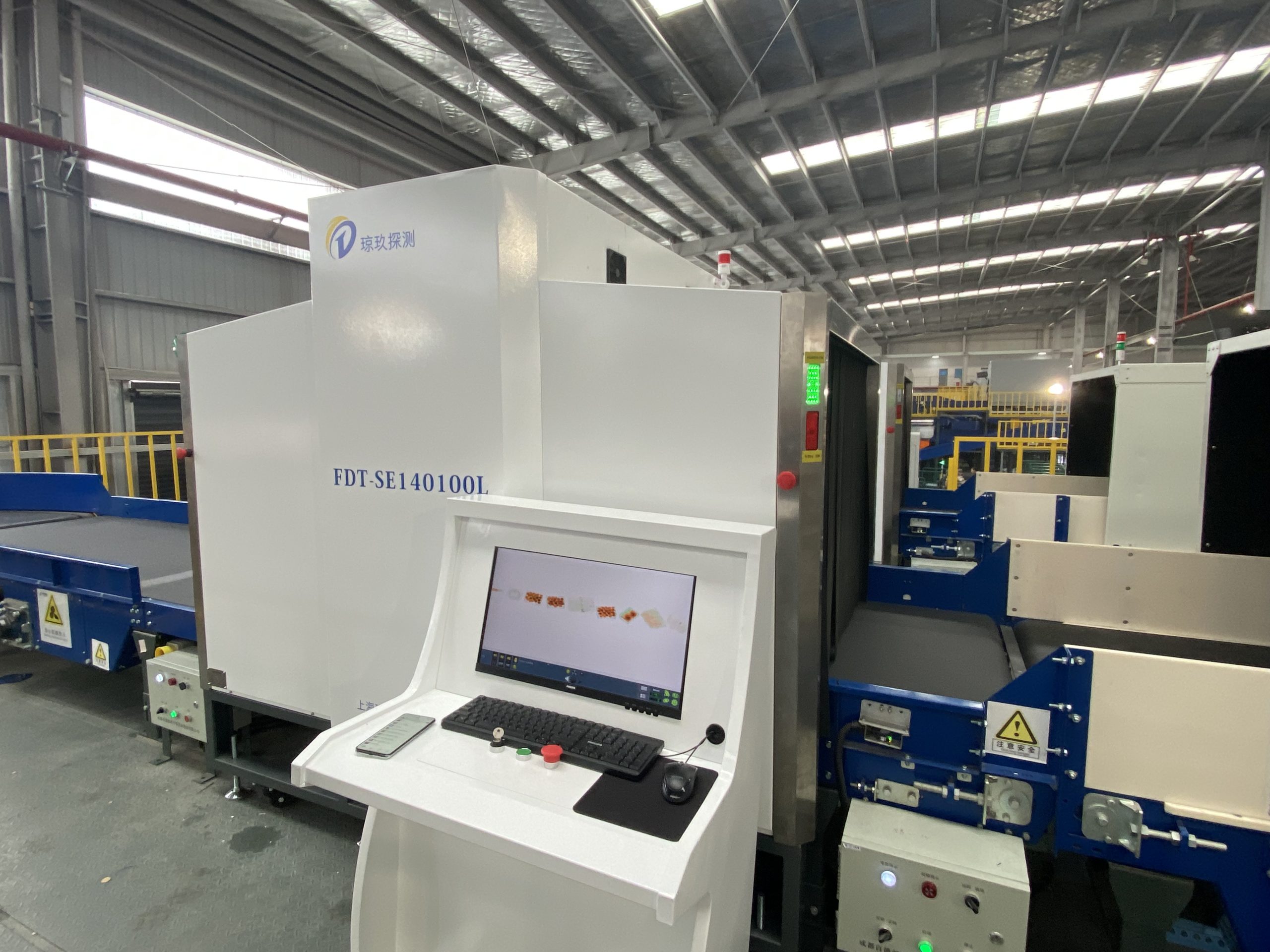

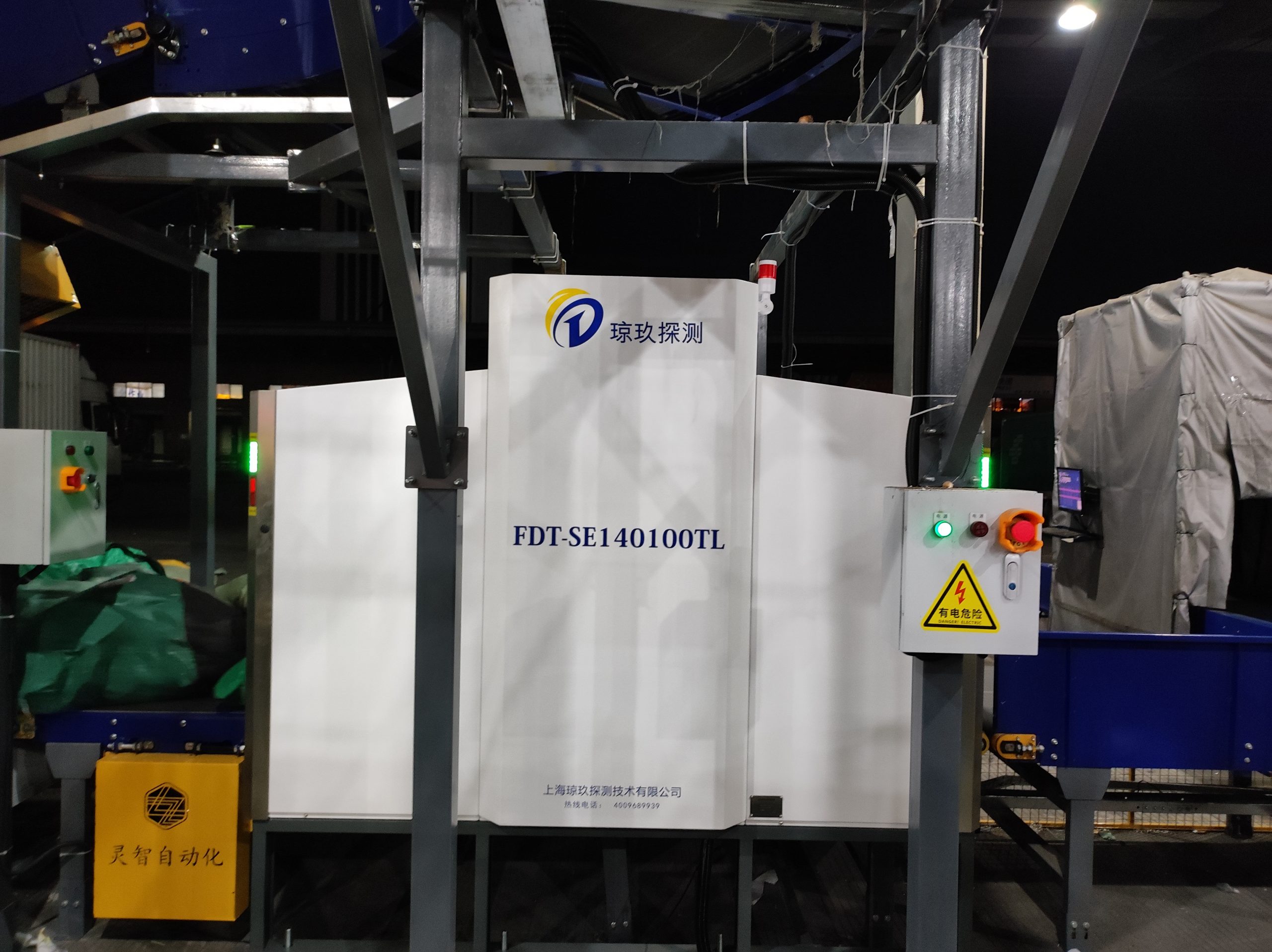

Case display
