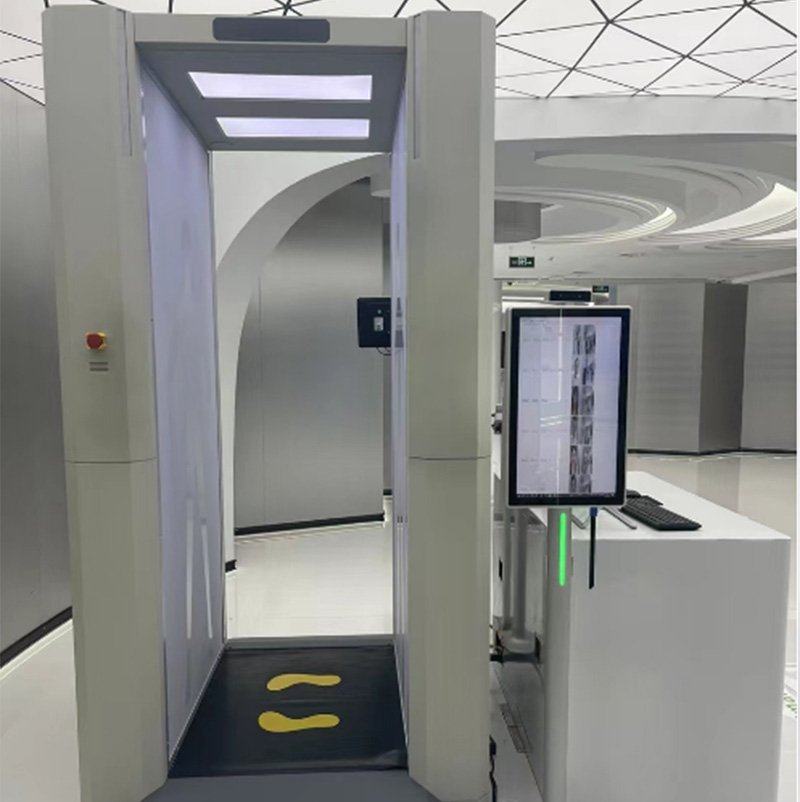

RN-SI-P201 Millimeter-wave Body Imaging Security equipment (referred to as "Equipment") is a new type of body security equipment. The device uses active imaging technology, uses electromagnetic waves that are safe and harmless to the human body, carries out full-body scanning on the human body in a non-contact way, and generates high-definition human body images. At the same time, the device has an automatic detection function, which can quickly and accurately automatically locate all kinds of metal and non-metal suspect items hidden under human clothing, such as guns, knives, explosives, lighters, liquids, electronic products.
Technical characteristics
Wide range of detection

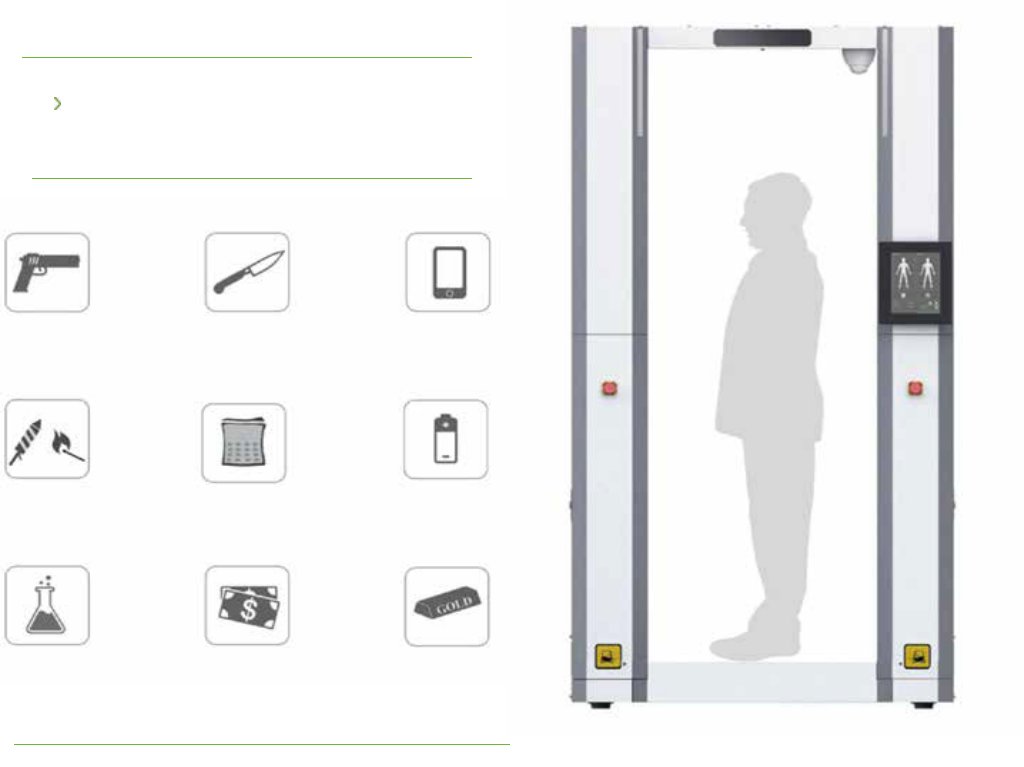

Can detect a variety of suspected items, including: metal/non-metal knives, guns and ammunition, explosives, ceramics, liquids, banknotes, plastic products, gels, powders, electronic products and other types of dangerous prohibited items.
High definition slicing imaging
The advanced holographic millimeter wave imaging technology can provide high resolution layered slice image, and provide false color image to enhance image readability.
High detection efficiency
Adopts channel door design, non-contact scanning imaging, no need to strip, complete the whole body inspection within 2 seconds.
Image processing and storage
1. With image contrast adjustment, brightness adjustment, image reverse color and more than 4 times image magnification processing functions, easy to judge the image efficiently.
2. Support the storage of no less than 10,000 images and results of the detected personnel.
3. It has the function of automatically deleting images beyond the storage time.
Suspect items are automatically identified and reported to the police
1.It has the function of intelligent graph judgment based on deep learning, which can quickly analyze the imaging results and accurately locate suspected items
2.The location of contraband can be shown in the intelligent judgment mode
3.Manual drawing judge mode can provide drawing judge assistance
Safe and harmless
No ionizing radiation, no radiation damage to the body.
Privacy protection and confidentiality
1. When manually judging images, it supports the assignment of images to different remote judging workstations according to gender, and is equipped with image face blurring function.

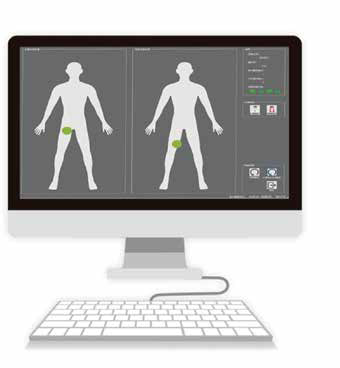

2. The imaging detection results of artificial and intelligent graph judging are displayed through the doll image identification.
3.Provide hierarchical user management, only authorized personnel can retrieve and view image information.
Easy maintenance
1. The equipment adopts modular design, convenient disassembly, easy maintenance and replacement
2. The device has a network communication interface, which can be networked to monitor the device status in real time
3. The device has the self-diagnosis function. When a fault occurs, the fault code can be used to quickly locate the problem
Fast and flexible deployment
1. Supports single-device deployment mode and multi-device deployment mode
2. Support manual and intelligent graph judging mode. The optional structure design is exquisite, the floor area is small, and it can be directly used in the existing security inspection channel without modification
3. Equipped with mobile device, the whole machine can be quickly deployed
Technical parameters and dimensions
Image processing
1.Image processing function manual judgment, automatic recognition, privacy protection, contrast adjustment, brightness adjustment, black and white inversion, local amplification, false color, layered display, etc.
2.Image storage back check for image storage in a specific format, historical image playback.
3.Image confidentiality requires authorized personnel to retrieve and view image information.
Universal index
| Detection mode | Non-contact mechanical scanning |
| Single scan | ≤ 2s |
| Through rate | ≥480 persons/hour |
| Line resolution | ≤2 mm |
| Spatial resolution | ≤5 mm |
| Height of the person tested | ≤2.1 m |
Dimensions
| Equipment size | 2398 mm (H) X 1261 mm (W) X 1383 mm (D) |
| Channel size | 2150 mm (H) X 750 mm (W) X 1195 mm (D) |
| Weight | < 600 kg |
| Power supply | Ac single-phase, 220 volts (-15% to +10%), 50/60 Hz ±3 Hz |
| Power dissipation | 1.5 kVA |
