Intelligent Detection Security Gate (Weapons Inspection Gate)FDT-WT100Ai
Applicable to
1. For the control of knives/sharp/blunt instruments accurate detection of the alarm, but personal items, keys, watches, mobile phones do not alarm the application.Public security stations, procuratorates, courts, prisons, high-speed railway stations, subway stations, bus stations, hospitals, museums, memorials, libraries, art galleries, science and technology museums, embassies, government agencies, petition offices, arbitration institutions, etc
2. For mobile phones, pipe products detected alarm, but keys, watches, portable small metal trinkets do not alarm the application place，Schools, data centers, secret-related units, scientific research units, large enterprises/advanced enterprises R & D building, production centers, well-known OEM enterprises, food processing enterprises production sites, precision processing enterprises production centers.
3. Accurate alarm for mobile phones, digital products, belt buckles and other portable small items do not alarm the application place，National/provincial/city/county standardized test rooms, call data centers, national secret units.
Basic Principle
The intelligent security gate is based on physical properties such as eddy current effect of electromagnetic field and induction of electromagnetic field amplitude when the magnetic field line is moving in metal cutting: different sizes and different properties of metals produce different eddy currents and amplitudes under the same field strength.
During the inspection work, the background data of the normal magnetic field emitted by the security gate is collected, and the changes of the electromagnetic field during the passage of the personnel are compared. The multi-dimensional data such as different power amplitude, power phase, and frequency are obtained under the analysis and calculation of the high-performance and highly integrated processing chip, and the latest AI intelligent algorithm is continuously updated to obtain the metal material properties, size and shape carried by the inspected personnel. Intelligent classification and identification of the carried metal attributes are:The results of classification and judgment are output to the display screen, stored in the background, and issued a light and sound alarm.
Controlled Item: Weapons, sharp objects, blunt objects, firearms, high-pressure tanks
Daily items: small metal, small accessories, keys, watches.
Daily items: small metal, small accessories, keys, watches.
Function Parameter

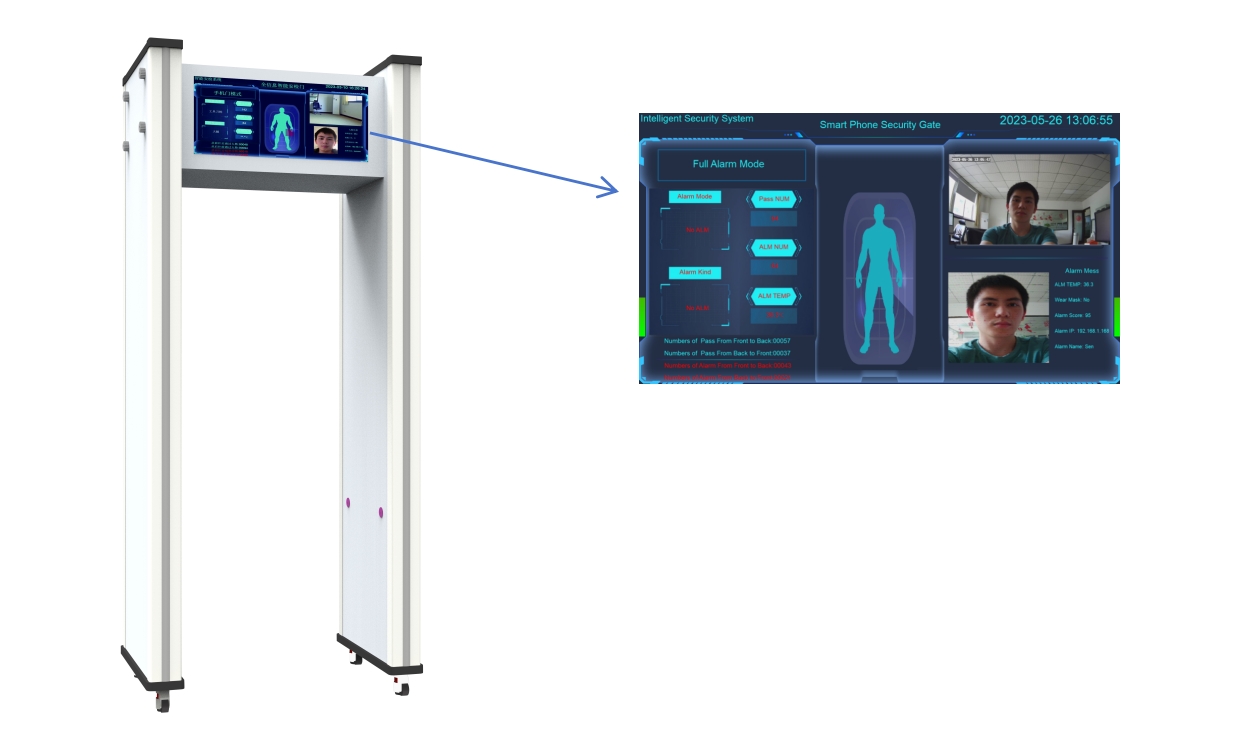

1. Equipped with 29 inch LCD screen, can display alarm category, alarm location, through the number of people, alarm number, face capture, body temperature and other types of information, and can be adjusted by remote control equipment parameters and other functions.
2. Configurable infrared thermal imaging non-sensing temperature measurement; Non-contact non-inductive temperature measurement, temperature range 30-50℃, temperature measurement accuracy: ±0.3.
It can support the function of face entry and comparison, and the alarm function of strangers breaking into specific areas.
3. Configurable: When contraband is detected: alarm scene and face capture, photo storage, query.
4. Reserved peripheral interface: linkage with the gate or output switching quantity,
5. Equipped with movable casters for easy movement.
6. External power supply: 220V; Frequency: 50/60HZ;
7. Dimensions: Approx. ≥2400 mm (H)×1060mm (W)×600 mm (D)
8. Channel size: channel height ≥2000mm, channel width ≥800mm.
9. Weight: About 130 kg.

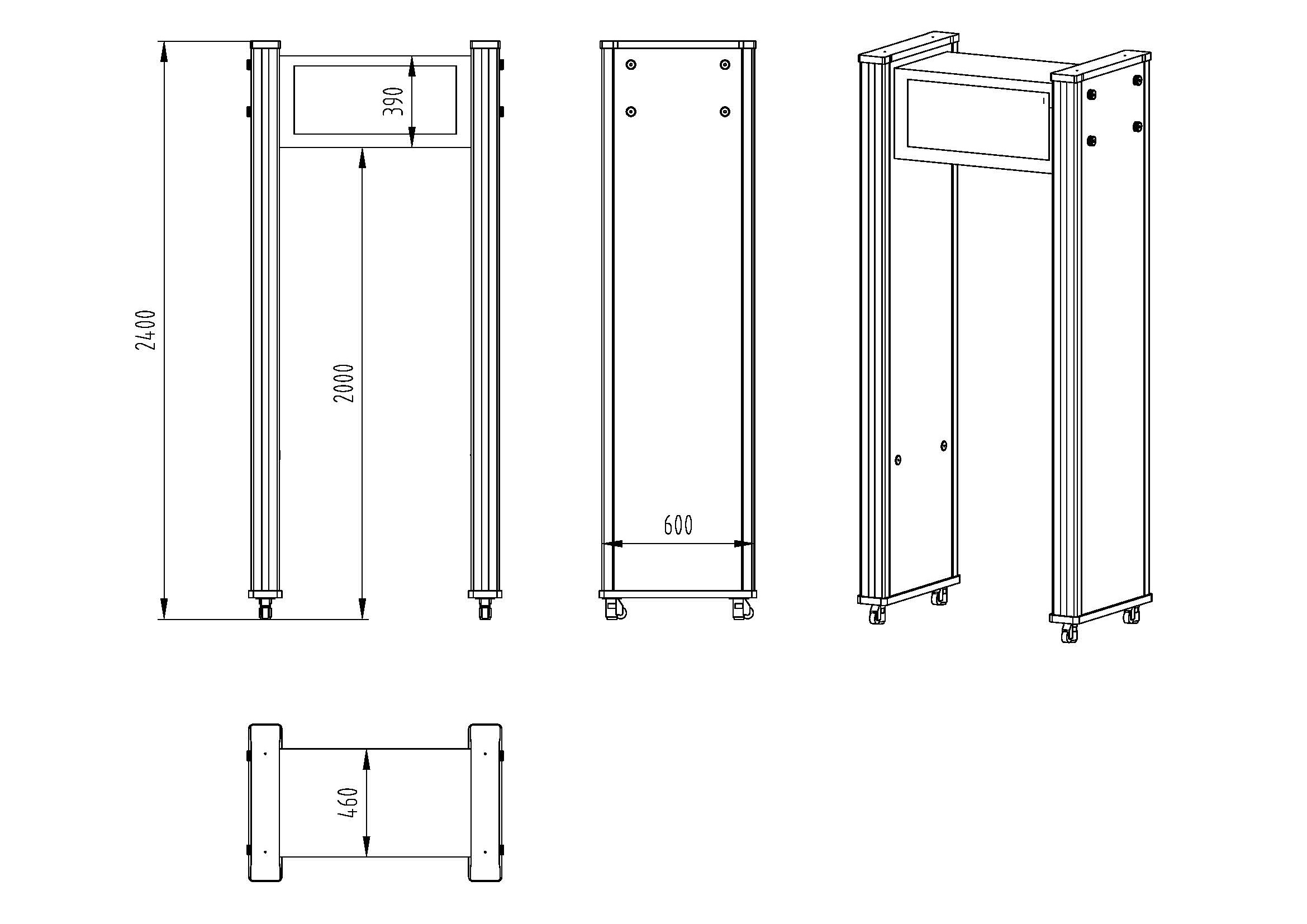

Dimension

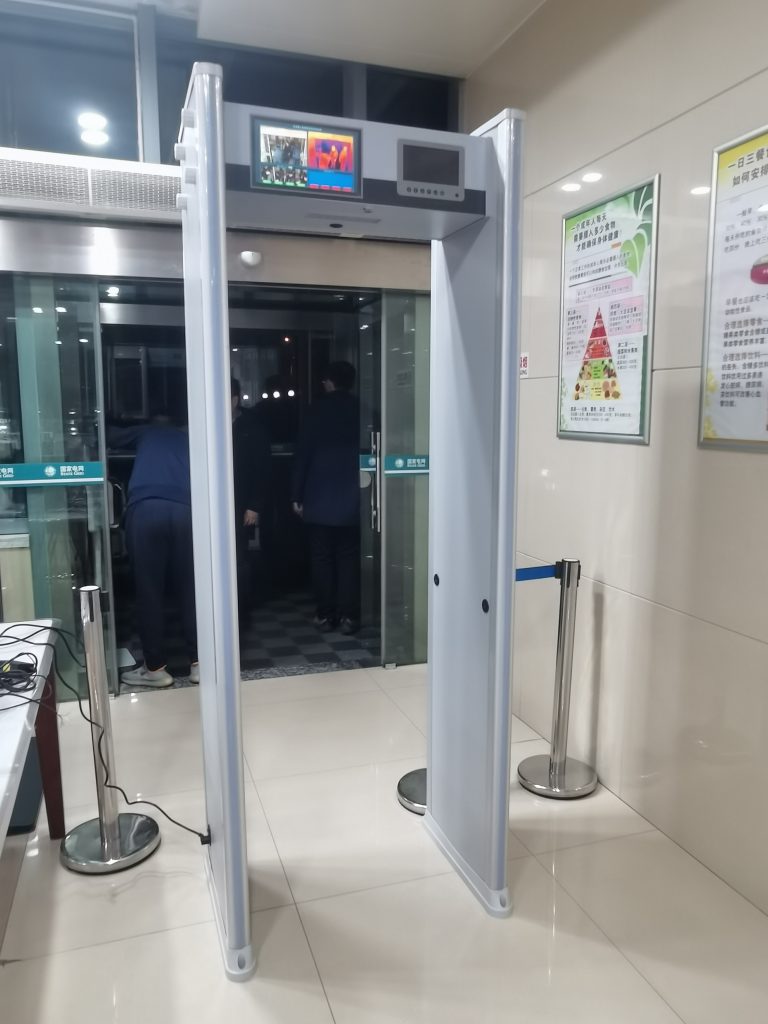

Case display
