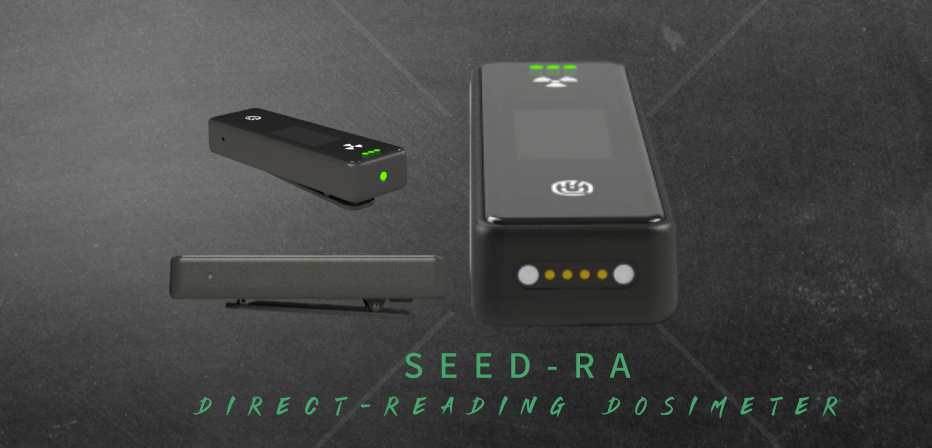

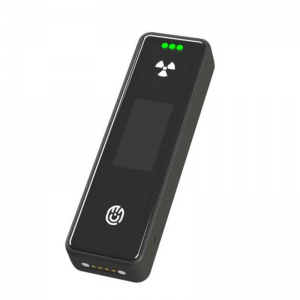

Direct-Reading Dosimeter
Product Profile
Direct-reading dosimeter is mainly used for nuclear medicine or related radiation workers. It can effectively monitor the radiation dose of the body in order to detect the radiation dose exceeding the standard in time and is an important guarantee to ensure the safety of the workers exposed to radiation.
Direct-reading dosimeter can display the measurement data synchronously in real time, support the user to view the change of dose value and dose rate of the radiation at any time, and change the passive record of radiation into active management.Provides basic data for low dose radiation health research and is an important component of Sin-cere intelligent radiation safety management platform.
SIPM of scintillating crystals are used in the instrument to achieve high sensitive detection performance at wearable size level. The instrument can detect weak radiation changes in the natural environment and quickly respond to dangerous situations.
Functional characteristics
● Small and light, beautiful appearance, the smallest personal dose alarm on the market.
● SiPM scintillation detector is used to realize high sensitivity detection performance at wearable size level, which can detect weak radiation changes in natural environment and respond quickly to dangerous situations.
● Bluetooth wireless data transmission, through the mobile phone app can query the real-time radiation dose and cumulative total radiation dose.
● Ultrasonic integrated fuselage technology, IP67 level to achieve waterproof and dustproof.
● Sound, light, mobile phone alarm mode.
● Low power design, standby time more than 80 hours.
Technical specifications
| Type of detector | Scintillating crystals+SiPM |
| Range of dose rates | 0.01μSv/h ～ 100mSv/h |
| Energy range | 35keV~3MeV |
| Relative inherent error | ≤ ±15％ |
| Alarm mode | Sound, light, cell phones |
| Power supply time | Battery working longer than 80 hours, rechargeable |
| Mode of communication | BlueTooth |
| Weight | ≤60g |
| Protection level | IP67 |
| Working temperature | -20℃～ 55℃ |
| Relative humidity | ≤ 95% |
-
